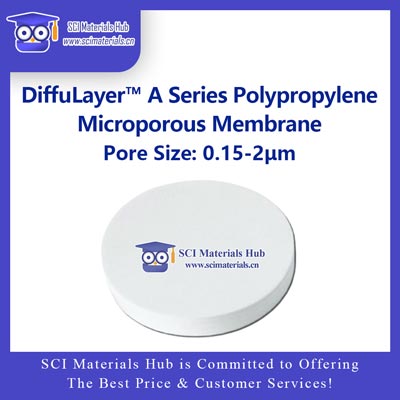

The DiffuLayer™ A Series PP Microporous Membrane is made of food-grade isotactic polypropylene (PP) superfine fibers through a thermal bonding process, without any chemical additives. It is a depth-type filtration material with a uniform pore structure, high mechanical strength, and large porosity. The membrane provides excellent chemical resistance, thermal stability, and high flow rate, making it ideal for applications in pharmaceuticals, biotechnology, chemicals, food and beverage processing, and gas purification.
Safe and Non-toxic: Made from high-purity polypropylene with no additives; suitable for pharmaceutical and food-grade use.
Excellent Chemical Resistance: Resistant to acids, alkalis, and most organic solvents (except benzene and xylene).
Superior Thermal Stability: Withstands autoclaving at 121°C for 30 minutes; normal operation ≤80°C (special grades up to 100°C).
Robust and Clean Structure: High mechanical strength; no fiber shedding or particle release, ensuring no secondary contamination.
Depth Filtration Efficiency: High porosity, fast flow rate, and low pressure drop—ideal for viscous or particulate-rich liquids.
Long Service Life: Backwashable and reusable; filtration precision improves over time.
Good Wettability: Suitable for both liquid and gas filtration; especially efficient in gas purification applications.
| Parameter | Description |
|---|---|
| Material | Isotactic Polypropylene (PP) |
| Pore Size Range | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.8 / 1 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 μm |
| Porosity | High-porosity structure for high throughput |
| Thickness | 0.18–0.35 mm (customizable) |
| Operating Temperature | ≤80°C (short-term up to 100°C) |
| Sterilization | 121°C steam 30 min, 134°C steam 30 min, EO or radiation |
| Flow Test | Pure water, 0.1 MPa, turbidity ≤3 NTU |
| Bubble Point Test | Test medium: anhydrous ethanol |
Circular Discs: Ø13–Ø800 mm (custom sizes available)
Square Sheets: 200×200 mm, 300×300 mm, 400×400 mm, 500×500 mm, 600×600 mm
Other shapes and dimensions can be customized upon request.
Pretreatment: Immerse the PP membrane in distilled water or 70% ethanol for several minutes to fully wet the surface.
Installation: Place the wetted membrane into a suitable filter holder and ensure a tight seal.
Filtration: Use vacuum filtration or pressurized gas for faster flow.
Cleaning & Reuse: The membrane can be backflushed after use to extend service life.
Compatible with steam sterilization (121°C / 30 min), radiation, and ethylene oxide sterilization.
Maintains structural integrity after repeated sterilization cycles.
Chemically resistant to most acids, alkalis, and organic solvents—suitable for a wide range of filtration media.
Pharmaceuticals: Prefiltration of injectables, oral solutions, and antibiotics.
Chemical & Bioprocessing: Filtration of viscous liquids and process clarification.
Food & Beverage: Filtration of alcoholic beverages, water, syrups, and dairy products.
Laboratory: Sterile filtration of aqueous solutions, air and gas filtration.
Industrial: Prefiltration of plating baths, oils, and cleaning solutions.
| Pore Size (μm) | Product Code |
|---|---|
| 0.15 | PP-A0.15 |
| 0.22 | PP-A0.22 |
| 0.3 | PP-A0.3 |
| 0.45 | PP-A0.45 |
| 0.65 | PP-A0.65 |
| 0.7 | PP-A0.7 |
| 0.8 | PP-A0.8 |
| 1.0 | PP-A1 |
| 1.2 | PP-A1.2 |
| 1.6 | PP-A1.6 |
| 2.0 | PP-A2 |
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
📑 DiffuLayer™ A Series Polypropylene (PP) Filter Membranes — Price List
| Filter Diameter | Package Quantity | Price (USD) | Available Pore Sizes (μm) |
|---|---|---|---|
| 25 mm | 80 sheets/box | $24 | 0.3 / 0.45 / 0.8 / 1 / 1.2 / 2 / 3 / 5 / 8 / 10 / 15 / 20 |
| 47 mm | 25 sheets/box | $24 | 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.8 / 1 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 |
| 50 mm | 25 sheets/box | $24 | 0.22 / 0.45 / 0.8 / 1 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 / 40 / 50 |
| 60 mm | 50 sheets/box | $40 | 0.22 / 0.45 / 0.8 / 1 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 / 40 / 50 |
| 70 mm | 25 sheets/box | $40 | 0.22 / 0.45 / 0.8 / 1 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 / 40 / 50 |
| 80 mm | 25 sheets/box | $40 | 0.22 / 0.45 / 0.8 / 1 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 / 40 / 50 |
| 90 mm | 25 sheets/box | $40 | 0.22 / 0.45 / 0.8 / 1 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 / 40 / 50 |
| 100 mm | 25 sheets/box | $30 | 0.22 / 0.45 / 0.8 / 1.2 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 / 40 / 50 |
| 110 mm | 25 sheets/box | $30 | 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.8 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 |
| 140 mm | 25 sheets/box | $40 | 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.8 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 |
| 150 mm | 25 sheets/box | $50 | 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.8 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 |
| 200 mm | 50 sheets/box | $100 | 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.8 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 |
| 300 mm | 50 sheets/box | $120 | 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.8 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 |
| 400 mm | 50 sheets/box | $180 | 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.8 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 |
| 600 mm | 50 sheets/box | $360 | 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.8 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 / 15 / 20 |
