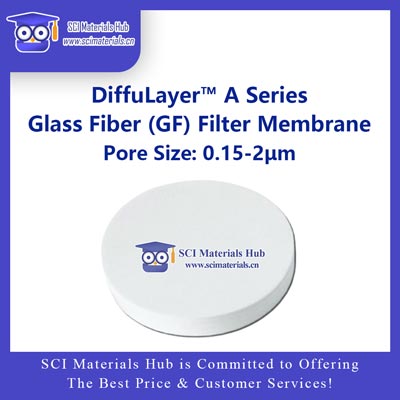

🧪 DiffuLayer™ A Series Glass Fiber (GF) Filter Membrane
Product Overview
DiffuLayer™ A Series Glass Fiber Filter Membranes are made from 100% borosilicate glass fibers using a proprietary process. The unique capillary fiber network provides exceptionally high surface area, enabling the membrane to absorb more liquid than cellulose filters of equivalent thickness. The material is non-hygroscopic, biologically inert, and highly resistant to most chemicals (except hydrofluoric acid and concentrated acids/alkalis), offering outstanding performance across a wide range of filtration and analytical applications.
🌟 Key Features
Capillary fiber structure: Ensures high liquid absorption and particle capture efficiency, providing fast filtration speed and high flow rate.
Excellent chemical resistance: Stable against acids, alkalis, and most organic solvents.
High mechanical strength and thermal resistance: Suitable for continuous use up to 100°C.
Biological inertness and low background radioactivity: Ideal for radiological and biological analysis.
Transparency after processing: Can be rendered fully transparent for microscopic examination.
⚙️ Technical Specifications
| Parameter | Description |
|---|---|
| Material | Borosilicate glass fiber |
| Maximum operating temperature | ≤100°C |
| Chemical compatibility | Resistant to most solvents and reagents (except HF and concentrated acids/alkalis) |
| Physical characteristics | Non-hygroscopic, uniform fiber distribution, high tensile strength |
| Thickness & pore size | Customizable (typical pore size: 0.3–5.0 μm) |
| Filtration performance | High flow rate, large dirt-holding capacity, excellent particle retention |
🧩 Types and Classification
| Type | Features | Recommended Applications |
|---|---|---|
| Binder-free type | Chemically inert, non-reactive with samples, ultra-clean surface | Suitable for organic compound filtration, trace analysis, liquid scintillation counting, and cell collection |
| With-binder type | Contains organic or inorganic binders to enhance mechanical strength | Ideal for filtering coarse particles (dust, macromolecules, suspended solids) or high-volume samples |
💡 Selection Guide
For organic compound filtration → Choose inorganic binder glass fiber membranes.
For inorganic or particulate filtration → Choose organic binder glass fiber membranes.
🔬 Typical Applications
Water and air pollution monitoring
Cell harvesting and biological sample filtration
Radiological liquid scintillation counting
High-temperature gas filtration and residue analysis
Environmental monitoring and particulate matter determination
Microscopic sample preparation (transparent observation)
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
📑 DiffuLayer™ A Series Glass Fiber (GF) Filter Membranes – Price List
| Filter Diameter (mm) | Packaging Quantity | Price (USD) | Available Pore Sizes (μm) |
|---|---|---|---|
| 25 mm | 80 pcs/box | $12.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.7 / 0.8 / 1 / 1.2 / 1.6 / 2 / 5 / 8 / 10 |
| 30 mm | 25 pcs/box | $12.00 | 0.22 / 0.3 / 0.45 / 0.7 / 0.8 |
| 35 mm | 25 pcs/box | $12.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.7 / 0.8 / 1 / 1.2 / 1.6 / 2 / 5 |
| 37 mm | 25 pcs/box | $12.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.7 / 0.8 / 1.2 / 2 |
| 40 mm | 25 pcs/box | $12.00 | 0.22 / 0.3 / 0.45 / 0.7 / 0.8 / 1.2 / 2 |
| 47 mm | 25 pcs/box | $12.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.7 / 0.8 / 1 / 1.2 / 1.5 / 1.6 / 2 / 2.7 / 3 / 5 |
| 50 mm | 25 pcs/box | $12.00 | 0.1 / 0.15 / 0.22 / 0.24 / 0.3 / 0.45 / 0.65 / 0.7 / 0.8 / 1 / 1.2 / 1.6 / 2 / 3 / 5 / 8 / 10 |
| 55 mm | 50 pcs/box | $24.00 | 0.15 / 0.22 / 0.45 / 0.7 / 0.8 / 1 / 5 / 8 |
| 60 mm | 50 pcs/box | $24.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.7 / 0.8 / 1 / 1.2 / 1.6 / 2 / 3 / 5 |
| 70 mm | 25 pcs/box | $16.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.7 / 0.8 / 1 / 1.2 / 2 |
| 80 mm | 25 pcs/box | $18.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.7 / 0.8 / 1 / 1.2 / 2 / 5 |
| 90 mm | 25 pcs/box | $18.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.7 / 0.8 / 1 / 1.2 / 1.6 / 2 / 2.7 / 3 / 5 |
| 92 mm | 25 pcs/box | $20.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.7 / 0.8 / 1 / 1.2 / 2 / 5 |
| 100 mm | 25 pcs/box | $20.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.7 / 0.8 / 1 / 1.2 / 2 / 5 |
| 110 mm | 25 pcs/box | $24.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.7 / 0.8 / 1 / 1.2 / 1.5 / 1.6 / 2 / 5 |
| 125 mm | 25 pcs/box | $30.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.7 / 0.8 / 1 / 1.2 / 1.5 / 1.6 / 2 / 5 |
| 142 mm | 25 pcs/box | $30.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.8 / 1 / 1.2 / 1.6 / 2 / 3 / 5 |
| 150 mm | 25 pcs/box | $30.00 | 0.1 / 0.15 / 0.22 / 0.3 / 0.45 / 0.65 / 0.7 / 0.8 / 1 / 1.2 / 1.6 / 2 / 3 / 5 |
| 200 mm | 50 pcs/box | $70.00 | 0.3 / 0.45 / 0.7 / 0.8 |
| 300 mm | 50 pcs/box | $100.00 | 0.22 / 0.3 / 0.45 / 0.7 / 0.8 |
🧾 DiffuLayer™ A Series Glass Fiber (GF) Filter Membrane – Model Code Reference
| Pore Size (μm) | Product Code |
|---|---|
| 0.15 | GF-A0.15 |
| 0.22 | GF-A0.22 |
| 0.3 | GF-A0.3 |
| 0.45 | GF-A0.45 |
| 0.65 | GF-A0.65 |
| 0.7 | GF-A0.7 |
| 0.8 | GF-A0.8 |
| 1.0 | GF-A1 |
| 1.2 | GF-A1.2 |
| 1.6 | GF-A1.6 |
| 2.0 | GF-A2 |
