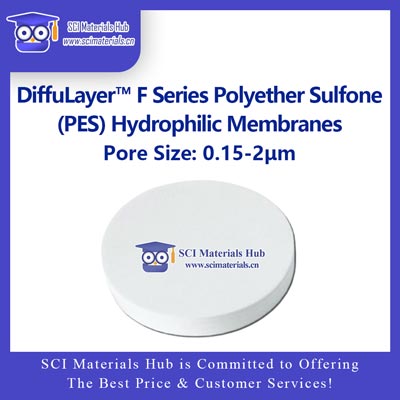

💧 DiffuLayer™ F Series Polyether Sulfone (PES) Membranes
DiffuLayer™ F Series PES membranes feature a unique patented asymmetric porous structure with uniform pore distribution and high porosity. The membranes are sulfonated for hydrophilicity, offering excellent chemical stability while ensuring high filtration precision, ultra-high flow rates, strong fouling resistance, low protein binding, and minimal extractables.
The chemical compatibility is broad (pH 3–14), and the membranes tolerate multiple sterilization methods, including ethylene oxide (ETO), gamma irradiation, electron beam, and high-temperature steam sterilization (121°C / 134°C).
⚙️ Structure & Design
The DiffuLayer™ F Series PES membrane has a typical funnel-shaped asymmetric structure:
Feed side: Large pores to accommodate blood cells, debris, and other large particles.
Permeate side: Fine pores with micron-scale microstructure and smooth surface, suitable for optical detection and microscopic observation.
This design ensures high throughput, strong fouling capacity, and the ability to process complex samples such as blood or cell lysates. In in-vitro diagnostic (IVD) applications, these membranes can serve as functional carriers for POCT test strips.
🌟 Features & Advantages
Asymmetric porous structure: Large-pore support layer + fine-pore filtration layer, balancing strength and efficiency.
High flow / high throughput: Rapid filtration under low pressure.
Strong hydrophilicity: Sulfonated modification, no pre-wetting required.
Low protein binding: Maintains sample integrity, ideal for biological samples.
Excellent chemical stability: Compatible with pH 3–14 solutions.
Sterilization compatible: ETO, gamma, electron beam, and steam autoclave.
High-strength support layer: Suitable for heat or ultrasonic welding into assemblies.
🧫 Typical Applications
Medical infusion anti-drip membranes
Precision drug filtration membranes
Preparation and injection filters
POCT diagnostic test strip membranes
Cell lysate filtration and analysis modules
📊 Performance Specifications
PES Membrane
| Pore Size (μm) | Bubble Point (kPa, 20°C water) | Thickness (μm) | Water Flow Rate* (s/50 mL·12.68 cm², 20°C, -5 kPa) | Recommended Welding (ABS/PP/PC/PMMA) | Recommended Sterilization |
|---|---|---|---|---|---|
| 0.1 | ≥400 | 110±20 | ≤510 | Heat | ETO / Gamma / E-beam / Autoclave |
| 0.22 | ≥350 | 110±20 | ≤210 | Heat | Same as above |
| 0.45 | ≥200 | 130±20 | ≤90 | Heat | Same as above |
| 0.65 | ≥150 | 125±20 | ≤40 | Heat | Same as above |
| 0.8 | ≥100 | 150±20 | ≤30 | Heat | Same as above |
| 1.2 | ≥60 | 130±20 | ≤12 | Heat | Same as above |
| 3.0 | ≥40 | 130±20 | ≤4.5 | Heat | Same as above |
| 5.0 | ≥30 | 135±20 | ≤3 | Heat | Same as above |
| 8.0 | ≥27 | 135±20 | ≤2.5 | Heat | Same as above |
| 10.0 | ≥25 | 150±20 | ≤2.4 | Heat | Same as above |
PES Membrane with Support Layer
| Pore Size (μm) | Bubble Point (kPa, 20°C water) | Thickness (μm) | Water Flow Rate* | Welding | Sterilization |
|---|---|---|---|---|---|
| 5.0 | ≥27 | 110±20 | ≤4.5 | Heat / Ultrasonic | ETO / Gamma / E-beam / Autoclave |
*Water flow rate tested at 20°C using deionized water under -5 kPa. Bubble point indicates typical pore uniformity and integrity.
📦 Ordering Information
Available as rolls, sheets, or adhesive sheet membranes.
Standard roll width: 260 mm, maximum length: 300 m.
Custom widths up to 330 mm available.
Supports custom cutting, punching, and assembly processing.
✅ Summary
DiffuLayer™ F Series PES membranes combine asymmetric porous design, strong hydrophilicity, and excellent chemical stability. They deliver high-performance filtration with high flow rates, low protein binding, minimal extractables, and multi-method sterilization compatibility, making them ideal for medical, pharmaceutical, and diagnostic filtration applications.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
📑 DiffuLayer™ F Series Polyether Sulfone (PES) Membranes – Price List (USD)
| Membrane Diameter | Packaging | Price (USD) | Applicable Pore Size (μm) |
|---|---|---|---|
| 13 mm | 100 pcs/box | $30 | 0.22 / 0.45 / 0.8 |
| 25 mm | 100 pcs/box | $40 | 0.22 / 0.45 / 0.8 |
| 47 mm | 50 pcs/box | $50 | 0.22 / 0.45 / 0.8 |
| 50 mm | 50 pcs/box | $60 | 0.22 / 0.45 / 0.8 |
| 60 mm | 50 pcs/box | $60 | 0.22 / 0.45 / 0.8 |
| 75 mm | 50 pcs/box | $90 | 0.45 |
| 80 mm | 50 pcs/box | $90 | 0.22 / 0.45 |
| 90 mm | 50 pcs/box | $90 | 0.22 / 0.45 |
| 100 mm | 50 pcs/box | $90 | 0.22 / 0.45 |
| 150 mm | 50 pcs/box | $140 | 0.22 / 0.45 |
| 200 mm | 50 pcs/box | $260 | 0.22 / 0.45 |
🧾 DiffuLayer™ F Series PES Membrane Model Reference
| Pore Size (μm) | Product Code |
|---|---|
| 0.15 | PES-F0.15 |
| 0.22 | PES-F0.22 |
| 0.30 | PES-F0.3 |
| 0.45 | PES-F0.45 |
| 0.65 | PES-F0.65 |
| 0.70 | PES-F0.7 |
| 0.80 | PES-F0.8 |
| 1.0 | PES-F1 |
| 1.2 | PES-F1.2 |
| 1.6 | PES-F1.6 |
| 2.0 | PES-F2 |
