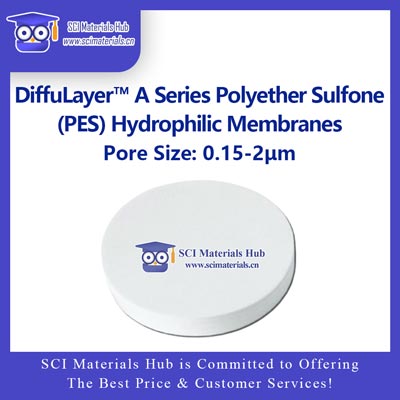

💧 DiffuLayer™ A Series Polyether Sulfone (PES) Hydrophilic Membranes
Product Overview
DiffuLayer™ A Series PES membranes are manufactured using advanced dry, wet, or mixed membrane-forming techniques. The membranes feature an ultra-asymmetric gradient pore structure, offering high porosity and excellent flux performance. Compared with other membranes of the same pore size, DiffuLayer™ PES membranes provide higher water flux, lower protein adsorption, and superior mechanical strength. This series is designed for high-purity, low-adsorption, high-throughput filtration, making it ideal for biopharmaceutical, pharmaceutical testing, and precision filtration applications.
🔬 Key Features
High Flow Rate / High Throughput: Ultra-asymmetric pore structure with high porosity significantly improves filtration efficiency.
Low Protein Adsorption: Minimizes protein loss during filtration of biological samples.
Excellent Chemical Stability: Resistant to bases, acids, alcohols, and hydrocarbon solvents.
Autoclavable: Can withstand 121°C high-temperature, high-pressure sterilization without shrinkage or brittleness.
Hydrophilic: Can directly filter aqueous solutions without pre-wetting.
Low Extractables: No media shedding, preventing secondary contamination.
Strong Structural Stability: High compressive strength and dimensional stability, resistant to breakage or deformation.
High Particle Retention: >99.99% retention for precise separation.
⚙️ Performance Specifications
| Parameter | Description |
|---|---|
| Material | Polyether Sulfone (PES) |
| Structure | Ultra-asymmetric microporous structure |
| Pore Size Range | 0.02 / 0.03 / 0.05 / 0.1 / 0.22 / 0.45 / 0.65 / 0.8 / 1.0 / 1.2 / 5.0 μm |
| Thickness | Thin membrane, low adsorption |
| Pore Distribution | Near-normal distribution for high filtration accuracy |
| Flux | High flow rate and throughput |
| Chemical Stability | Resistant to acids, bases, alcohols, hydrocarbons |
| Temperature Resistance | Continuous use ≤ 180°C; autoclaving 121°C × 30 min |
| pH Stability | 1–14 |
| Protein Adsorption | Extremely low (≤10 μg/cm²) |
🧪 Recommended Pore Sizes for Applications
| Filtration Goal | Suggested Pore Size | Description |
|---|---|---|
| Clarification & visible particle removal | 3–5 μm | Remove large particles, improve clarity |
| Yeast / mold removal | 0.6 μm | Preliminary clarification of fermentation broth |
| Bacteria reduction / heat control | 0.45 μm | Pre-sterilization filtration |
| Bacteria retention / sterilizing-grade | 0.22 μm | Final sterilizing filtration |
| Pathogen / small molecule removal | 0.1 μm | Advanced purification or high-purity filtration |
🧫 Typical Applications
Sterilizing filtration and pre-treatment
Biopharmaceutical and protein sample preparation
Injectable solutions and infusion clarification
Food and beverage filtration and sterilization
Microbial detection and biomass separation
Chemical reagent and solution clarification
Cell culture media and buffer filtration
🔧 Material & Performance Information
Polyether Sulfone (PES) Overview
PES is a highly transparent, high-strength, hydrolysis-resistant thermoplastic engineering polymer with excellent thermal and chemical stability. PES membranes can be repeatedly autoclaved at 145°C and have a continuous use life exceeding 12 years.
| Property | Description |
|---|---|
| Heat Resistance | Heat distortion 200–220°C; continuous use 180–200°C |
| Hydrolysis Resistance | Stable in hot water/steam up to 150–160°C |
| Dimensional Stability | Linear expansion coefficient as low as 2.3×10⁻⁵/°C (GF-reinforced) |
| Creep Resistance | Excellent under 180°C |
| Mechanical Strength | High toughness and impact resistance |
| Flame Retardancy | Self-extinguishing, UL94 V-0 |
| Non-Toxic | Complies with FDA, EU, and Japanese food contact standards |
| Chemical Resistance | Stable to acids, bases, alcohols, hydrocarbons; not resistant to chloroform, acetone |
🧴 Example Applications
Biochemical & Pharmaceutical: Protein purification, antibody filtration, drug solution sterilization
Analytical & Testing: Sample preparation, HPLC/LC-MS filtration
Food & Beverage: Brewing, mineral water, juice clarification and sterilization
Laboratory Routine Filtration: Water, solution clarification, microparticle removal
High-Temperature Systems: Hot liquid filtration and steam sterilization
🌡️ Storage & Usage Recommendations
Pre-wet with deionized water or ethanol before use.
Can withstand repeated autoclaving at 121°C × 30 min.
Avoid prolonged exposure to highly polar solvents (e.g., acetone, chloroform).
Store dry in a cool, clean environment, away from UV light.
✅ Summary
DiffuLayer™ A Series PES membranes combine high throughput, low adsorption, and excellent chemical resistance. They deliver exceptional stability and reliability for filtering biological samples, pharmaceuticals, food, and high-purity water systems. The hydrophilic structure ensures ready-to-use performance, making it an optimal choice for both research and industrial filtration.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
📑 DiffuLayer™ A Series Polyether Sulfone (PES) Membranes – Price List (USD)
| Membrane Diameter | Package Quantity | Price (USD) | Available Pore Sizes (μm) |
|---|---|---|---|
| 13 mm | 100 pcs/box | $30 | 0.22 / 0.45 / 0.8 |
| 25 mm | 100 pcs/box | $40 | 0.22 / 0.45 / 0.8 |
| 47 mm | 50 pcs/box | $50 | 0.22 / 0.45 / 0.8 |
| 50 mm | 50 pcs/box | $60 | 0.22 / 0.45 / 0.8 |
| 60 mm | 50 pcs/box | $60 | 0.22 / 0.45 / 0.8 |
| 75 mm | 50 pcs/box | $90 | 0.45 |
| 80 mm | 50 pcs/box | $90 | 0.22 / 0.45 |
| 90 mm | 50 pcs/box | $90 | 0.22 / 0.45 |
| 100 mm | 50 pcs/box | $90 | 0.22 / 0.45 |
| 150 mm | 50 pcs/box | $140 | 0.22 / 0.45 |
| 200 mm | 50 pcs/box | $260 | 0.22 / 0.45 |
🧾 DiffuLayer™ A Series PES Membranes – Model Chart
| Pore Size (μm) | Product Code |
|---|---|
| 0.15 | PES-A0.15 |
| 0.22 | PES-A0.22 |
| 0.30 | PES-A0.3 |
| 0.45 | PES-A0.45 |
| 0.65 | PES-A0.65 |
| 0.70 | PES-A0.7 |
| 0.80 | PES-A0.8 |
| 1.0 | PES-A1 |
| 1.2 | PES-A1.2 |
| 1.6 | PES-A1.6 |
| 2.0 | PES-A2 |
