🔹 Product Name

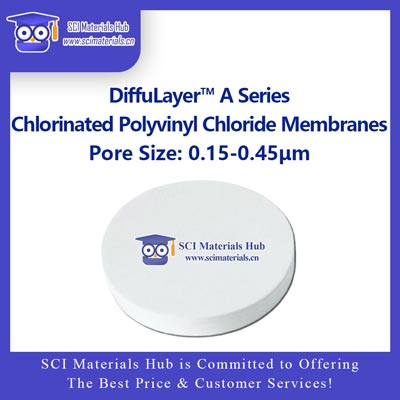

DiffuLayer™ A Series Chlorinated Polyvinyl Chloride (CPVC) Membranes
🔹 Product Overview
DiffuLayer™ A Series CPVC membranes are made from high-purity chlorinated polyvinyl chloride, a synthetic fiber membrane. These membranes feature excellent hydrophobicity, static properties, chemical resistance, and thermal stability, maintaining reliable filtration performance under challenging conditions. With extremely low trace element content in the blank, they are ideal for analyzing and monitoring trace elements in total suspended particulate matter (TSP) in air.
🔹 Key Features
High-temperature resistance: Maintains mechanical strength and filtration stability at elevated temperatures.
Strong chemical stability: Resistant to acids, bases, salts, fatty acid salts, oxidizers, and halogens.
Good hydrophobicity: Prevents moisture adsorption, ensuring accurate sampling.
Moderate static properties: Enhances fine particle capture and filtration efficiency.
Low resistance & lightweight: High air permeability reduces energy consumption, easy to transport and install.
Low blank values: Minimal trace element content (except for a few specific elements), ensuring accurate analytical results.
🔹 Specifications
| Model | Pore Size (μm) | Diameter (mm) | Thickness (μm) | Description |
|---|---|---|---|---|
| CPVC-A1.0 | 1.0 | 35, 47, 50 | 100–150 | General purpose, suitable for TSP sampling & environmental monitoring |
| CPVC-A0.8 | 0.8 | 35, 47, 50 | 100–150 | High-flow type, low-resistance filtration |
🔹 Typical Applications
Trace element analysis in atmospheric TSP
Environmental air particulate sampling
Smoke and aerosol monitoring
Laboratory dust filtration and analysis
Industrial exhaust gas sampling
🔹 Storage & Handling
Store in a cool, dry, and dark environment; avoid heat and humidity.
Prior to use, gently blow clean air or inert gas to remove surface dust.
Membranes are flammable; keep away from open flames and strong oxidizers.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
📑 DiffuLayer™ A Series CPVC Membranes – Price Table (USD)
| Membrane Diameter | Pack Quantity | Price (USD) | Applicable Pore Sizes (μm) |
|---|---|---|---|
| 25 mm Smooth | 100 sheets/box | $30 | 0.22 / 0.3 / 0.45 / 0.8 / 1 |
| 25 mm Rough | 100 sheets/box | $30 | 0.22 / 0.3 / 0.45 / 0.8 / 1 |
| 37 mm Smooth | 50 sheets/box | $30 | 0.8 |
| 40 mm Smooth | 50 sheets/box | $30 | 0.22 / 0.3 / 0.45 / 0.8 / 1 / 1.2 / 2 / 3 / 5 |
| 40 mm Rough | 50 sheets/box | $30 | 0.22 / 0.3 / 0.45 / 0.8 / 1 / 1.2 / 2 / 3 / 5 |
| 50 mm Smooth | 50 sheets/box | $30 | 0.22 / 0.3 / 0.45 / 0.8 / 1 / 1.2 / 2 / 3 / 5 |
| 50 mm Rough | 50 sheets/box | $30 | 0.22 / 0.3 / 0.45 / 0.8 / 1 / 1.2 / 2 / 3 / 5 |
| 75 mm Smooth | 50 sheets/box | $60 | 0.8 |
| 90 mm Smooth | 50 sheets/box | $90 | 0.22 / 0.3 / 0.45 / 0.8 / 1 / 1.2 / 2 / 3 / 5 |
| 90 mm Rough | 50 sheets/box | $90 | 0.22 / 0.3 / 0.45 / 0.8 / 1 / 1.2 / 2 / 3 / 5 |
🧾 DiffuLayer™ A Series CPVC Membranes – Model Code Reference
| Pore Size (μm) | Product Code |
|---|---|
| 0.15 | CPVC-A0.15 |
| 0.22 | CPVC-A0.22 |
| 0.30 | CPVC-A0.3 |
| 0.45 | CPVC-A0.45 |
