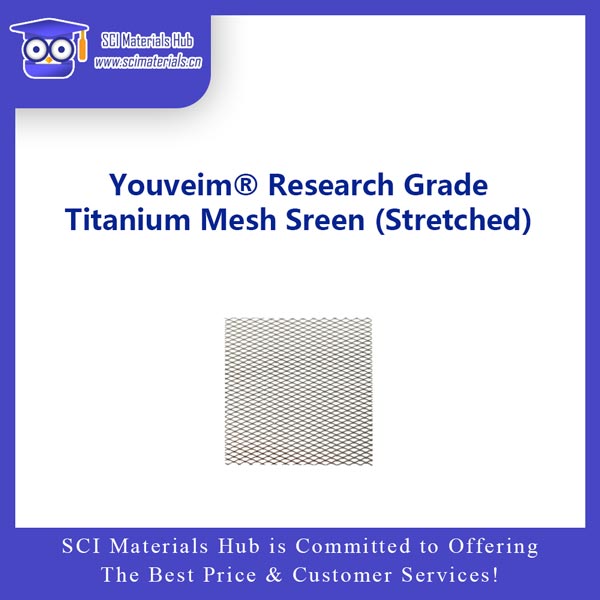

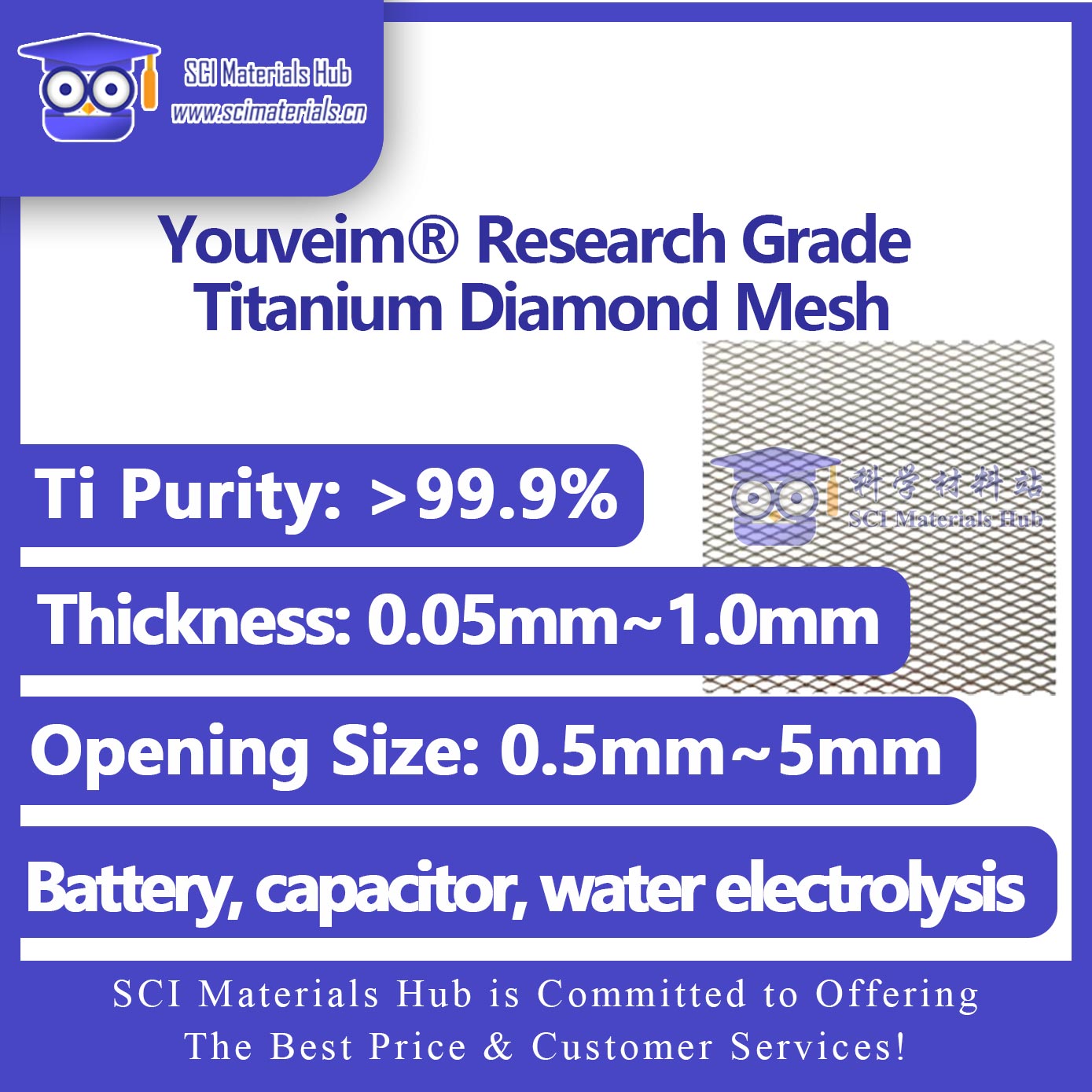

Youveim® Research-Grade Titanium Mesh (Expanded Diamond Mesh)｜Anode Gas Diffusion Layer｜Customizable Coatings Available
Youveim® Research-Grade Titanium Mesh (Expanded Diamond Mesh), also known as titanium expanded mesh, is manufactured from >99.9% high-purity titanium foil through mechanical expansion, flattening, and annealing. The result is a smooth, uniform, and burr-free structure with excellent conductivity and outstanding corrosion resistance.
This titanium mesh is specifically designed for PEM/AAEM water electrolyzers, fuel cells, and hydrogen energy devices, and is especially suitable for use as anode-side gas diffusion layers (GDLs) or flow field structures, offering a durable alternative to conventional carbon-based GDL materials.
To further enhance conductivity and electrochemical stability, the mesh can be coated with a variety of noble metals and oxides such as Au, Pt, IrOx, IrRuOx, and PtIrRuOx, depending on the application environment.
| Item | Range |
|---|---|
| Material | High-purity titanium (>99.9%, TA1 grade) |
| Thickness | 0.05 mm ~ 1.0 mm |
| Mesh Shape | Diamond-shaped expanded mesh |
| Aperture Size | 1 mm ~ 5 mm (customizable) |
| Surface Condition | Flattened + annealed, smooth and burr-free |
| Size Range | Width: 10–100 cm, Length: 10 cm–10 m (customizable) |
| Processing Options | Laser cutting, punching, welding, marking, surface lamination |
| Coating Type | Features & Applications |
|---|---|
| Gold (Au) | Prevents titanium oxidation, improves conductivity; suitable for neutral/weakly acidic environments |
| Platinum (Pt) | Prevents TiO₂ insulating layer formation, enhances electrode stability; works in acidic/alkaline environments |
| IrOx | Classic OER anode catalyst; ideal for PEM water electrolysis and high-voltage cells |
| IrRuOx | Improves OER efficiency with balanced cost and activity; suitable for stack-level applications |
| PtIrRuOx | High-performance ternary coating; designed for extreme corrosion resistance and high current densities |
⚙️ All coatings are customizable in area, thickness, loading (mg/cm²), and atomic ratio.
✅ Oxidation resistant – not consumed in oxygen-rich, high-voltage environments
✅ High strength – maintains structural integrity of stacks without collapse
✅ Corrosion resistant – stable under acidic/alkaline and high-voltage conditions
⚠️ Note: Untreated titanium forms an insulating TiO₂ layer at high potentials; coated titanium mesh is recommended.
| Application | Suggested Usage |
|---|---|
| PEM/AAEM Water Electrolyzers | Anode-side GDL/support layer, electrode framework |
| Fuel Cells (partial use) | Cathode supports, metallic flow field components |
| Electrocatalysis | Substrate for anode catalysts or auxiliary electrodes |
| Electrolyzer Development | Replacement for carbon-based GDLs in sandwich-type devices |
💎 High-purity titanium – excellent conductivity, no impurity leaching during long-term operation
⚙️ Robust structure – burr-free, membrane-safe, mechanically stable under compression
🔁 Reusable – compatible with cleaning and high-temperature treatments
🛠️ Fully customizable – supports cutting, welding, and coating for complex stack designs
⏱️ Lead time: Standard titanium mesh available in stock; custom coatings 3–5 days
📦 Packaging: Sheet or roll form, vacuum-sealed with anti-oxidation protection
🧾 Invoice support: 13% VAT invoice available
🔧 Processing support: Laser cutting, spot welding, custom coating, MEA integration
| Thickness (mm) | LWD (mm) | SWD (mm) | Aperture Size (mm) |
|---|---|---|---|
| 0.05 | 3.2 | 1.6 | 0.8 × 1.6 |
| 0.10 | 2.4 | 1.6 | 0.8 × 1.2 |
| 0.15 | 3.2 | 1.6 | 0.8 × 1.6 |
| 0.20 | – | – | 1 × 2 |
| 0.20 | 8 | 4 | 1.6 × 3.2 |
| 0.25 | – | – | 0.8 × 1.5 |
| 0.25 | 6 | 3 | 1 × 2 |
| 0.30 | 4 | 2 | 1 × 2 |
| 0.30 | 6 | 3 | – |
| 0.45–0.50 | 8 | 4 | – |
| 0.95–1.0 | 8 | 4 | – |
| 0.05 | Φ2 | – | – |
| 0.10 | Φ2 | – | – |
| 0.20 | Φ3 | – | – |
📌 Note: LWD = Long Way of Diamond, SWD = Short Way of Diamond. Customization available.
| Youveim® Research Grade Titanium mesh (stretched) | ||
| Thickness(mm) | LWD (mm) | SWD (mm) |
| 0.05 | 3.2 | 1.6 |
| 0.1 | 2.4 | 1.6 |
| 0.15 | 3.2 | 1.6 |
| 0.2 | 8 | 4 |
| 0.25 | 6 | 3 |
| 0.3 | 4 | 2 |
| 0.3 | 6 | 3 |
| 0.45-0.5 | 8 | 4 |
| 0.95-1 | 8 | 4 |
| 0.05 | Φ2 | / |
| 0.1 | Φ2 | / |
| 0.2 | Φ3 | / |
LWD: Long Way of Diamond , SWD: Short Way of Diamond
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our ebay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Model | Thickness (mm) | Mesh Size (mm) | 1×1 cm | 2×2 cm | 3×3 cm | 4×4 cm | 5×5 cm | 6×6 cm | 10×10 cm | 20×20 cm |
|---|---|---|---|---|---|---|---|---|---|---|
| TDM005a | 0.05 | 0.5 × 1.5 | $3.0 | $4.0 | $5.0 | $6.0 | $8.0 | $10.0 | $20.0 | – |
| TDM010a | 0.10 | 0.8 × 1.2 | $3.0 | $4.0 | $5.0 | $6.0 | $8.0 | $10.0 | $20.0 | – |
| TDM015a | 0.15 | 0.4 × 1.0 | $3.0 | $4.0 | $5.0 | $6.0 | $8.0 | $10.0 | $20.0 | – |
| TDM020a | 0.20 | 1.5 × 3.2 | $3.0 | $4.0 | $5.0 | $6.0 | $8.0 | $10.0 | $20.0 | – |
| TDM025a | 0.25 | 0.6 × 1.0 | $3.0 | $4.0 | $5.0 | $6.0 | $8.0 | $10.0 | $20.0 | – |
| TDM032a | 0.32 | 1.0 × 2.0 | $3.0 | $4.0 | $5.0 | $6.0 | $8.0 | $10.0 | $20.0 | – |
| TDM100a | 1.00 | 1.0 × 2.5 | $3.0 | $4.0 | $5.0 | $6.0 | $8.0 | $10.0 | $20.0 | – |
📌 Notes:
Prices are in USD (excluding tax)
Bulk purchase discounts available.
Custom sizes (sheet/roll) and special coatings (Au, Pt, IrOx, IrRuOx, PtIrRuOx) are supported.
Coating prices depend on loading (mg/cm²) and area, quoted separately.
