Compatible with Multiple Metal Batteries
suitable for Li / Na / K / Mg / Ca / Cd metal negative-electrode systems and common two-electrode research.
Fueiceel®Swagelok2E002 Series

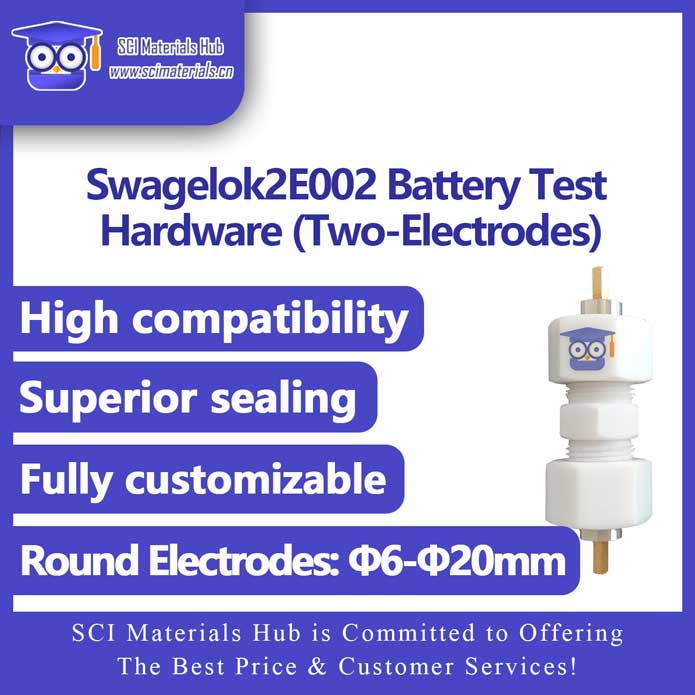

Fueiceel® Swagelok2E002 Two-Electrode Cell Testing Hardware
A compact two-electrode testing fixture for Li / Na / K / Mg / Ca / Cd metal battery research. standard electrode diameter: Φ14 mm. supports Φ6–Φ20 mm round electrodes, square openings, and custom structures.
Core configuration
Reaction ChamberPP / PTFE / PEEK / PMMA
Conductive Post316L / Titanium / Molybdenum
StructureSpring Compression / Dual-Post Compression
Testing PlatformsWorkstation / LAND / NEWARE
Product description
Product description
Compact / customizable / High-Sealing Laboratory Two-electrode Battery testing Platform
The Fueiceel® Swagelok2E002 series is developed by SCI materials Hub for electrochemical research. It is suitable for cycling, impedance, conductivity, and material-compatibility testing of metal batteries, aqueous batteries, metal-air batteries, and other two-electrode systems. The fixture uses a modular structure and can be selected according to electrolyte corrosiveness, testing temperature, conductive-post material, and pressure requirements.
The product supports PP, PTFE, PEEK, and PMMA reaction chambers, as well as 316L stainless steel, titanium, and molybdenum conductive posts. It provides both spring-loaded and dual-post compression structures. Its compact design makes electrode installation, electrolyte filling, sealing, and disassembly convenient inside a glovebox.
Φ14 mmStandard Electrode Diameter
Φ6–Φ20 MmCustomization Range
-180～250℃Temperature Coverage by Chamber
2 Structure TypesSpring & Dual-Post
3 Conductive-Post Materials316L / Titanium / Molybdenum
Multi-Platform CompatibilityWorkstation / LAND / NEWARE
PRODUCT ADVANTAGES
Product Key Advantages
Flexible matching of reaction chamber, conductive post, electrode size, and compression structure according to the experiment system.
Multiple Reaction Chamber Materials
Covers general, corrosive, high-temperature, and transparent-observation experimental needs.
Two Compression Structures
The spring-loaded structure provides continuous compression, while the dual-post structure allows direct adjustment of clamping force.
Selectable Conductive Posts
316L is suitable for general systems, while titanium and molybdenum are suitable for specific corrosion-resistant or electrochemical requirements.
Glovebox-Friendly Operation
The compact structure makes assembly, electrolyte filling, sealing, and disassembly convenient in limited space.
Supports Size Customization
standard Φ14 mm; customizable Φ6–Φ20 mm, square openings, and special structures.
STRUCTURE DIAGRAMS
Structure Diagrams
Updated with English spring-loaded and dual-post structure diagrams.
VIDEO DEMONSTRATIONS
Video Demonstrations
Use together with the structure diagrams and assembly descriptions to understand assembly order and testing connections.
Assembly DemonstrationYouTube video: R6EXqa7yq9c
testing Hardware OperationYouTube video: yZGTi11K9zo
Two-electrode Cell SetupYouTube video: 4lnrCPjvK9I
APPLICATION SCENARIOS
Typical Application Scenarios
suitable for material screening, structure verification, cycling evaluation, and electrochemical mechanism studies.
Metal Battery Performance TestingLi / Na / K / Mg / Ca / Cd metal negative-electrode batteries.
Cycle-Life TestingGalvanostatic charge-discharge, rate performance, capacity retention, and cycling stability.
AC Impedance TestingInterfacial impedance, charge transfer, conductivity, and aging-process analysis.
Electrolyte CompatibilityEvaluation of organic, aqueous, and new high-concentration electrolytes.
Separator Material EvaluationWettability, corrosion resistance, ion transport, and interfacial compatibility.
Self-Supporting Electrode TestingMetal foil, foam, fiber paper, fabric, and other electrodes.
Powder Electrode Sheet TestingCoated electrodes, pressed electrodes, and different binder systems.
Corrosive-System ResearchKOH, DMSO, organic solvents, and related systems.
MATERIAL SELECTION
Reaction Chamber Material Selection
select the chamber according to temperature and electrolyte first, then choose the conductive post and compression structure.
PP
-30～120℃suitable for general experiments and cost-sensitive testing; lightweight and convenient for frequent assembly and disassembly.
PTFE
-180～200℃Good corrosion resistance and broad temperature compatibility; suitable for KOH / DMSO and related systems.
PEEK
-40～250℃Balances mechanical strength, temperature resistance, and solvent resistance; suitable for demanding tests.
PMMA
≤60℃The transparent chamber allows observation of internal assembly and electrolyte status; suitable for visual experiments.
QUICKLY SELECTOR
Quick Selection Table
Select the Main Experimental Conditions to Obtain a Recommended Configuration, Then Confirm the Model and Price in the Full Model Table.
Recommended Model2E002-PP1
Reaction ChamberPP
Conductive Post316L Stainless Steel
StructureSpring-Loaded Structure
Applicable Temperature-30–120°C
Reference Price$29.8
Selection Description:Suitable for General Testing Scenarios; the Spring-Loaded Structure Provides Stable Axial Compression.For High-Temperature Testing, Prioritize PEEK; for Strong Corrosion, Prioritize PTFE; for Transparent Observation, Prioritize PMMA.
FULL MODEL COMPARISON
Core Parameter Comparison Table for All Series
All Standard Models Are Compared in One Table. The Standard Electrode Diameter Is Φ14 mm.
Currently Displayed 24 Models
| Series | Model | Reaction Chamber Material | Temperature Range | Conductive-Post Material | Structure | Spring Material | Standard Electrode | Selection Notes | Price USD |
|---|---|---|---|---|---|---|---|---|---|
| PP | 2E002-PP1 | PP | -30–120°C | 316L | Spring-Loaded Structure | 304L | Φ14 mm | General Testing / Continuous Compression | $29.8 |
| PP | 2E002-PP2 | PP | -30–120°C | 316L | Dual-Post Structure | — | Φ14 mm | General Testing / Adjustable Pressure | $29.8 |
| PP | 2E002-PP3 | PP | -30–120°C | Titanium | Spring-Loaded Structure | Titanium | Φ14 mm | Corrosion Resistant / Continuous Compression | $44 |
| PP | 2E002-PP4 | PP | -30–120°C | Titanium | Dual-Post Structure | — | Φ14 mm | Corrosion Resistant / Adjustable Pressure | $44 |
| PP | 2E002-PP5 | PP | -30–120°C | Molybdenum | Spring-Loaded Structure | Titanium | Φ14 mm | Molybdenum Conductive Post / Continuous Compression | $72 |
| PP | 2E002-PP6 | PP | -30–120°C | Molybdenum | Dual-Post Structure | — | Φ14 mm | Molybdenum Conductive Post / Adjustable Pressure | $72 |
| PTFE | 2E002-PTFE1 | PTFE | -180–200°C | 316L | Spring-Loaded Structure | 304L | Φ14 mm | Corrosion Resistant / Continuous Compression | $33.8 |
| PTFE | 2E002-PTFE2 | PTFE | -180–200°C | 316L | Dual-Post Structure | — | Φ14 mm | Corrosion Resistant / Adjustable Pressure | $33.8 |
| PTFE | 2E002-PTFE3 | PTFE | -180–200°C | Titanium | Spring-Loaded Structure | Titanium | Φ14 mm | High Corrosion-Resistant Configuration | $48 |
| PTFE | 2E002-PTFE4 | PTFE | -180–200°C | Titanium | Dual-Post Structure | — | Φ14 mm | High Corrosion Resistance / Adjustable Pressure | $48 |
| PTFE | 2E002-PTFE5 | PTFE | -180–200°C | Molybdenum | Spring-Loaded Structure | Titanium | Φ14 mm | Corrosion Resistant / Molybdenum Conductive Post | $76 |
| PTFE | 2E002-PTFE6 | PTFE | -180–200°C | Molybdenum | Dual-Post Structure | — | Φ14 mm | Corrosion Resistant / Molybdenum Conductive Post | $76 |
| PEEK | 2E002-PEEK1 | PEEK | -40–250°C | 316L | Spring-Loaded Structure | 304L | Φ14 mm | High-Temperature Testing / Continuous Compression | $39.8 |
| PEEK | 2E002-PEEK2 | PEEK | -40–250°C | 316L | Dual-Post Structure | — | Φ14 mm | High-Temperature Testing / Adjustable Pressure | $39.8 |
| PEEK | 2E002-PEEK3 | PEEK | -40–250°C | Titanium | Spring-Loaded Structure | Titanium | Φ14 mm | High-Temperature Corrosion-Resistant Configuration | $54 |
| PEEK | 2E002-PEEK4 | PEEK | -40–250°C | Titanium | Dual-Post Structure | — | Φ14 mm | High-Temperature Corrosion Resistance / Adjustable Pressure | $54 |
| PEEK | 2E002-PEEK5 | PEEK | -40–250°C | Molybdenum | Spring-Loaded Structure | Titanium | Φ14 mm | High Temperature / Molybdenum Conductive Post | $82 |
| PEEK | 2E002-PEEK6 | PEEK | -40–250°C | Molybdenum | Dual-Post Structure | — | Φ14 mm | High Temperature / Molybdenum Conductive Post | $82 |
| PMMA | 2E002-PMMA1 | Acrylic PMMA | ≤60°C | 316L | Spring-Loaded Structure | 304L | Φ14 mm | Transparent Observation / Continuous Compression | $39.8 |
| PMMA | 2E002-PMMA2 | Acrylic PMMA | ≤60°C | 316L | Dual-Post Structure | — | Φ14 mm | Transparent Observation / Adjustable Pressure | $39.8 |
| PMMA | 2E002-PMMA3 | Acrylic PMMA | ≤60°C | Titanium | Spring-Loaded Structure | Titanium | Φ14 mm | Transparent Observation / TitaniumConductive Post | $54 |
| PMMA | 2E002-PMMA4 | Acrylic PMMA | ≤60°C | Titanium | Dual-Post Structure | — | Φ14 mm | Transparent Observation / Adjustable Pressure | $54 |
| PMMA | 2E002-PMMA5 | Acrylic PMMA | ≤60°C | Molybdenum | Spring-Loaded Structure | Titanium | Φ14 mm | Transparent Observation / Molybdenum Conductive Post | $82 |
| PMMA | 2E002-PMMA6 | Acrylic PMMA | ≤60°C | Molybdenum | Dual-Post Structure | — | Φ14 mm | Transparent Observation / Molybdenum Conductive Post | $82 |
Recommended selection order: electrolyte and temperature range → reaction chamber material → conductive-post material → spring-loaded or dual-post structure.
SPECIFICATIONS
Electrode Specifications & Configuration Description
standard configuration is suitable for Φ14 mm electrodes and supports other diameters, square openings, and special structural customization.
Optional Round Electrode Diameters
Φ6 mmΦ8 mmΦ10 mmΦ12 mmΦ14 mm standardΦ16 mmΦ18 mmΦ20 mm
For customization, please provide electrode size, thickness, opening shape, testing temperature, and electrolyte type.
Core Component Configuration
Reaction Chamber BodyPP / PTFE / PEEK / PMMA
Conductive PostSpring-Loaded Structure / Dual-Post Structure, 316L / Titanium / Molybdenum
Sealing ComponentsPTFE / PEEK / 316L / Titaniumsealing Ring
Connection LeadsAlligator Clip to O-Terminal Lead
Compression Components304 / 316L / TitaniumSpring
Standard AccessoriesNuts / Screws / Terminal Posts and Leads
When using a metal housing, Mylar or other polyester insulating film must be added to prevent short circuits caused by contact between conductive posts, electrodes, connectors, and the metal housing.
ACCESSORY IMAGES
Accessory Images & Specification Description
Reorganized according to the individual accessory images you provided. The compact layout uses grouped headings, small images, materials, and usage notes, with additional displays for dual-post conductive posts and metal sealing rings.
Reaction Chamber
select according to temperature range, corrosion resistance, and whether transparent observation is required.
PPGeneraltesting, Lightweightsolvent Resistant
PTFEStrong Corrosion Resistance; Suitable for Alkaline Solution / Organic Systems
PEEKHigh Strength; Suitable for Higher-Temperature Testing
PMMATransparent Observation; Suitable for Room-Temperature Visual Experiments
Nut
Used for locking both ends and matching reaction chambers of different materials.
PP NutGeneral Lightweight Configuration
PTFE NutCommon Corrosion-Resistant Option
PEEK NutHigh-Strength, Heat-Resistant Option
Conductive Post Sets
Includes the common spring-loaded raised conductive post and additional dual-post conductive post display.
Raised Metal Conductive Post SetCommon Spring-Loaded Configuration with Conductive-Post Components
Sealing Ring
Used for sealing, leak prevention, and positioning. Metal sealing-ring options are also shown in addition to PTFE / PEEK.
PTFE Sealing RingHigh Corrosion-Resistant Sealing
PEEK Sealing RingHigh-Strength Sealing
Spring
Used in the spring-loaded structure to provide continuous axial compression for the electrode stack.
304L SpringSpring for General Testing
Titanium AlloySpringSuitable for Corrosive Environments
Connections & Terminal Posts
Used to connect electrochemical workstations, LAND, Neware, and other testing instruments.
Alligator Clip Lead WireLead Wire for External Testing Equipment
Copper Conductive Terminal PostExternal Conductive Connection Terminal
ACCESSORY PRICING
Accessory Purchase Price Table
suitable for Φ14 mm standard models. Custom specifications need to be confirmed separately.
| Accessory Category | Accessory Name | Specification / Material | Quantity | Price USD |
|---|---|---|---|---|
| Spring | Compression Spring | 304L | 5pcs | $6 |
| Spring | Compression Spring | 316L | 5pcs | $10 |
| Spring | Compression Spring | Titanium | 5pcs | $20 |
| Reaction Chamber | Standard Chamber | PP | 1pcs | $10 |
| Reaction Chamber | Standard Chamber | PMMA | 1pcs | $20 |
| Reaction Chamber | Standard Chamber | HDPE | 1pcs | $10 |
| Reaction Chamber | Standard Chamber | PTFE | 1pcs | $12 |
| Reaction Chamber | Standard Chamber | PEEK | 1pcs | $16 |
| Reaction Chamber | Standard Chamber | PFA | 1pcs | $60 |
| Nut | Standard Nut | PP | 2pcs | $6 |
| Nut | Standard Nut | PTFE | 2pcs | $8 |
| Nut | Standard Nut | PEEK | 2pcs | $12 |
| Sealing Ring | Standard Sealing Ring | PTFE | 1pcs | $4 |
| Sealing Ring | Standard Sealing Ring | PEEK | 1pcs | $6 |
| Sealing Ring | Metal Sealing Ring | 316L | 1pcs | $8 |
| Sealing Ring | Metal Sealing Ring | Titanium | 1pcs | $10 |
| Conductive Post Set | Spring-Loaded StructureConductive Post | 316L | 1set | $19.8 |
| Conductive Post Set | Spring-Loaded StructureConductive Post | Titanium | 1set | $39.8 |
| Conductive Post Set | Spring-Loaded StructureConductive Post | Molybdenum | 1set | $59.8 |
| Conductive Post Set | Dual-Post StructureConductive Post | 316L | 1set | $19.8 |
| Conductive Post Set | Dual-Post StructureConductive Post | Titanium | 1set | $39.8 |
| Conductive Post Set | Dual-Post StructureConductive Post | Molybdenum | 1set | $59.8 |
| Other | Alligator Clip to O-Terminal Lead | 2 Pcs | 1set | $4 |
| Other | Copper Conductive Terminal Post | Standard Parts | 6pcs | $4 |
USE METHOD
Use Method
Optimized into a concise Before testing / During testing / After testing workflow for research operation and training.
Preparation Before Testing
Confirm electrolyte-material compatibility and check whether the conductive posts, sealing rings, reaction chamber, and nuts are clean, dry, and undamaged. Air-sensitive systems are recommended to be handled in a glovebox.
Assembly & Electrolyte Filling
Install components according to the structure diagram. The electrodes and separator should be centered and flat. Add a small amount of electrolyte during stacking to wet each layer and ensure that the separator fully covers the reaction area and effectively isolates the positive and negative electrodes.
Locking & Connection
Evenly tighten the nuts on both ends so the sealing rings fit properly and form leak-proof sealing. After installing the conductive terminal posts, connect to an electrochemical workstation, LAND, or NEWARE device and confirm polarity and channel settings.
Maintenance After Testing
After testing, slowly release pressure, disassemble all components, and clean them according to electrolyte type. Store only after full drying to prevent residual-liquid corrosion, cross-contamination, or reduced repeatability in the next test.
Before testing, it is recommended to use a multimeter to confirm that there is no short circuit. If leakage or abnormal impedance is found, recheck separator size, sealing-ring position, and uniform locking on both sides.
ASSEMBLY METHOD
Assembly Method
The following shows the general assembly process. Assembly is recommended from right to left.
Spring-Loaded Structure Assembly Process
1 Right-Side Base Part Pre-Assembly
Take the right-side PTFE nut first, insert the 316L conductive metal cylinder from the outside, then place the PTFE sealing ring on the inner end of the metal cylinder to complete right-side pre-assembly.
2 Install the Right-Side Assembly Into the Reaction Chamber
Hold the reaction chamber and push the right-side pre-assembled part inward from the threaded hole on the right end of the chamber, so the metal cylinder tip is only slightly exposed inside the chamber. Do not push it fully through.
3Install negative electrode / separator / positive electrode in Sequence
Add a small amount of electrolyte to wet each layer. Place the negative electrode first, then lay the separator flat, and finally place the positive electrode. The separator should be larger than the electrode pieces and fully cover the chamber cross-section to isolate the two electrodes and prevent short circuits.
4 Install Conductive Spacer and Spring
After the electrode stack is completed, first insert the 316L conductive spacer with raised boss, with the raised side contacting the positive electrode piece. Then install the matching spring to provide stable elastic compression.
5 Left-Side Sealing and Locking
Take another conductive metal cylinder, place the PTFE sealing ring on it, insert it from the left end of the reaction chamber, then cover it with the left PTFE nut. Evenly tighten both nuts to form leak-proof sealing.
6 Install Conductive Terminal Posts and Finish
Tighten the brass-colored copper conductive terminal posts onto the exposed conductive metal cylinder ends on both sides. After confirming the threads are tightened and the conductive path is complete, the fixture is ready for testing.
Dual-Post Structure Assembly Process
1 Right-Side Metal Cylinder Pre-Assembly
Take the right-side PTFE nut first, insert the 316L conductive metal cylinder through the nut, then place the PTFE sealing ring on the inner end of the metal cylinder to complete single-side pre-assembly.
2 Install the Right-Side Assembly Into the Reaction Chamber
Insert the right-side conductive metal cylinder through the threaded hole at the right end of the reaction chamber and push it in slowly until the metal cylinder tip is slightly exposed inside the chamber.
3 Layer the Electrode Stack and Wet Each Layer
Place the negative electrode, separator, and positive electrode in sequence, adding a small amount of electrolyte between layers for wetting. The separator should fully cover the reaction area and be larger than the positive and negative electrodes to prevent short circuits.
4 Left-Side Dual-Post Assembly
Take another conductive metal cylinder, insert it through the left-side nut, place the sealing ring, and install it inward from the left end of the reaction chamber. Align the chamber threads before tightening.
5 Evenly Tighten Both Ends
Tighten the left and right nuts evenly and synchronously so the sealing rings fit properly. The two metal cylinders directly clamp the internal cell stack and provide leak-proof chamber sealing.
6 Install Conductive Terminal Posts and Finish
Finally, tighten the brass-colored copper conductive terminal posts on both ends. After confirming the conductive path is complete and there is no looseness or leakage, electrochemical performance testing can begin.
LITERATURE CASES
Reference Literature & Application Cases
Can be used to study cycling stability, interfacial behavior, and impedance changes in metal negative-electrode batteries.
Nature
Communications
Communications
Dual-structure-breaking electrolyte enables practical cadmium-metal battery
This study used a Swagelok-type fixture for electrochemical testing of Cd metal batteries. This two-electrode structure is suitable for evaluating cycling stability and interfacial behavior of metal negative electrodes, separators, and electrolyte systems.
FAQ
FAQ
Nine core questions are retained for quick selection and use.
01
What is the standard electrode size?
The standard size is Φ14 mm. Φ6–Φ20 mm, square openings, and other special sizes can be customized.
02
What is the difference between the spring-loaded structure and the dual-post structure?
The spring-loaded structure provides continuous axial pressure and is more suitable for tests requiring stable contact pressure. The dual-post structure directly clamps through the metal cylinders on both sides, making assembly simpler and pressure adjustment more intuitive.
03
How should the four reaction chamber materials be selected?
PP is suitable for general testing; PTFE is suitable for corrosive and broad-temperature systems; PEEK is suitable for high-temperature and high-strength requirements; PMMA is suitable for transparent-observation experiments not exceeding 60°C.
04
How should 316L, titanium, and molybdenum conductive posts be selected?
316L is suitable for most general systems; titanium is suitable for corrosion-resistant requirements; molybdenum is suitable for specific experimental systems that explicitly require molybdenum.
05
Can it be used for lithium, sodium, and potassium metal batteries?
Yes. electrode handling, assembly, electrolyte filling, and sealing are recommended to be completed in an inert-atmosphere glovebox.
06
Can it connect to LAND, Neware, or an electrochemical workstation?
Yes. It can connect to common testing platforms through alligator clip to O-terminal leads. Confirm channel polarity and range settings before use.
07
How should electrolyte leakage be handled?
Stop testing and release pressure. Check whether the sealing ring is misplaced, whether the separator interferes with the sealing area, whether the chamber and threads are clean, and whether both sides are tightened evenly.
08
Why is an insulating film needed when using a metal housing?
A metal housing may form an unintended conductive path. Mylar or another insulating film should be used to prevent external short circuits.
09
How should the fixture be cleaned and stored after testing?
Clean the conductive posts, chamber, and sealing components according to electrolyte safety requirements. Store separately after full drying to avoid residual-liquid corrosion and cross-contamination.
PURCHASE SUPPORT
Purchase & Technical Support
standard models can be purchased by inquiry. For custom specifications, please provide electrode diameter, reaction chamber material, conductive-post material, structure type, testing temperature, and electrolyte system for quick quotation.
Official Taobao StoreStore Name: SCI Materials HubSearch the Store Name in Mobile Taobao to Enter.
Quotation EmailContact@scimaterials.cnFor Quotations, Custom Specifications, and Bulk Purchasing Inquiries.
WeChat ConsultationSCI-Materials-HubFor Selection Consultation, Experiment-Plan Confirmation, and After-Sales Support.
WhatsApp+86 153 5789 9751International Inquiry Available
Phone+86 130 0303 8751+86 156 0553 2352
Suggested Custom InformationElectrode Size / Chamber Material / Conductive-Post MaterialSpring-Loaded or Dual-Post Structure / Electrolyte / Temperature Range
