Products:

SC-HSJ-6L Product Description:

SC-PHSJ-6L laboratory pH meter is widely used for pH measurement in environmental protection, education and research, pharmaceutical and chemical industry, water industry, food safety testing and other fields.

7" color touch screen with navigational operation;

Intelligent operating system with functions of method management, electrode management, calibration management, data management and user management;

Support electrode management, up to 5 pH electrodes, each electrode can save 20 sets of calibration records; support calibration editing function for easy calibration;

3 reading modes: Smart-Read: "Fast, Medium, Severe, Custom" various balance conditions; Timed-Read: 2 timed reading modes: Timed termination and Timed automatic interval measurement; Cont-Read: Clearly grasp the continuous change process of the sample;

Automatic recognition of 25 kinds of buffer solutions such as GB, DIN, NIST, etc., allowing users to create their own pH standard solutions; support for automatic 1-6 point calibration; support for manual/automatic temperature replenishment;

Support storing up to 100 sets of measurement methods;

Support storing 1000 sets of measurement results, in compliance with GLP specification; with data statistics function, allowing users to count, check, analyze, compare and save the measurement results;

Support USB, RS232 connection to PC, serial printer; allow printout of measurement results;

Support Chinese and English language; support firmware upgrade, support U disk hot-swapping; support direct connection to autosampler.

SC-PHSJ-5 Product Description:

SC-PHSJ-5 type laboratory pH meter adopts touch-type 5-inch LCD screen; full Chinese operation interface, easy and convenient to use.

Adopt touch-type 5-inch LCD screen; full Chinese operation interface, simple and convenient to use;

Automatic identification of 10 kinds of buffer solutions, supporting self-built standard solution groups;

Automatic 1-5 point calibration, manual \ automatic temperature compensation, automatic calibration, automatic calculation of electrode slope;

Comply with GLP specification, support data storage, deletion, printing and access. Maximum storage capacity of 200 sets;

With standard RS-232 and USB interface, with Raycom REX data acquisition software, it can realize the connection with PC.

SC-PHSJ-4F Product Description:

SC-PHSJ-4F type laboratory pH meter adopts new material PC panel, light touch digital key, reliable and durable; supports automatic temperature compensation, automatic recognition of 5 kinds of buffer solutions, supports 1-3 points calibration; supports USB connection to PC, serial printer; allows printout of measurement results.

Large screen dot matrix LCD display, intuitive and clear, comprehensive content;

Adopt new material PC panel, light touch digital key, reliable and durable;

3 reading modes: Smart-Read function, intelligent discriminative endpoint; Timed-Read function, automatic timed storage of readings; Cont- Read function, continuous measurement (supports interval continuous measurement);

Support electrode performance reminder function and electrode calibration reminder function;

Support automatic temperature compensation, automatic recognition of 5 kinds of buffer solutions, support 1-3 point calibration;

Support storing 500 sets of measurement data, conforming to GLP specification, supporting data access, deletion and printing;

Support USB connection to PC, serial printer; allow printout of measurement results;

With power failure protection function, data will not be lost after power failure;

Support firmware upgrade.

SC-PHSJ-4A Product Description:

SC-PHSJ-4A laboratory pH meter is widely used for pH measurement in environmental protection, education and research, pharmaceutical and chemical industry, water industry, food safety testing and other fields.

LCD display, Chinese operation interface;

Automatic temperature compensation, automatic calibration, automatic identification of 5 kinds of buffer solutions, 1-3 point calibration;

Support storage, deletion, access and printing of measurement data, up to 50 sets of pH or mV measurement data each;

With RS-232 interface for PC and printer connection;

Power failure protection function, making your data safer.

SC-PHSJ-3F Product Description:

SC-PHSJ-3F type laboratory pH meter adopts new material PC panel, light touch digital key, reliable and durable, supports automatic temperature compensation, automatic identification of 5 kinds of buffer solution, supports 1-3 points calibration.

Large screen dot matrix LCD display, intuitive and clear, comprehensive content;

Adopt new material PC panel, light touch digital key, reliable and durable;

3 reading modes: Smart-Read function, intelligent discriminative endpoint; Timed-Read function, automatic timed storage of readings; Cont-Read function, continuous measurement (supports interval continuous measurement);

Support electrode performance reminder function and electrode calibration reminder function;

Support automatic temperature compensation, automatic recognition of 5 kinds of buffer solutions, support 1-3 point calibration;

support storage of 500 sets of measurement data, in line with GLP specifications, support data access, deletion and printing;

Support USB connection to PC, serial printer; allow printout of measurement results;

With power failure protection function, data will not be lost after power failure;

Support firmware upgrade.

For internaltional orders, please ask us for quotes via

Email: contact@scimaterials.cn

Tel: +86 15375698751

Wechat: SCI-Materials-Hub

Clik here to put quick orders on our Alibaba shop

Model		SC-PHSJ-6L	SC-PHSJ-5	SC-PHSJ-4F	SC-PHSJ-4A	SC-PHSJ-3F
Instrument level		0.001	0.001	0.001	0.001	0.01
MV	Range	-2000~2000
	Minimum Resolution	0.01
	Basic error	±0.03%FS	±0.03%FS	±0.03%FSor±0.1%	±0.03%FS	±0.1%or±0.3%
PH	Range	-2.00~20.00	-2.00~18.00	-2.000~20.000	0.00~14.00	-2.00~20.00
	Minimum Resolution	0.001PH
	Basic error	±0.002PH				±0.01PH
Temperature	Range	-5.0~130.0	-5.0~105.0	-10.0~135.0	-5.0~105.0	-5.0~110.0
	Minimum Resolution	0.1	0.1	0.1	0.1	0.1
	Basic error	±0.1	±0.2	±0.1	±0.2	±0.2
Power Supply		Input: AC100~240V Output: 24VDC	AC (220±22) V (50±1) HZ	Input: AC100~240V Output: DC9V	9V DC, 800MA	Input: AC100~240V Output: DC9V
Size (MM)		280*180*130	250*195*100	242*195*68	290*200*70	242*195*68
Weight (KG)		2.5	2	0.9	1	0.9

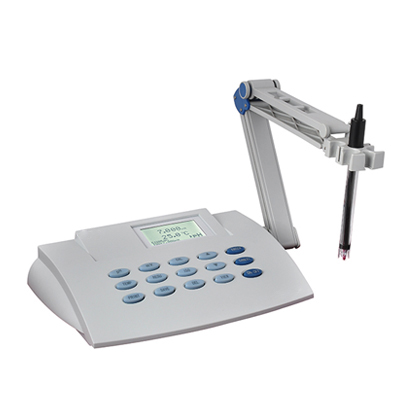

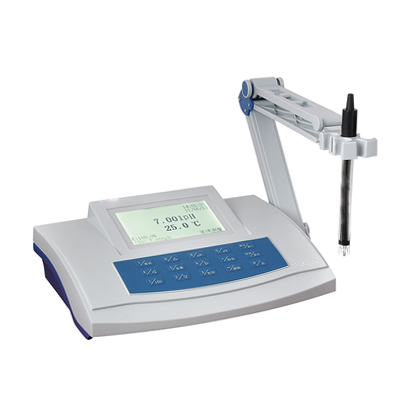

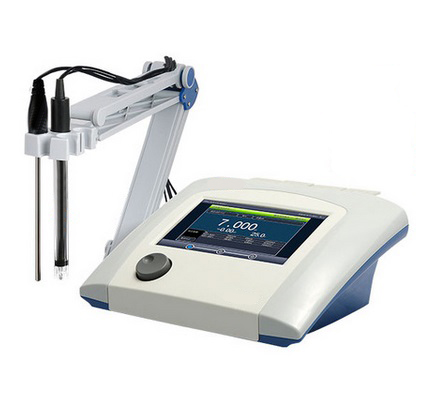

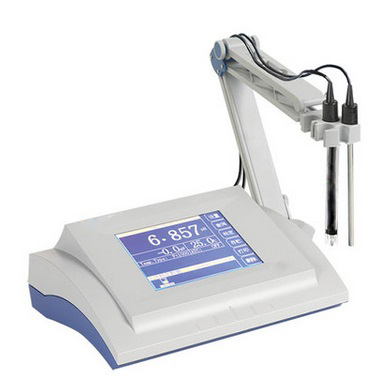

Product Images
Product Price (USD)		$2084/set	$1915/set	$1274/set	$1106/set	$974/set

Worldwide shipping via DHL, SF-Express & other requested carriers.

Payments via Bank Transfer, Paypal, Credit card (via Alibaba), Alipay, Wechat-pay are accepted.
