Product introduction:

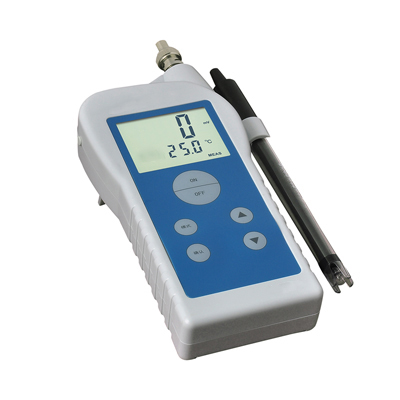

SC-PHB-4 Product Description:

SC-PHB-4 portable pH meter is widely used for pH measurement in environmental protection, education and research, pharmaceutical and chemical industry, water industry, food safety testing and other fields.

Backlight LCD display;

Simultaneous display of pH, temperature or mV (ORP), temperature;

With manual temperature compensation function, supporting two-point calibration;

Novel shape, easy to carry and easy to operate.

SC-PHBJ-260 Product introduction:

SC-PHBJ-260 portable pH meter is widely used for pH measurement in environmental protection, education and research, pharmaceutical and chemical industry, water industry, food safety testing and other fields.

Wide LCD display with blue backlight controllable;

With fully automatic calibration, power failure protection, automatic calibration, manual and automatic temperature compensation, etc;

With undervoltage display prompt, automatic shutdown function to extend battery life;

Five kinds of pH buffer solutions can be selected for one-point or two-point automatic calibration of the instrument;

By adjusting the equipotential point and matching special electrode, the pH value of ultrapure water, pure water and boiler water can be measured;

With data management function, supporting test result storage, deletion, access and printing, up to 200 sets of experimental data can be stored;

With RS-232 interface, it can be connected to TP-16 printer, and the optional REX data acquisition software can be used to communicate with computer;

IP65 protection level.

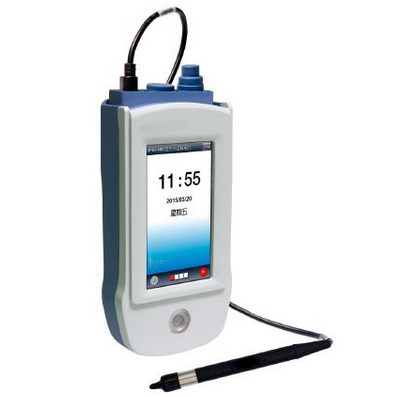

SC-PHBJ-260F product introduction:

SC-PHBJ-260F is a new generation of intelligent portable pH meter. The instrument adopts 4.3-inch color touch screen with new appearance design; intelligent operating system, supports multiple reading methods, supports up to 5-point calibration, supports data management function; adopts lithium battery power supply, which greatly extends the use time of the instrument and is convenient for users to use on site.

Adopting 4.3-inch TFT touch screen, new UI design, navigation operation experience, supporting sliding operation;

Automatic recognition of multiple pH buffer solutions such as GB, DIN, NIST, etc. with up to 5-point calibration;

Support for specimen group management function, allowing users to create custom specimen groups;

3 types of reading modes, Smart-Read: "Fast, Medium, Severe, Custom" equilibrium conditions; Timed-Read: Timed termination and Timed automatic interval measurement; Cont-Read: Clearly grasp the continuous process of sample change;

Support storing 1000 sets of pH measurement results, in line with GLP standard; support multiple access methods, can access the stored data by storage number and storage time, and the access results are displayed in curve mode;

Support two operating languages, Chinese and English, support user ID management;

Support USB connection to PC; support firmware upgrade function.

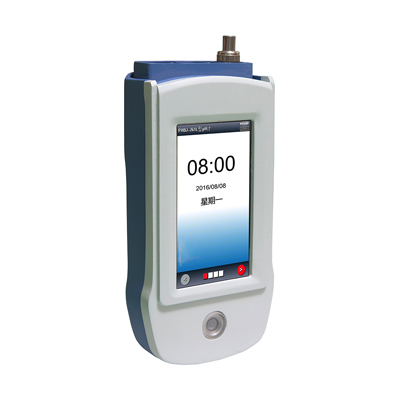

SC-PHBJ-261L product introduction:

The acidity meter is a commonly used analytical instrument in the fields of food safety, environmental protection, life science, chemical and chemical industry, etc. It is a national measuring instrument managed by law.

PHBJ-261L is a new generation of intelligent high-end portable pH meter. The instrument adopts 4.3-inch color touch screen with new appearance design; intelligent operating system, supports multiple reading methods, supports up to 8-point calibration, supports data management function; adopts lithium battery power supply, which greatly extends the use time of the instrument and is convenient for users to use on site.

Adopting 4.3-inch TFT touch screen, new UI design, navigation operation experience, supporting sliding operation;

Intelligent operating system with functions of method management, electrode management, calibration management, data management and user management;

Support electrode management, up to 5 pH electrodes, each electrode can save 20 sets of calibration records; support calibration editing function, convenient for calibration;

Support electrode calibration function, automatic recognition of GB, USA, DIN, NIST, MERK, JIS and other pH buffer solutions, up to 8-point calibration; support calibration group management function, allowing users to create their own calibration solutions;

3 reading modes: Smart-Read: "Fast, Medium, Severe, Custom" equilibrium conditions; Timed-Read: Timed termination and Timed automatic interval measurement; Cont-Read: Clearly grasp the continuous process of sample change;

Support for manual/automatic temperature compensation;

Support for storing up to 50 sets of measurement methods;

Support storage of 2000 sets of pH measurement results, in line with GLP specifications; support multiple access methods, access to stored data by storage number, storage time, access to results displayed as a curve;

Support both Chinese and English operating languages;

Support USB connection to PC; support firmware upgrade function.

For internaltional orders, please ask us for quotes via

Email: contact@scimaterials.cn

Tel: +86 15375698751

Wechat: SCI-Materials-Hub

Clik here to put quick orders on our Alibaba shop

Model		SC-PHB-4	SC-PHBJ-260	SC-PHBJ-260F	SC-PHBJ-261L
Instrument level		0.01	0.01	0.01	0.01
MV	Range	-2000~2000MV			-1400~1400MV
	Minimum Resolution	0.01MV	0.1MV	0.1MV	1MV
	Basic error	±0.03%FS or ±0.1MV	±0.1% or ±0.3MV	±0.1% or ±0.3MV	±0.2%FS
PH	Range	-2.00~20.00	-2.00~20.00	-2.000~20.000	0.00~14.00
	Minimum Resolution	0.001	0.01	0.01	0.01
	Basic error	±0.002	±0.01	±0.01	±0.03
Temperature	Range	-5.0~130.0℃	-5.0~110.0℃	-5.0~110.0℃	-
	Minimum Resolution	0.1℃	0.1℃	0.1℃	-
	Basic error	±0.1℃	±0.2℃	±0.2℃	-
Power Supply		Input: AC100~240V Output: DC5V
Size (MM)		90*255*40	90*255*40	90*255*40	80*225*35
Weight (KG)		0.5	0.5	0.5	0.4
Product Images
Product Price (USD)		$406/set	$884/set	$1034/set	$1514/set
