The PalmSens4 is a potentiostat and galvanostat with optional electrochemical impedance spectroscopy (EIS). It has low noise, high current resolution, and a large potential range.This portable instrument has 4 GB of internal data storage and built-in Bluetooth communication which enables the device to be controlled with PSTrace PC software or an Android app called PSTouch. PSTrace is included with the instrument and PSTouch is available for free download in the Google Play store.
| Supported Techniques | |||
| Voltammetric techniques | |||
| Linear Sweep Voltammetry | LSV | ||
| Cyclic Voltammetry | CV | ||
| Fast Cyclic Voltammetry | FCV | ||
| AC Voltammetry | ACV | ||
| Pulsed techniques | |||
| Differential Pulse Voltammetry | DPV | ||
| Square Wave Voltammetry | SWV | ||
| Normal Pulse Voltammetry | NPV | ||
| Amperometric techniques | |||
| Chronoamperometry | CA | ||
| Zero Resistance Amperometry | ZRA | ||
| Chronocoulometry | CC | ||
| MultiStep Amperometry | MA | ||
| Fast Amperometry | FAM | ||
| Pulsed Amperometric Detection | PAD | ||
| Multiple-Pulse Amperometric Detection | MPAD | ||
| Calvanostatic techniques | |||
| Linear Sweep Potentiometry | LSP | ||
| Chronopotentiometry | CP | ||
| MultiStep Potentiometry | MP | ||
| Open Circuit Potentiometry | OCP | ||
| Stripping Chronopotentiometry | SCP or PSA | ||
| Potentiostatic/Galvanostatic Impedance spectroscopy (EIS/GEIS) | |||
| Potential scan or current scan | |||
| Fixed potential or fixed current | |||
| Time scan | |||
| Other | |||
| Mixed Mode | MM | ||
| System Specifications | |||
| General | |||
| PS4.F#.05 | PS4.F#.10 | ||
| dc potential range | ±5 V | ±10 V | |
| compliance voltage maximum current measured current accuracy measured current resolution | ±10 V | ||
| maximum current | ±30 mA (typical) | ||
| Potentiostat (controlled potential mode) | |||
| applied dc-potential resolution | 76.3uV (18-bit) | ||
| applied potential accuracy | ≤ 0.1% or ±1mV offset | ||
| current ranges | 100pA to 10mA (9 ranges) | ||
| measured current accuracy | < 0.2% of current, ±10pA ±0.1% of range | ||
| measured current resolution | 0.005% of current range, (18-bit, 5fA on 100pA range), 0.0025% of 10mA range | ||
| Galvanostat (controlled current mode) | |||
| current ranges | 1nA to 10mA (8 ranges) | ||
| applied dc-current | ±6 x applied current range | ||
| applied dc-current resolution | 0.0076% of applied range (<10mA) 0.0038% of 10mA range | ||
| applied dc-current accuracy | < 0.2% of current, ±10 pA ±0.1% of range | ||
| potential ranges | 10mV, 100mV, 1V | ||
| measured dc-potential resolution | 78uV at ± 10 V, 7.8uV at ± 1 V, 0.78uV at ± 0.1V | ||
| measured dc-potential accuracy | ≤0.05% or ±1mV (|E| < ±9V), ≤0.2% (|E| ≥ ±9V) | ||
| FRA / EIS (impedance measurements) | |||
| PS4.F1.## | PS4.F2.## | ||
| frequency range | 10uHz to 100 kHz | 10uHz to 1MHz | |
| ac-amplitude range | 1mV to 0.25V rms, or 0.7V p-p | ||
| GEIS (galvanostatic impedance measurements) | |||
| frequency range | 10uHz to 100kHz (all configurations) | ||
| ac-amplitude range | 0.001 * CR to 0.4 * CR rms (<10mA), 0.001 * CR to 0.2 * CR rms (10 mA) (CR=current range) | ||
| Electrometer | |||
| electrometer amplifier input | > 1TΩ // 10pF | ||
| bandwidth | 1MHz | ||
| Optional Features | |||
| BiPot module, IR-compensation module | |||
| Other | |||
| electrode connections | 2mm banana pins for RE, WE, CE and GND | ||
| housing | aluminium body with rubber sleeve: 15.7 x 9.7 x 3.5 cm | ||
| weight | +/- 500g | ||
| temperature range | 0oC to + 50oC | ||
| power supply | USB or internal LiPo battery | ||
| communication | USB and Bluetooth | ||
| battery time | > 16 hours idle time > 5 hours idle time with BiPot module installed > 4 hours with cell on at max. current Extendible by means of power bank | ||
| internal storage space | 8GB(or >100 million datapoints) | ||
| Auxiliary port (D-Sub 15) | |||
| analog input | ± 10V, 18 bit | ||
| analog output | 0-10V, 12-bit (1 kOhm output impedance) | ||
| digital output | 5V (×4) | ||
| digital input | 5V | ||
| I-out and E-out | raw output of current and potential E-out ±10V (1 kOhm output impedance) i-out ±6V (1 kOhm output impedance) | ||
| power | 5V output (max. 150mA) | ||
| Measurement Specifications | |||
| Parameter | Min | Max | |
| All techniques(unless otherwise specified) | Conditioning time | 0 | 1600s |
| Deposition time | 0 | 1600s | |
| Equilibration time | 0 | 1600s | |
| Step potential | 0.076mV | 250mV | |
| Pulse potential | 0.076mV | 250mV | |
| N data points | 3 | 1,000,000 | |
| NPV | Scan rate | 0.1mV/s (76.3uV step) | 100mV/s (5mV step) |
| DPV | Pulse time | 10ms | 300ms |
| SWV | Frequency | 1Hz | 1250Hz |
| ACV | Frequency | 1Hz | 2000Hz |
| LSV | Scan rate | 0.01mV/s (76.3uV step) | 500V/s (10mV step) |
| CV | Scan rate | 0.01mV/s (76.3uV step) | 500V/s (200mV step) |
| FCV | Scan rate | 400mV/s (76.3uV step) | 500V/s (10mV step) |
| PAD | lnterval time | 50ms | 300s |
| Pulse time | 1ms | 1s | |
| N data points | 1,000,000(100 days at10 s interval) | ||
| MPAD | Pulse time | 100ms | 2s |
| Run time | 1.2s | 100,000s | |
| CA CP OCP | lnterval time | 0.4ms | 300s |
| Run time | 1ms | > year | |
| MM MA MP | N cycles | 1 | 20000 |
| N levels | 1 | 255 | |
| FAM | lnterval time | 0.02ms | 1s |
| Run time | 1ms | 30s | |
| N data points | 3 | 4000 for interval time,<0.2ms | |
| EIS | Interval time between measuring frequencies | ~900ms | |
| Potential range ±5V [05] | Potential range ±10V [10] | |
| NO EIS [F0] | PS4.F0.05 | PS4.F0.10 |
| EIS up to 100kHz [F1] | PS4.F1.05 | PS4.F1.10 |
| EIS up to 1MHz [F2] | PS4.F2.05 | PS4.F2.10 |
| module option | 1、BiPot module (Yes/No) 2、IR-compensation module (Yes/No) | 1、BiPot module (Yes/No) 2、IR-compensation module (Yes/No) |

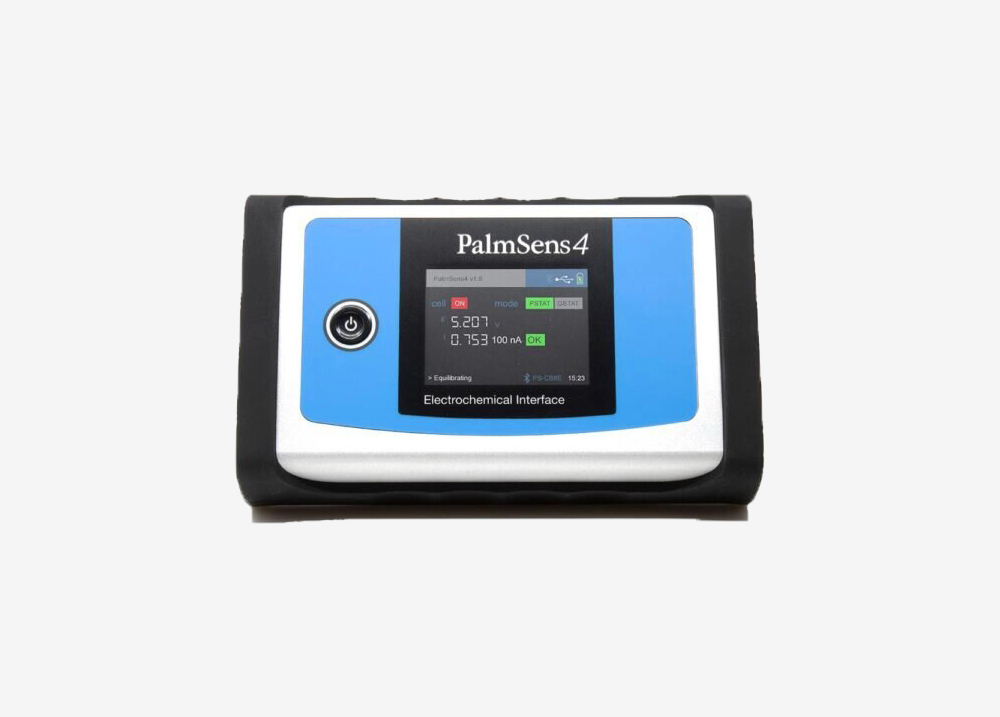

| Product image |  | |

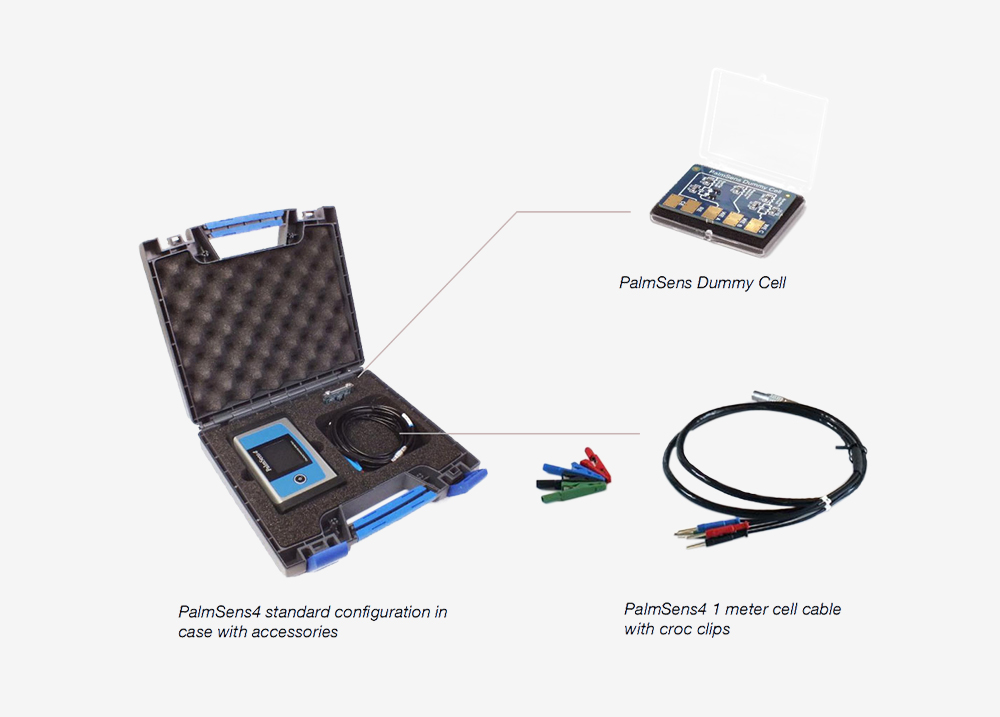

| Standard PalmSens4 Kit | |
| 1、a rugged carrying case 2、PalmSens4 3、USB cable 4、1 meter cell cable 5、4 croc clips 6、PalmSens Dummy Cell 7、PSTrace software (on USB drive) 8、Manual (hardcopy) 9、Quick Start document 10、Calibration report | |
| Product image |  |
For internaltional orders, please ask us for quotes via
Email: contact@scimaterials.cn
Tel: +86 15375698751
Wechat: SCI-Materials-Hub
| Article code: | Price(USD) | |
| PS4.F0.05 | PalmSens4 with dc potential range ±5V and no EIS | 7500 |
| PS4.F0.10 | PalmSens4 with dc potential range ±10V and no EIS | 8000 |
| PS4.F1.05 | PalmSens4 with 100 kHz EIS and dc potential range ±5V | 8500 |
| PS4.F1.10 | PalmSens4 with 100 kHz EIS and dc potential range ±10V | 9000 |
| PS4.F2.05 | PalmSens4 with 1 MHz EIS and dc potential range ±5V | 9000 |
| PS4.F2.10 | PalmSens4 with 1 MHz EIS and dc potential range ±10V | 9500 |
| PS4-BP.F0.05 | PalmSens4 with BiPot module、dc potential range ±5V and no EIS | 9460 |
| PS4-BP.F0.10 | PalmSens4 with BiPot module、dc potential range ±10V and no EIS | 9960 |
| PS4-BP.F1.05 | PalmSens4 with BiPot module、100 kHz EIS and dc potential range ±5V | 10460 |
| PS4-BP.F1.10 | PalmSens4 with BiPot module、100 kHz EIS and dc potential range ±10V | 10960 |
| PS4-BP.F2.05 | PalmSens4 with BiPot module、1 MHz EIS and dc potential range ±5V | 10960 |
| PS4-BP.F2.10 | PalmSens4 with BiPot module、1 MHz EIS and dc potential range ±10V | 11460 |
| PS4-IR.F0.05 | PalmSens4 with IR-compensation module、dc potential range ±5V and no EIS | 8000 |
| PS4-IR.F0.10 | PalmSens4 with IR-compensation module、dc potential range ±10V and no EIS | 8500 |
| PS4-IR.F1.05 | PalmSens4 with IR-compensation module、100 kHz EIS and dc potential range ±5V | 9000 |
| PS4-IR.F1.10 | PalmSens4 with IR-compensation module、100 kHz EIS and dc potential range ±10V | 9500 |
| PS4-IR.F2.05 | PalmSens4 with IR-compensation module、1 MHz EIS and dc potential range ±5V | 9500 |
| PS4-IR.F2.10 | PalmSens4 with IR-compensation module、1 MHz EIS and dc potential range ±10V | 10000 |
| PS4-BP-IR.F0.05 | PalmSens4 with BiPot module、IR-compensation module、dc potential range ±5V and no EIS | 9960 |
| PS4-BP-IR.F0.10 | PalmSens4 with BiPot module、IR-compensation module、dc potential range ±10V and no EIS | 10460 |
| PS4-BP-IR.F1.05 | PalmSens4 with BiPot module、IR-compensation module、100 kHz EIS and dc potential range ±5V | 10960 |
| PS4-BP-IR.F1.10 | PalmSens4 with BiPot module、IR-compensation module、100 kHz EIS and dc potential range ±10V | 11460 |
| PS4-BP-IR.F2.05 | PalmSens4 with BiPot module、IR-compensation module、1 MHz EIS and dc potential range ±5V | 11460 |
| PS4-BP-IR.F2.10 | PalmSens4 with BiPot module、IR-compensation module、1 MHz EIS and dc potential range ±10V | 11960 |
| UPG-PS4-BP | PalmSens4 BiPot upgrade, including: - Installation of BiPot module - USB Y-Cable for additional power - Sensor cable for use with PalmSens4 incl. BiPot module - Yellow croc clip (1x) | 2830 |
| UPG-PS4-IR | PalmSens4 IR Compensation upgrade | 1300 |
| UPG-PS4-BPIR | PalmSens4 BiPot and IR compensation upgrade, including: - Installation of BiPot and IR module - USB Y-Cable for additional power - Sensor cable for use with PalmSens4 incl. BiPot/IR module - Yellow croc clip (1x) | 3330 |
