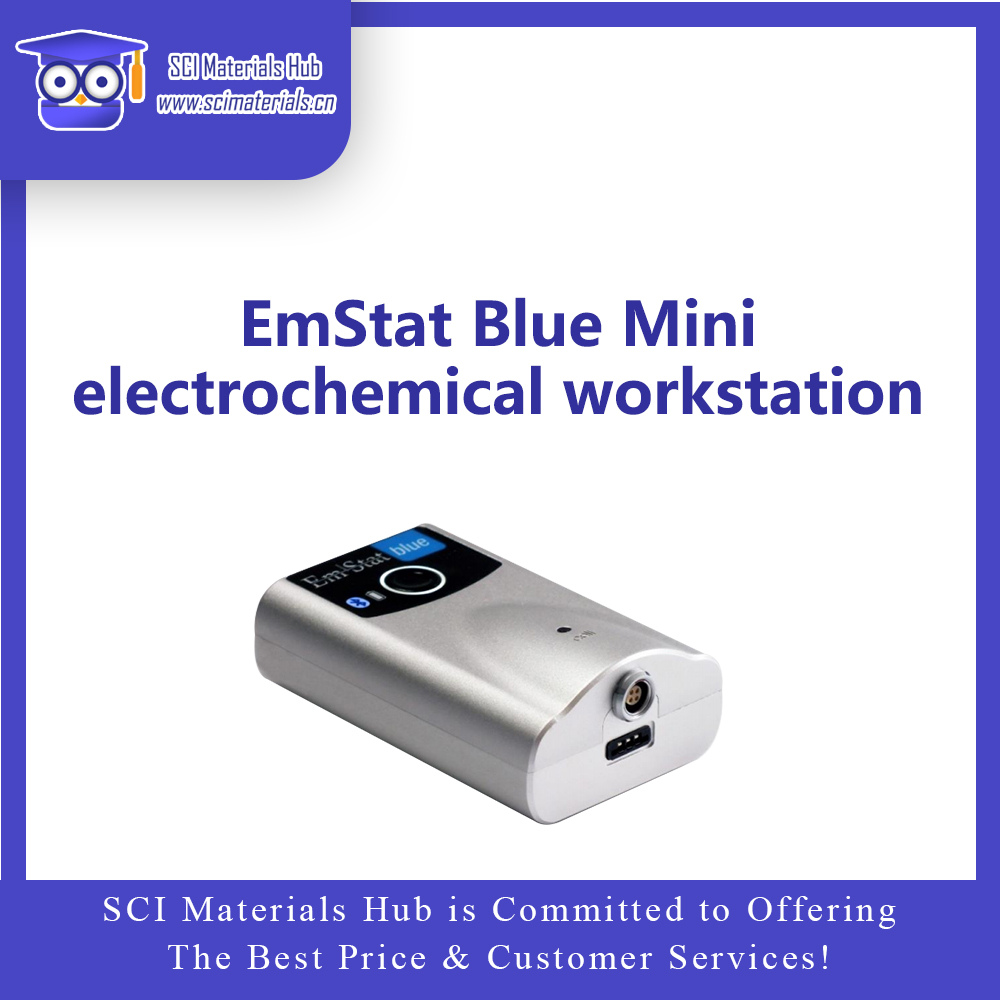

EmStatBlue mini electrochemical analyzer, built-in Bluetooth module and lithium battery, using USB or Bluetooth wireless connection, can be applied to most
Voltammetric and amperometric techniques. Or use the PStouch software to connect EmStatBleg to a tablet computer or Android phone via Bluetooth, which is convenient for detection in the field.
| Supported Techniques | |||
| Voltammetric techniques | |||
| Linear Sweep Voltammetry | LSV | ||
| Cyclic Voltammetry | CV | ||
| Pulsed techniques | |||
| Square Wave Voltammetry | SWV | ||
| Differential Pulse Voltammetry | DPV | ||
| Normal Pulse Voltammetry | NPV | ||
| Techniques as a function of time | |||
| Amperometric Detection/Chronoamperometry | AD | ||
| Chronoamperometry | CA | ||
| Pulsed Amperometric Detection | PAD | ||
| Open Circuit Potentiometry | OCP | ||
| Multiple Pulse Amperometric Detection | MPAD | ||
| MultiStep Amperometry | MA | ||
| System Specifications | |||
| General | |||
| EmStat 3 Blue | EmStat 3+ Blue | ||
| dc potential range | ±3.000 v | ±4.000 v | |
| compliance voltage | ±5 V | ±8 V | |
| applied dc-potential resolution | 0.1 mV | 0.125 mV | |
| applied potential accuracy | ≤ 0.2 % max. 2 mV offset | ≤ 0.3 % max. 3 mV offset | |
| meas. potential resolution | 1 mV | 1 mV | |
| meas. potential accuracy | ≤ 0.1 %,max 2 mV offset | ≤ 0.1 %, max 2 mV offset | |
| current ranges | 1 nA to 10 mA(8 ranges) | 1 nA to 100 mA(9 ranges) | |
| maximum measured current | ±20 mA typical and ±15 mA minimum | ±100 mA typical | |
| current resolution | 0.1 % of current range | ||
| current accuracy | 1 pA on lowest current range ≤1 % of current range at 1 nA <0.5 % at 10 nA ≤0.2 % at 100 nA to 100 uA ≤0.5 % at 1 mA,10 mA and 100 mA all with max. 0.2 % offset error | ||
| electrometer amplifier input | >100 Gohm // 4 pF | ||
| rise time | approx.100 us | ||
| sensor connection | shielded cable with circular connector for WE, RE, CE and Sense2 | ||
| Other | |||
| housing | 100 mm x 60 mm x (27 to 34 mm) | ||
| weight | 250 g | ||
| temperature range | 0o C to +40o C | ||
| power supply | USB or internal Li-Po battery;5 V, min. 130 mA (ES3) or 500 mA (ES3+) | ||
| battery life | > 6 hours, connected via Bluetooth, cell on at 1mA current can be extended to >24 hours with external power bank full battery charge takes approx. 3 hours | ||
| communication | USB or Bluetooth | ||
| auxiliary port | D-Sub15 (female DE-15) with following pins available: analog input and output (0 - 4.096 V, 12 bit) 4 digital outputs, 1 digital input (5 V) Rx / Tx (TTL) 5 V output (max. 50 mA), digital and analog ground | ||
| Measurement Specifications | |||
| NPV DPV | Scan rate | 0.025mV/s (0.125mV step) to 50mV/s (5mV step) | |
| Pulse time | 5 ms to 300 ms | ||
| SWV | Frequency | 1Hz to 500Hz | |
| LSV CV | Scan rate | 0.01mV/s (0.1mV step) to5 V/s (5mV step) | |
| AD | lnterval time | 1ms to 300s | |
| Run time | 1s to hours | ||
| PAD | lnterval time | 50ms to 300s | |
| Pulse time | 1ms to 1s | ||
| Run time | 10s to hours | ||
| MPAD | Pulse time | 100ms to 2s | |
| Run time | 10s to hours | ||
| Number of potential levels | 3 | ||
| OCP | lnterval time | 1ms to 30s | |
| Maximum run time | hours | ||
| MA | lnterval time | 1ms to 30s | |
| Number of potential levels | 1 to 255 | ||
| Number of cycles | 1 to 20000 | ||
| Maximum run time | hours | ||
| EmStat 3 Blue | EmStat 3+ Blue | |
| dc potential range | ±3.000V | ±4.000V |
| compliance voltage | ±5V | ±8V |
| current ranges | 1nA to 10mA(8 ranges) | 1nA to 100mA(9 ranges) |
| Size (cm) | 10.0 x 6.0 x 3.4 | 10.0 x 6.0 x 3.4 |
| Weight | 250g | 250g |
| Battery | internal Li-Po battery | internal Li-Po battery |
| Communication | USB + Bluetooth | USB + Bluetooth |
| Sensor connector | LEMO + SPE1 | LEMO + SPE1 |
| Product image |  | |
| Price(USD) |
| Standard EmStat Blue configuration | ||
| 1、The Emstat Blue model comes in a carrying case size 230 x 200 x 70 mm 2、EmStat 3 or 3+ Blue 3、Mini-USB cable 4、Sensor cable 5、Croc clips 6、Test sensor 7、PSTrace software + manual 8、Quick start document | ||
| Product image | | |
For internaltional orders, please ask us for quotes via
Email: contact@scimaterials.cn
Tel: +86 15375698751
Wechat: SCI-Materials-Hub
Worldwide shipping via DHL, SF-Express & other requested carriers.
Payments via Bank Transfer, Paypal, Credit card (via Alibaba), Alipay, Wechat-pay are accepted.
