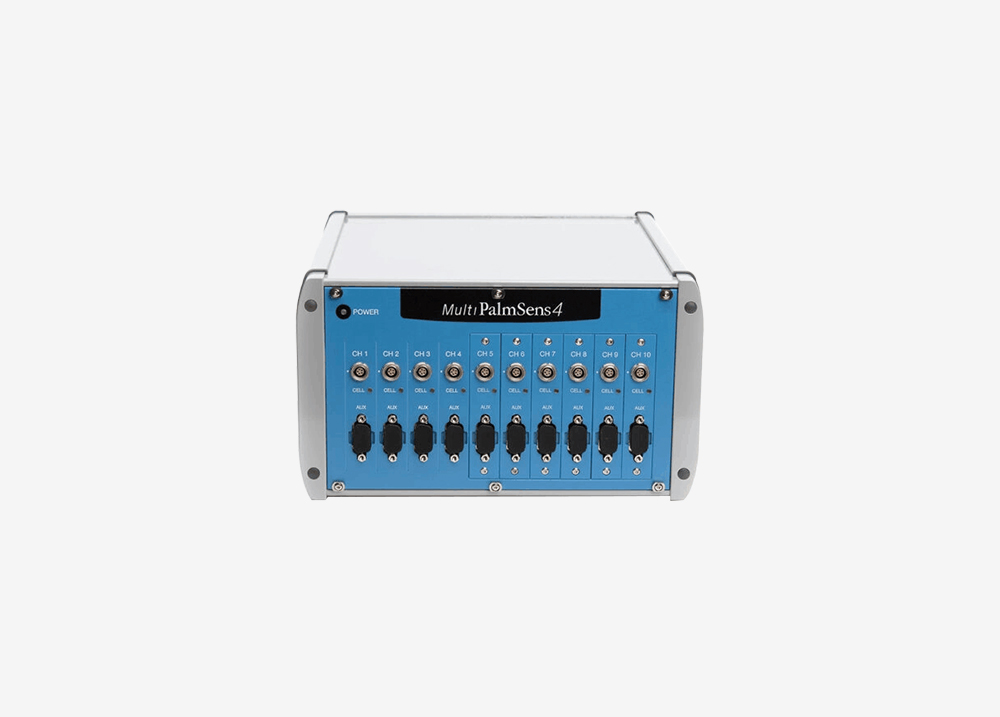

The MultiPalmSens4 is a flexible multi-channel potentiostat, galvanostat and impedance analyzer which you can fully tailor to your requirements and budget. The MultiTrace software allows for using each channel individually or simultaneously or running a sequence of automated tasks on each channel. Each channel provides an additional auxiliary port for controlling peripherals or monitoring temperature or other analog signals.
| Supported Techniques | |||
| Voltammetric techniques | |||
| Linear Sweep Voltammetry | LSV | ||
| Cyclic Voltammetry | CV | ||
| Fast Cyclic Voltammetry | FCV | ||
| AC Voltammetry | ACV | ||
| Pulsed techniques | |||
| Differential Pulse Voltammetry | DPV | ||
| Square Wave Voltammetry | SWV | ||
| Normal Pulse Voltammetry | NPV | ||
| Amperometric techniques | |||
| Chronoamperometry | CA | ||
| Zero Resistance Amperometry | ZRA | ||
| Chronocoulometry | CC | ||
| MultiStep Amperometry | MA | ||
| Fast Amperometry | FAM | ||
| Pulsed Amperometric Detection | PAD | ||
| Multiple-Pulse Amperometric Detection | MPAD | ||
| Calvanostatic techniques | |||
| Linear Sweep Potentiometry | LSP | ||
| Chronopotentiometry | CP | ||
| MultiStep Potentiometry | MP | ||
| Open Circuit Potentiometry | OCP | ||
| Stripping Chronopotentiometry | SCP or PSA | ||
| Potentiostatic/Galvanostatic Impedance spectroscopy (EIS/GEIS) | |||
| Potential scan or current scan | |||
| Fixed potential or fixed current | |||
| Time scan | |||
| Other | |||
| Mixed Mode | MM | ||
| System Specifications | |||
| General | |||
| PS4.F#.05 | PS4.F#.10 | ||
| dc potential range | ±5V | ±10V | |
| compliance voltage maximum current measured current accuracy measured current resolution | ±10V | ||
| maximum current | ±30mA (typical) | ||
| max. acquisition rate (datapoints/s) | 150 000 points/s | ||
| Potentiostat (controlled potential mode) | |||
| applied dc-potential resolution | 76.3uV (18-bit) | ||
| applied potential accuracy | ≤ 0.1% or ±1mV offset | ||
| current ranges | 100pA to 10mA (9 ranges) | ||
| measured current accuracy | < 0.2% of current, ±10pA ±0.1% of range | ||
| measured current resolution | 0.005% of current range, (18-bit, 5fA on 100pA range), 0.0025% of 10mA range | ||
| Galvanostat (controlled current mode) | |||
| current ranges | 1nA to 10mA (8 ranges) | ||
| applied dc-current | ±6 x applied current range | ||
| applied dc-current resolution | 0.0076% of applied range (<10mA) 0.0038% of 10mA range | ||
| applied dc-current accuracy | < 0.2% of current, ±10pA ±0.1% of range | ||
| potential ranges | 10mV, 100mV, 1V | ||
| measured dc-potential resolution | 78uV at ± 10V ,7.8uV at ± 1V ,0.78uV at ±0.1V | ||
| measured dc-potential accuracy | ≤0.05% or ±1mV for |E|<9V ≤ 0.2% for |E| ≥9V | ||
| FRA / EIS (impedance measurements) | |||
| PS4.F0.## | PS4.F1.## | ||
| frequency range | 10uHz to 100kHz | 10uHz to 1MHz | |
| ac-amplitude range | 1mV to 0.25V rms, or 0.7V p-p | ||
| GEIS (galvanostatic impedance measurements) | |||
| frequency range | 10uHz to 100kHz (all configurations) | ||
| ac-amplitude range | 0.001 * CR to 0.4 * CR rms (<10mA), 0.001 * CR to 0.2 * CR rms (10mA) (CR=current range) | ||
| Electrometer | |||
| electrometer amplifier input | > 1TΩ // 10pF | ||
| bandwidth | 1MHz | ||
| Other | |||
| electrode connections | 2mm banana pins for RE, WE, CE and GND | ||
| housing | 15 x 25 x 25 cm3 | ||
| weight | ~4kg | ||
| temperature range | 0oC to + 50oC | ||
| power supply | external 12V AC/DC adapter | ||
| communication | USB | ||
| internal storage space | 8GB per channel or +/- 800000 measurements incl. method info (assuming 200 data points per measurement) | ||
| Auxiliary port (D-Sub 15) | |||
| analog input | ± 10V, 18 bit | ||
| analog output | 0-10V, 12-bit (1kOhm output impedance) | ||
| digital output | 5V (×4) | ||
| digital input | 5V | ||
| I-out and E-out | raw output of current and potential E-out ±10V (1kOhm output impedance) i-out ±6V (1kOhm output impedance) | ||
| power | 5V-output (max. 150mA) | ||
| Measurement Specifications | |||
| Parameter | Min | Max | |
| All techniques(unless otherwise specified) | Conditioning time | 0 | 1600s |
| Deposition time | 0 | 1600s | |
| Equilibration time | 0 | 1600s | |
| Step potential | 0.076mV | 250mV | |
| Pulse potential | 0.076mV | 250mV | |
| N data points | 3 | 1,000,000 | |
| NPV | Scan rate | 0.1mV/s (76.3 uV step) | 100mV/s (5mV step) |
| DPV | Pulse time | 10ms | 300ms |
| SWV | Frequency | 1Hz | 1250Hz |
| ACV | Frequency | 1Hz | 2000Hz |
| LSV | Scan rate | 0.01mV/s(76.3uV step) | 500V/s (10mV step) |
| CV | Scan rate | 0.01mV/s (76.3uV step) | 500V/s (200mV step) |
| FCV | Scan rate | 400mV/s (76.3uV step) | 500V/s (10mV step) |
| PAD | lnterval time | 50ms | 300s |
| Pulse time | 1ms | 1s | |
| N data points | 1,000,000(100 days at 10s interval) | ||
| MPAD | Pulse time | 100ms | 2s |
| Run time | 1.2s | 100,000s | |
| CA CP OCP | lnterval time | 0.4ms | 300s |
| Run time | 1ms | > year | |
| FAM | lnterval time | 0.02ms | 1s |
| Run time | 1ms | 30s | |
| N data points | 3 | 4000 for interval time,<0.2ms | |
| EIS | Interval time between measuring frequencies | ~900ms | |
|
