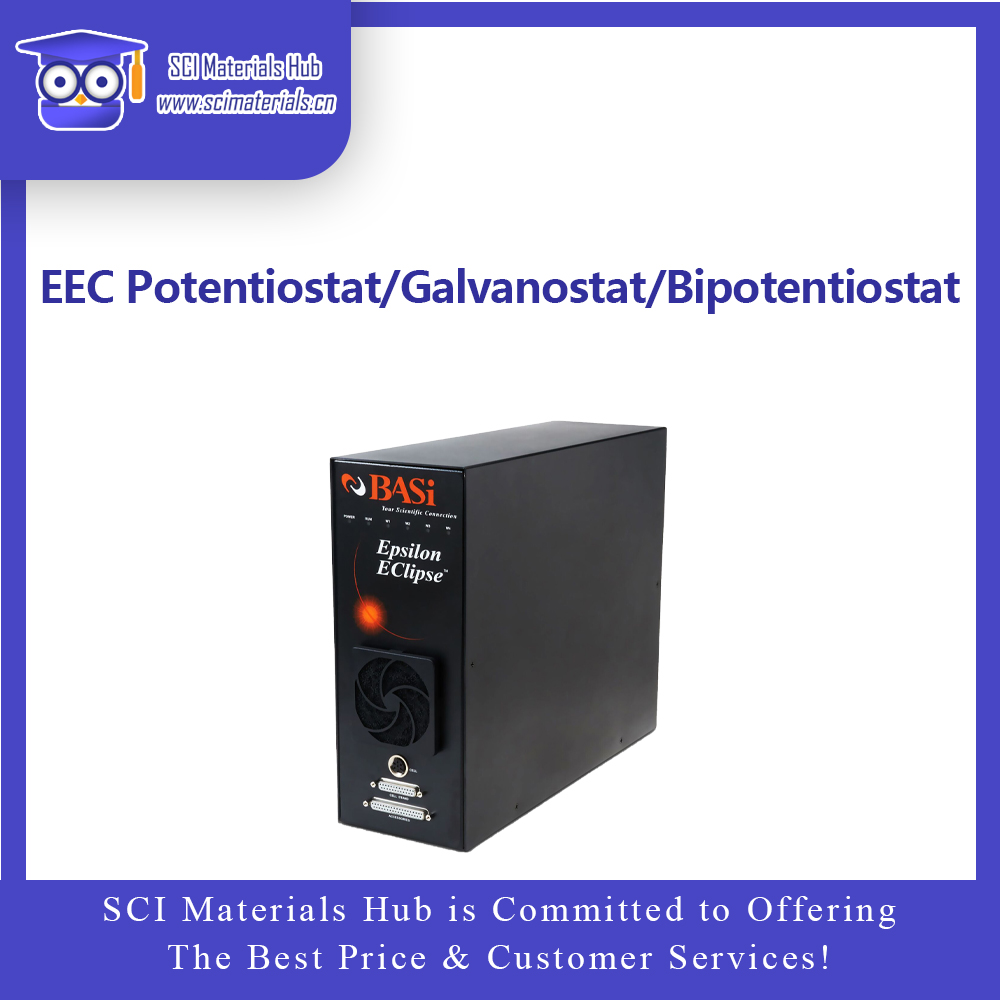

The Epsilon EClipseTM is the latest electrochemical analyzer manufactured. It is a potentiostat/galvanostat with a second working electrode for bipotentiostat measurements. Software with the most popular electrochemistry techniques is included with the instrument.

This System Includes:

Basic Software - techniques include:

Cyclic Voltammetry/Linear Sweep Voltammetry

Chronoamperometry/Chronocoulometry

Controlled Potential Electrolysis

DC Potential Amperometry

Open Circuit Potential vs. Time

Chronopotentiometry

Basic Plus Software - techniques include:

Sampled Current Polarography

Normal Pulse Voltammetry/Polarography

Differential Pulse Voltammetry/Polarography

Square Wave Voltammetry

Stripping Voltammetry Techniques

Double Potential Step Chronopotentiometry

Methods Software - techniques include:

Prepare sequences with an unlimited number of techniques

Insert trigger and delays in sequence

Repeat sequence up to 9999 times

Bi-Potentiostat - techniques include:

Multi-Channel Amperometry

Multi-Channel Cyclic Voltammetry

Multi-Channel Chronoamperometry

10' USB Cable
Bi-Potentiostat cell lead cable

Potentiostat

Channel 1 applied potential: Dynamic DAC: 16 bit, ±3.275 V @ 0.1 mV resolution or ±10 V @ 0.33 mV resolution

Offset DAC: 8 bit, ±2.55 V @ 10 mV resolution

Channel 2 applied potential: Dynamic DAC: 8 bit, ±2.55 V @ 10 mV resolution

Compliance voltage: ±12 V

Maximum current: 100 mA

Bandwidth: > 100 kHz

Bias current: < 1pA

Electrometer input impedance: > 1012W

(values for parameters other than applied potential are for both channels)

Current-to-voltage converter

Full scale sensitivity: 1 nA*, 10 nA*, 100 nA, 1 μA, 10 μA, 100 μA, 1 mA, 10 mA,100 mA, (*secondary gain used)

Secondary gain: x1, x10, and x100

ADC resolution: 16 bit

Sampling rate: 50 kHz (20 μs/conversion)

Data length: up to 64k points - fast

Galvanostat

Applied current: 50 pA - 50 mA

Range: ±10 V ± 1 V

Measured potential resolution: 0.02 mV

Max leakage current: 30 pA

I/O

Eout (applied potential)

Iout (current to voltage output)

Ein (input connection for external applied wave form)

Cell Stand port (control of C-3 Cell Stand and CGME)

Ordering Port (control of RDE-2)

PC (USB) port

Trigger out (TTL)

Minimum PC requirements

Win 7 or higher

Pentium III

512 MB RAM

50 MB hard drive space available

USB port

Power requirements

120 or 240 VAC, 50/60 Hz, 60 VA

Dimensions & weight

15.75" (40 cm) x 5.25" (13 cm) x 12.75" (32.5 cm)

17.5 lb (7.4 kg) (1 channel)

For internaltional orders, please ask us for quotes via

Email: contact@scimaterials.cn

Tel: +86 15375698751

Wechat: SCI-Materials-Hub

Part Number	Product	Product Image	Price ($)
EF-1031	Epsilon EClipse Potentiostat/Galvanostat/Bipotentiostat Use for PC		11518
MF-8285	Laptop with Pre-loaded Software		2438

Worldwide shipping via DHL, SF-Express & other requested carriers.

Payments via Bank Transfer, Paypal, Credit card (via Alibaba), Alipay, Wechat-pay are accepted.
