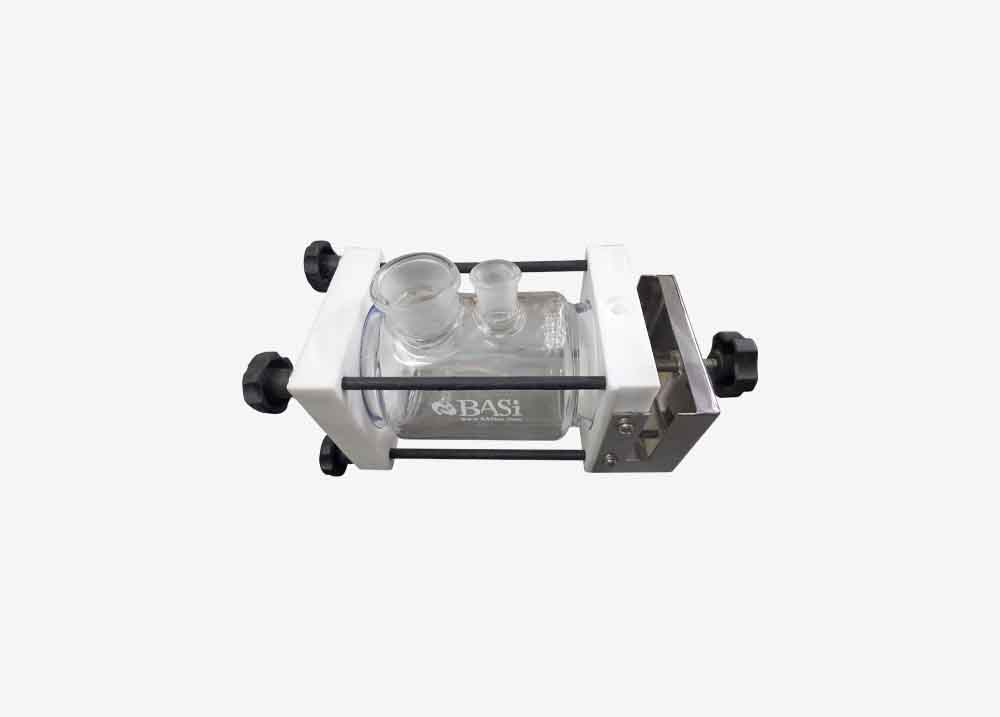

The IP-U-CCG-FS250 is a fully equipped, horizontally mounted corrosion cell set-up that can be used with any Potentiostat / Galvanostat / Impedance Analyzer in the world. Rather than a dedicated sample holder, the sample coupon can be easily mounted or replaced onto the cell in less than 10 seconds. This set-up heavily suits the corrosion scientists, analysts and researchers that have a high through-put requirement for conducting analysis on coupons with square, rectangular, circular, or any other shapes. The construction is typically gas-tight, has dedicated ports for electrode insert, and is also available in a jacketed version for thermal control. For more customizations, we can offer the entire set-up in acrylic material in case of very harsh or rough environments.

Available Volumes: 250 mL

Customization Options & Cell Types: 1) Glass type with Teflon support; 2) Jacketed Glass type with Teflon support and 3) A Complete Acrylic Cell

Coupon Dimensions: The available exposed surface area is 1 cm2. Minimum requirements: Circular (16 mm diameter) or Square (4 mm x 4 mm). Thickness requirements: 0.5mm to 8 mm.

Wet Parts: Glass & silicon and thus, no limitations due to pH of electrolyte.

Includes: A 250 mL glass reservoir, 6 mm diameter graphite rod counter electrode, a stainless-steel SS430 coupon for sample analysis, lugging capillary and all the other accessories for plug n play analysis.

Related applications:

All types of EC based corrosion analysis for square, rectangular & circular coupons

High through-put analysis that require fast and easy assembly / disassembly process

Corrosion measurements with thermal control between 3 deg. C to 90 deg.C

Completely acrylic version available for highly corrosive environments

Corrosion measurements in organic solutions

For internaltional orders, please ask us for quotes via

Email: contact@scimaterials.cn

Tel: +86 15375698751

Wechat: SCI-Materials-Hub

Part Number	Product	Product Image	Price ($)
IP-U-CCG-FS250	EC Corrosion Test Kit (Flat Cell)		1520

Worldwide shipping via DHL, SF-Express & other requested carriers.

Payments via Bank Transfer, Paypal, Credit card (via Alibaba), Alipay, Wechat-pay are accepted.
