Product Overview
DiffuCarb® E202c and DiffuCarb® E222c are platinum-based carbon paper electrodes for HT-PEMFC applications. They are suitable for high-temperature PEM fuel cell research, single-cell testing, membrane electrode assembly preparation, backup power systems, and hydrogen fuel cell vehicle validation.
Both electrodes use highly conductive carbon paper as the substrate and a PTFE binder system to balance electrical conductivity, gas permeability, hydrophobicity, and high-temperature structural stability. E202c uses a platinum/high-surface-area carbon supported catalyst system, emphasizing durability and platinum utilization. E222c uses a high-surface-area platinum black system, emphasizing abundant active sites and fast reaction response.
DiffuCarb® E202c
Pt/HSC carbon paper electrode. Recommended for stable high-temperature operation, long-term continuous use, and HT-PEMFC systems requiring strong structural durability.
DiffuCarb® E222c
High-surface-area Pt Black carbon paper electrode. Recommended for high reaction activity, fast dynamic response, and high-performance fuel cell output.

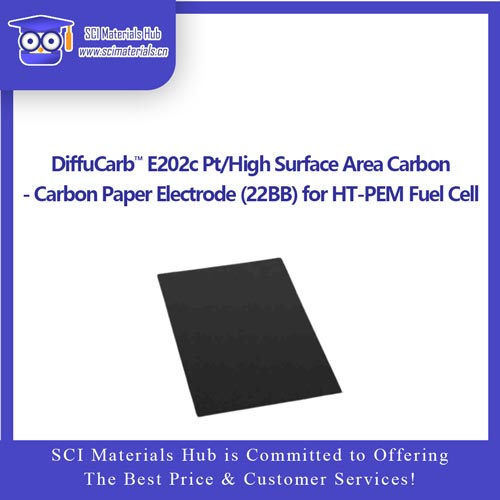

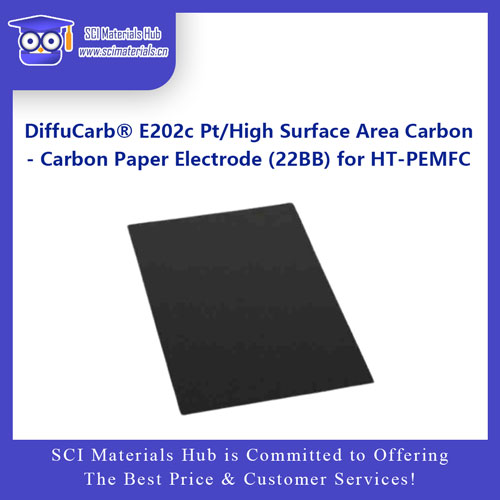

DiffuCarb® E202c Pt/HSC Carbon Paper Electrode (22BB)
DiffuCarb® E202c is a high-performance electrode material designed for high-temperature PEM fuel cells. It uses highly dispersed platinum catalyst supported on high-surface-area carbon, bonded into conductive carbon paper with PTFE. This structure is suitable for harsh operating environments while balancing catalytic efficiency, structural stability, and gas diffusion capability.
DiffuCarb® E222c High-Surface-Area Pt Black Carbon Paper Electrode (22BB)
DiffuCarb® E222c uses highly active platinum black as the core catalyst, providing a large reaction surface area and improving reaction rates for hydrogen oxidation and oxygen reduction. Combined with porous carbon paper and a PTFE binder system, it balances electrical conductivity, gas permeability, and high-temperature stability.
Key Advantages
High-Temperature Compatibility
Suitable for 120–200°C HT-PEMFC operating conditions and high-temperature MEA testing.
PTFE Binder System
PTFE helps improve hydrophobicity, structural support, and electrode stability under high-temperature operation.
22BB Carbon Paper Substrate
Highly conductive carbon paper provides the foundation for gas diffusion, current collection, and catalyst layer support.
Long-Term Operation
E202c emphasizes structural stability and durability for continuous operation.
High Reaction Activity
E222c uses Pt Black to provide richer active sites and faster reaction response.
Research and System Validation
Suitable for HT-PEMFC single cells, MEAs, high-temperature backup power, and hydrogen energy research.
Selection Guide
For stable durability and excellent temperature resistance: choose DiffuCarb® E202c. Its Pt/HSC supported catalyst structure is better suited for long-term high-temperature operation, stable output, and durability-focused applications.
For higher reaction activity and faster dynamic response: choose DiffuCarb® E222c. Its high-surface-area Pt Black system is better suited for high reaction rates, abundant active sites, and performance-oriented output.
Product Comparison | DiffuCarb® High-Temperature PEMFC Carbon Paper Electrode Series
| Item | DiffuCarb® E202c Pt/HSC Carbon Paper Electrode | DiffuCarb® E222c High-Surface-Area Pt Black Carbon Paper Electrode |
|---|---|---|
| Applicable System | High-Temperature PEM Fuel Cell HT-PEMFC | High-Temperature PEM Fuel Cell HT-PEMFC |
| Operating Temperature | 120°C–200°C | 120°C–200°C |
| Catalyst Type | Platinum nanoparticles supported on high-surface-area carbon | High-surface-area platinum black |
| Catalyst Distribution | Highly dispersed supported catalyst structure for improved platinum utilization | Uniformly distributed Pt Black with abundant active sites |
| Substrate Material | Highly conductive 22BB carbon paper | Highly conductive 22BB carbon paper |
| Binder | Polytetrafluoroethylene PTFE | Polytetrafluoroethylene PTFE |
| Gas Diffusion Capability | Excellent Carbon paper + PTFE hydrophobic structure | Excellent Porous carbon paper structure |
| Mechanical Stability | Strong, suitable for long-term operation | Strong, heat-resistant and oxidation-resistant |
| Recommended Applications | High-temperature backup power, hydrogen fuel cell vehicles, industrial power generation | Hydrogen fuel cell vehicles, portable high-temperature power supplies, high-efficiency power generation |
| Feature Summary | Balanced performance, stable and durable | High activity, fast response |
Recommended Application Scenarios
High-Temperature Backup Power
Suitable for backup power systems requiring stable output and long operation under high-temperature conditions.
Hydrogen Fuel Cell Vehicles
Suitable for HT-PEMFC electrode screening and performance validation in fuel cell vehicle research.
Industrial Power Generation
Suitable for electrode structure evaluation and material validation in high-temperature fuel cell power systems.
Portable High-Temperature Power Supplies
Suitable for compact systems requiring fast response, high activity, and high-performance output.
MEA Preparation
Can be used as a gas diffusion electrode for HT-PEMFC membrane electrode assembly matching.
Research Testing and Comparison
Suitable for universities, research institutes, and industrial R&D teams comparing HT-PEMFC electrode materials.
Product Summary
DiffuCarb® E202c and E222c are 22BB carbon paper electrodes for high-temperature PEMFC applications. Both use a PTFE binder system and are suitable for 120–200°C operation. E202c uses a Pt/HSC supported catalyst structure and is better suited for stable durability and long-term operation. E222c uses a high-surface-area Pt Black structure and is better suited for high activity, fast dynamic response, and high-performance output.
