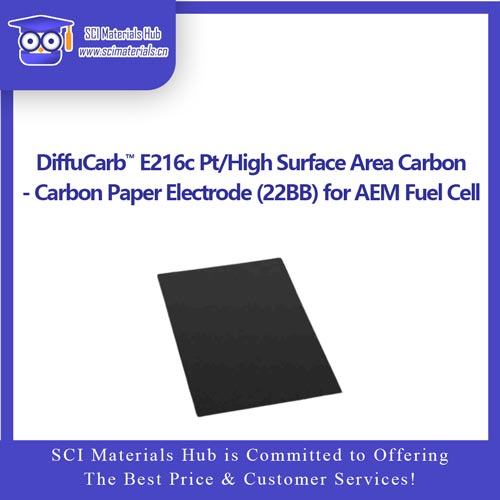

DiffuCarb® E216c / E217c Platinum-Based Carbon Paper Electrodes
(SGL 22BB with MPL, for AEMFC and AFC)
DiffuCarb® E216c and E217c are high-performance electrodes based on SGL 22BB carbon paper with a microporous layer (MPL) and hydrophobic PTFE treatment. Designed for use in Anion Exchange Membrane Fuel Cells (AEMFC) and Alkaline Fuel Cells (AFC), these electrodes feature platinum-based catalysts optimized for durability, gas diffusion, and electrochemical performance.
✅ Includes post-coating with anion exchange ionomers such as Fumion®, PiperION™, or NEXIONIC®, improving membrane adhesion and water management.
📦 Advanced Substrate: Made with SGL 22BB carbon paper featuring a PTFE-treated MPL for enhanced gas diffusion and hydrophobicity.
⚗️ Catalyst Options:
E216c: Platinum nanoparticles supported on high-surface-area carbon (e.g., carbon black)
E217c: Pt black catalyst with ultra-high electrochemical surface area
🧴 Post-Coat Treatment: Anion-exchange ionomer layer improves membrane-electrode interface stability and enhances OH⁻ ion conductivity.
🛠 Fully Customizable: Available with tailored Pt loading (0.02–4 mg/cm²), size, shape, dual-electrode format, or hot-pressed structures.
| Feature | DiffuCarb® E216c Pt/High-Surface Carbon - Carbon Paper | DiffuCarb® E217c Pt Black - Carbon Paper |
|---|---|---|
| Substrate | SGL 22BB carbon paper (MPL + PTFE) | Same as E216c |
| Catalyst Type | Pt on high-surface-area carbon support | Pt black (nanoparticles) |
| Surface Area Advantage | Enhanced dispersion of Pt for better utilization | High intrinsic ECSA |
| Recommended Use | Suitable for both anode and cathode (HOR/ORR) | Ideal for cathode (ORR); usable at anode |
| Water Management | Excellent via MPL + PTFE + post-coating | Equally good, optimized for gas-water balance |
| Performance | Long-term stable, anti-agglomeration | High initial activity, may decline over time |
| Durability | High Pt dispersion enhances lifetime | Pt loss or aggregation can occur |
| Cost Efficiency | Better Pt utilization for cost/performance | Good for short-term testing |
| Post-Coat Layer | Fumion®, PiperION™, or NEXIONIC® ionomer | Same |
| Custom Pt Loading | 0.02–1.0 mg/cm² (adjustable) | 1–4 mg/cm² (adjustable) |
Anode and Cathode in AEMFC / AFC systems
Electrochemical research, ORR/HOR studies
Hydrogen sensors and membrane electrode assemblies (MEA)
Lab-scale and industrial test benches for fuel cell development
📏 Standard sizes: 5×5 cm, 10×10 cm, 20x20cm, or fully customizable
🛠️ Electrode structures: Spray-coated, hot-pressed, GDE, dual-electrode formats
For international orders, please ask us for quotes via
Email: contact@scimaterials.cn
Tel: +86 130-0303-8751 / +86 156-0553-2352
Wechat: SCI-Materials-Hub
Clik here to put quick orders on our Amazon / ebay store.
DiffuCarb™ E216c Pt/HSC - Carbon Paper Electrode (22BB) for AEM Fuel Cell | ||||
Electrode Type | Carbon paper and Thickness | Pt loading | Catalysts | Price and Specifications |
| E216c 0.1 mg/cm² 20% Pt/HSC - Carbon Paper Electrode (22BB) for AEMFC | 22BB, ~0.22mm | 0.1 mg/cm² Pt | 20% Pt(2-2.5nm) /High Surface Area Carbon | 5x5cm², $80；10x10cm², $240 15x15cm², $500；20x20cm², $580 |
| E216c 0.2 mg/cm² 20% Pt/HSC - Carbon Paper Electrode (22BB) for AEMFC | 22BB, ~0.22mm | 0.2 mg/cm² Pt | 20% Pt(2-2.5nm) /High Surface Area Carbon | 5x5cm², $90；10x10cm², $256 15x15cm², $516；20x20cm², $596 |
E216c 0.3 mg/cm² 30% Pt/HSC - Carbon Paper Electrode (22BB) for AEMFC | 22BB, ~0.22mm | 0.3 mg/cm² Pt | 30% Pt(2-2.5nm) /High Surface Area Carbon | 5x5cm², $92；10x10cm², $260 15x15cm², $536；20x20cm², $636 |
E216c 0.3 mg/cm² 40% Pt/HSC - Carbon Paper Electrode (22BB) for AEMFC | 22BB, ~0.22mm | 0.3 mg/cm² Pt | 40% Pt(2-2.5nm) /High Surface Area Carbon | 5x5cm², $92；10x10cm², $260 15x15cm², $536；20x20cm², $636 |
E216c 0.4 mg/cm² 50% Pt/HSC - Carbon Paper Electrode (22BB) for AEMFC | 22BB, ~0.22mm | 0.4 mg/cm² Pt | 50% Pt(2-2.5nm) /High Surface Area Carbon | 5x5cm², $96；10x10cm², $270 15x15cm², $540；20x20cm², $656 |
E216c 0.5 mg/cm² 60% Pt/HSC - Carbon Paper Electrode (22BB) for AEMFC | 22BB, ~0.22mm | 0.5 mg/cm² Pt | 60% Pt(2.5-3.0nm) /High Surface Area Carbon | 5x5cm², $98；10x10cm², $276 15x15cm², $556；20x20cm², $676 |
E216c 1 mg/cm² 70% Pt/HSC - Carbon Paper Electrode (22BB) for AEMFC | 22BB, ~0.22mm | 1 mg/cm² Pt | 70% Pt(3.0nm) /High Surface Area Carbon | 5x5cm², $130；10x10cm², $376 15x15cm², $756；20x20cm², $916 |
| SCI Materials Hub is Committed to Offerig The Best Price & Customer Services! | ||||
The following information can be customized according to user needs
Catalyst loading, catalyst brand,ionomer, binder and carbon paper.
Worldwide shipping via DHL, SF-Express & other requested carriers.
Payments via Bank Transfer, Paypal, Credit card (via Taobao), Alipay, Wechat-pay are accepted.
