DiffuCarb™ E257c High Surface Area PtRu Black Electrode
MGL370 · PtRu Black · Anionic Binder · AEMFC / AFC / AEMWE

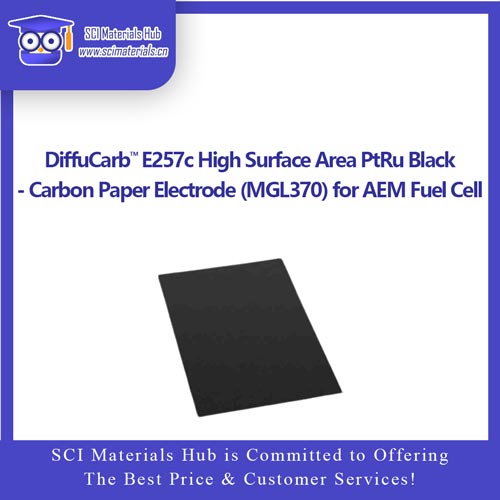

The DiffuCarb™ E257c High Surface Area PtRu Black-Carbon Paper Electrode (MGL370) is specifically designed for Anion Exchange Membrane Fuel Cells (AEMFC), Alkaline Fuel Cells (AFC), and Alkaline Water Electrolysis (AEMWE).
The electrode utilizes a high-surface-area PtRu Black catalyst that provides a large number of active sites for electrocatalytic reactions. The catalyst is integrated with porous MGL370 carbon paper, while an anionic binder is incorporated to improve ion transport and catalyst-layer cohesion under alkaline operating conditions.
High-Surface-Area PtRu Black
Provides a large catalytic surface for HOR, ORR and related alkaline electrochemical reactions.
CO-Tolerance Positioning
The Pt/Ru combination is used to reduce CO-poisoning effects on catalyst activity.
MGL370 Carbon Paper
Provides a porous, conductive platform for gas diffusion, electrical conduction and electrode support.
Anionic Binder
Supports alkaline ion transport and helps maintain catalyst-layer integrity.
Electrode Structure & Material Features
High Surface Area PtRu Black / MGL370 / Anionic Binder
High Surface Area PtRu Black Catalyst
PtRu Black offers a large active surface area and is positioned for hydrogen oxidation reaction (HOR), oxygen reduction reaction (ORR), and related alkaline electrocatalytic processes.
MGL370 Carbon Paper Substrate
MGL370 provides a porous, electrically conductive platform for the catalyst layer, supporting gas diffusion and electrode stability. The supplied product description also positions the substrate for water-management functions.
Anionic Binder
The anionic binder is used to improve ion exchange in alkaline conditions while helping bind the catalyst layer to the carbon-paper substrate.
| Component | Material / Structure | Primary Function |
|---|---|---|
| Catalyst | High Surface Area PtRu Black | High active-site availability for alkaline electrocatalysis |
| Pt/Ru System | PtRu (1:1) | Pt-based catalytic activity with Ru-assisted CO tolerance |
| Carbon Paper | MGL370, ~0.4 mm | Gas diffusion, electrical conduction and mechanical support |
| Binder | Anionic binder | Alkaline ion transport and catalyst-layer cohesion |
Key Advantages
High electrocatalytic activity, gas transport, alkaline durability and ion conductivity
High Electrocatalytic Activity
The large surface area of PtRu Black increases the number of accessible reaction sites.
Efficient Gas Transport
The porous MGL370 structure supports hydrogen and oxygen diffusion through the electrode.
Durability in Alkaline Conditions
The supplied product description positions the PtRu Black catalyst and carbon substrate for stable alkaline operation.
Improved Ion Conductivity
The anionic binder enhances ion mobility within the catalyst layer and supports overall electrode efficiency.
Typical Applications
AEMFC, AFC and alkaline water-electrolysis systems
Anion Exchange Membrane Fuel Cells
Designed for AEMFC electrode development requiring high catalytic activity, gas diffusion and alkaline ion conduction.
Alkaline Fuel Cells
Suitable for AFC systems supporting hydrogen oxidation and oxygen reduction under alkaline conditions.
Alkaline Water Electrolysis
Can be used in AEMWE-related cathodic research to support the hydrogen evolution reaction (HER) under compatible operating conditions.
Product Summary
High Surface Area PtRu Black + MGL370 + Anionic Binder
Catalyst Layer
PtRu Black provides a high-surface-area electrocatalytic interface.
Porous Substrate
MGL370 provides gas-transport pathways, conductivity and structural support.
Anionic Binder
Supports alkaline ion transport and catalyst-layer cohesion.
DiffuCarb™ E257c Model / Specification / Price Table
USD pricing below follows the data supplied for this product
| Model / Catalyst System | Carbon Paper & Thickness | PtRu Loading | Catalyst | 5×5 cm² | 10×10 cm² | 15×15 cm² | 20×20 cm² |
|---|---|---|---|---|---|---|---|
| E257c · 1.0 mg/cm² · High Surface Area PtRu Black | MGL370, ~0.4 mm | 1.0 mg/cm² PtRu | High Surface Area PtRu (1:1) | $100 | $276 | $556 | $796 |
| E257c · 1.5 mg/cm² · High Surface Area PtRu Black | MGL370, ~0.4 mm | 1.5 mg/cm² PtRu | High Surface Area PtRu (1:1) | $110 | $316 | $636 | $856 |
| E257c · 2.0 mg/cm² · High Surface Area PtRu Black | MGL370, ~0.4 mm | 2.0 mg/cm² PtRu | High Surface Area PtRu (1:1) | $120 | $349 | $696 | $916 |
| E257c · 3.0 mg/cm² · High Surface Area PtRu Black | MGL370, ~0.4 mm | 3.0 mg/cm² PtRu | High Surface Area PtRu (1:1) | $140 | $396 | $796 | $1116 |
| E257c · 4.0 mg/cm² · High Surface Area PtRu Black | MGL370, ~0.4 mm | 4.0 mg/cm² PtRu | High Surface Area PtRu (1:1) | $156 | $456 | $912 | $1376 |
Custom Electrode Configuration
The following parameters can be customized according to user requirements
Catalyst Loading
PtRu Black loading can be adjusted according to the target AEMFC / AFC / AEMWE electrode design.
Catalyst Brand / Type / Model
Catalyst brand, catalyst family and specific model can be customized.
Ionomer / Binder
Anionic ionomer or binder brand, model and ratio can be customized.
Carbon Paper
Carbon-paper brand and model can be selected according to gas-transport, conductivity and water-management requirements.
International Orders & Shipping
For quotations, bulk orders, custom configurations or international procurement, contact SCI Materials Hub.
