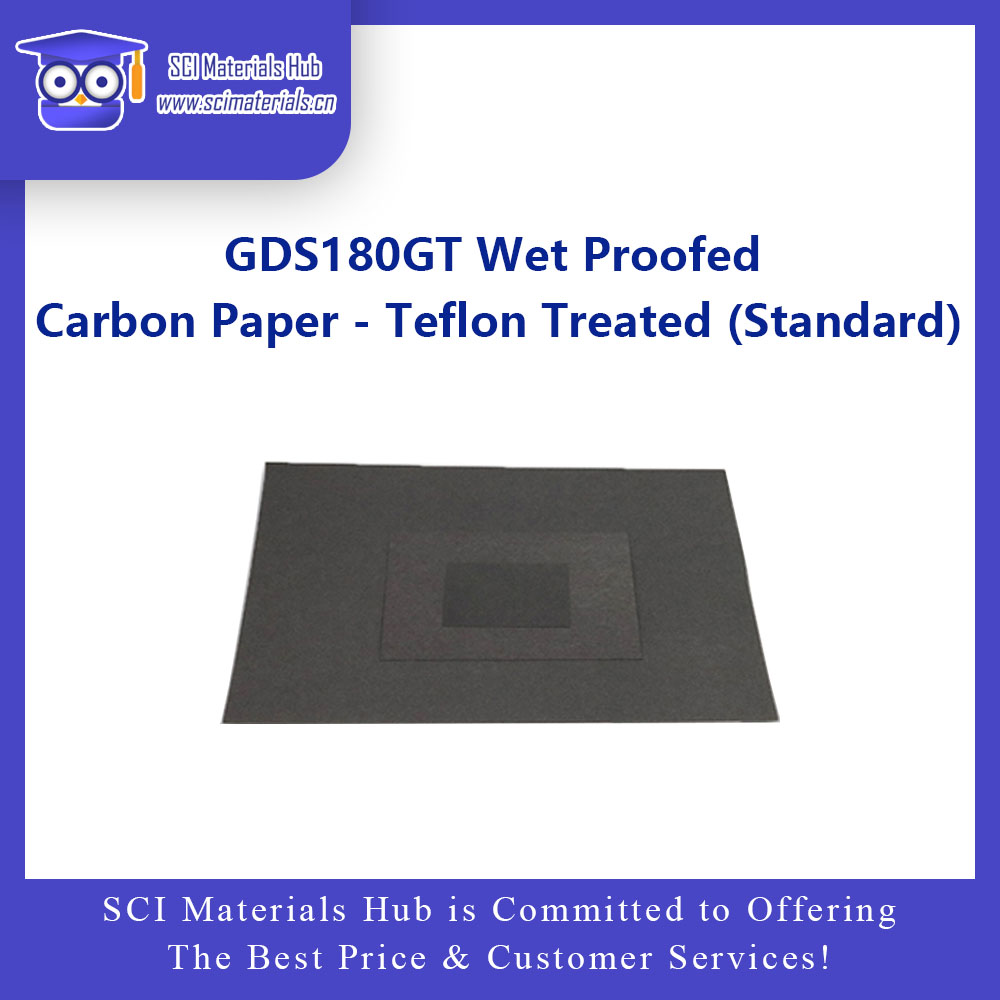

GDS-T / GDS-F Series Hydrophobic Carbon Paper

High-Performance Hydrophobic Carbon Paper Solutions Based on CeTech GDS Substrate

Scientific Materials Hub has developed two high-performance hydrophobic carbon paper series based on CeTech GDS raw carbon paper:

• GDS-T series (PTFE hydrophobic layer)

• GDS-F series (FEP hydrophobic layer)

These products are designed for advanced electrochemical applications requiring optimized gas–liquid management and stable three-phase interfaces.

Core Functions and Improvements

Through engineered hydrophobic treatment, the GDS-T / GDS-F series significantly improve:

• Gas diffusion capability

• Electrode water management

• Flooding resistance

• Stability of the gas–liquid–solid triple-phase interface

Key Application Areas

• ⚡ PEM Fuel Cells (PEMFC)

• ⚡ CO₂ Electroreduction (CO₂RR)

• ⚡ Water Electrolysis (AEMWE / PEMWE)

• ⚡ Gas Diffusion Electrodes (GDE)

• ⚡ Metal–Air Batteries

• ⚡ Electrocatalysis and Energy Storage Systems

Difference Between GDS-T and GDS-F

Hydrophobicity Definition

Hydrophobicity refers to the mass ratio of hydrophobic agent in the final carbon paper:

Hydrophobicity = PTFE (or FEP) / (Carbon Paper + PTFE/FEP)

Customizable Hydrophobic Levels

Scientific Materials Hub supports a wide range of hydrophobic tuning:

Custom Structures Available

• Single-side hydrophobic treatment

• Double-side hydrophobic treatment

• Gradient hydrophobic structure

• Localized pattern hydrophobicity

GDS Substrate & Hydrophobic Model Mapping

Core Product Advantages

Typical Applications

Custom Services by SCI Materials Hub

Scientific Materials Hub provides:

• Customized hydrophobic levels

• Tailored dimensions and cutting

• Single/double-side hydrophobic processing

• GDE fabrication support

• MEA / CCM manufacturing

• Electrolyzer system integration solutions

FAQ

Q1: How to choose PTFE vs FEP?

• PTFE: Suitable for conventional fuel cells and standard GDL applications

• FEP: Better for hot-pressing processes and advanced composite structures

Q2: Is higher hydrophobicity always better?

Not necessarily.

Excessive hydrophobicity may cause:

• Poor electrolyte wetting

• Reduced ion transport

• Increased contact resistance

Optimization is required based on system design.

Q3: Is single-side hydrophobic treatment available?

Yes.

Options include:

• Single-side hydrophobic

• Double-side hydrophobic

• Gradient hydrophobic structures

Q4: Is it suitable for catalyst coating and GDE fabrication?

Yes.

Compatible with:

• Catalyst spraying

• Hot pressing

• GDE fabrication

• CCM production

Summary

The GDS-T (PTFE) and GDS-F (FEP) hydrophobic carbon paper series are developed from CeTech GDS raw carbon paper, offering:

• High electrical conductivity

• Excellent hydrophobic performance

• High porosity

• Strong mechanical stability

They are key materials for fuel cells, CO₂ electrolysis, water electrolysis, and GDE-based systems.

SCI Materials Hub provides:

• Multi-specification in-stock products

• Customized hydrophobic treatments

• GDE / MEA integrated solutions

• Full electrochemical system support

Enabling advanced electrochemical research and industrial-scale applications.

For international orders, please ask us for quotes via

Email: contact@scimaterials.cn

Tel: +86 130-0303-8751 / +86 156-0553-2352

Worldwide shipping via DHL, SF-Express & other requested carriers.

Payments via Bank Transfer, Paypal, Credit card (via Taobao), Alipay, Wechat-pay are accepted.
