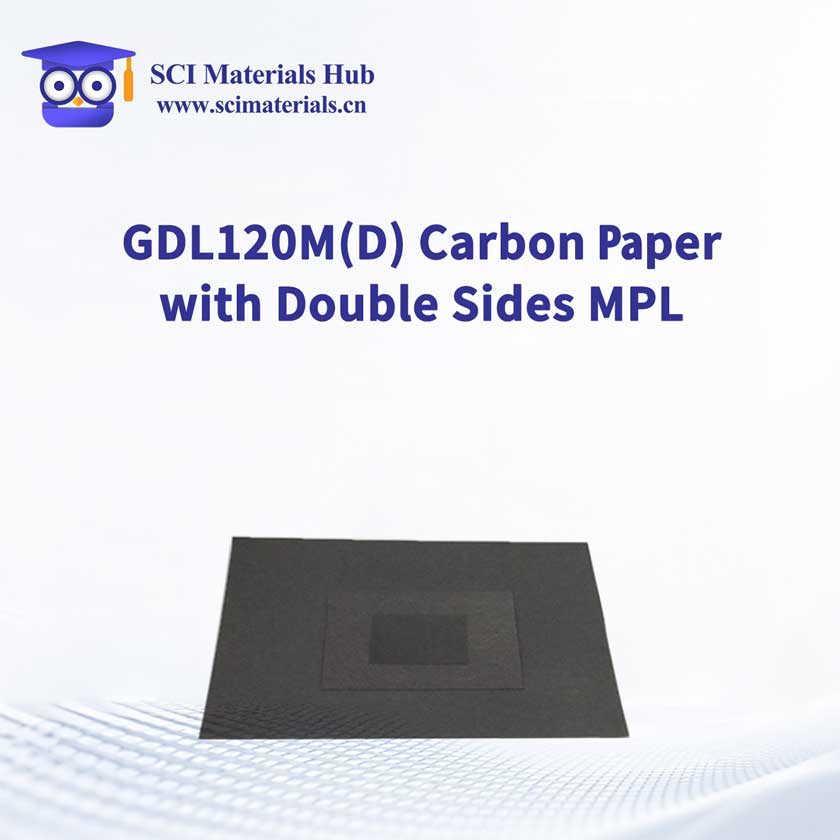

DiffuCarb ™ double-sided hydrophobic microporous layer carbon paper is a special material mainly used for gas diffusion layer (GDL) in fuel cells and electrolysis processes.

Double sided hydrophobic microporous layer carbon paper is a carbon based material with a microporous layer covering its surface and subjected to hydrophobic treatment. This type of carbon paper is usually made of carbon fiber, which has high conductivity and mechanical strength. The double-sided treatment of the microporous layer can effectively improve its performance in fuel cells.

Characteristics of DiffuCarbon Paper with Double sided Hydrophobic Microporous Layer

1. Hydrophobicity: Double sided hydrophobic treatment can prevent water from accumulating on the surface and micropores of carbon paper, ensuring smooth passage of fuel gases (such as hydrogen and oxygen) and preventing water from blocking gas channels.
2. Double sided microporous layer: The dual sided microporous layer structure improves the efficiency of gas diffusion, allowing gas to be more evenly distributed on the catalyst layer and enhancing the overall performance of the battery.
3. High conductivity: Carbon paper itself has good conductivity and can effectively conduct current.
4. High mechanical strength: The carbon fiber structure endows carbon paper with high mechanical strength, which can withstand pressure changes during battery operation.The carbon fiber structure endows carbon paper with high mechanical strength, which can withstand pressure changes during battery operation.
5. Chemical stability: Carbon paper has high chemical stability in the working environment of fuel cells and is not prone to chemical corrosion.

Application of DiffuCarbon Paper with Double sided Hydrophobic Microporous Layer in Fuel Cells and Electrolytic Cells

1. Proton Exchange Membrane Fuel Cell (PEMFC):

   • Gas diffusion layer: Double sided hydrophobic microporous layer carbon paper as GDL can improve the diffusion efficiency of hydrogen and oxygen, optimize water management, prevent water accumulation, and thus enhance the efficiency and lifespan of fuel cells.
   • Electrode support material: Its high conductivity and mechanical strength make it an ideal choice for electrode materials, ensuring efficient current conduction.

2. Electrolytic cell (such as water electrolysis for hydrogen production):

   • Electrode substrate material: Carbon paper, as the substrate of the electrode, has high conductivity and hydrophobicity, which can improve electrolysis efficiency, prevent gas production from forming bubbles on the electrode surface, and thus improve the stability and efficiency of the electrolysis process.
   • Gas management: The double-sided hydrophobic properties help with the emission of hydrogen and oxygen, avoiding gas retention and electrode blockage.

3. Solid Oxide Fuel Cell (SOFC):

   • Electrode material: Under high temperature conditions, the chemical stability and high conductivity of carbon paper make it an ideal material for SOFC electrodes, which can operate stably for a long time at high temperatures.

4. Other electrochemical devices:

   • Supercapacitors and batteries: The high conductivity and mechanical strength of carbon paper also make it suitable for other electrochemical devices, such as supercapacitors and batteries, as electrode materials to improve device performance.

summary

Double sided hydrophobic microporous layer carbon paper has a wide range of application prospects in fuel cells and electrolytic cells due to its unique structure and excellent characteristics. It can significantly improve the performance and stability of these devices and is an important material in the field of new energy.

For international orders, please ask us for quotes via

Email: contact@scimaterials.cn

Tel: +86 130-0303-8751 / +86 156-0553-2352

Note: The standard PTFE content for enhancing the MPL layer is 20wt%, which users can also specify and inquire about.

Worldwide shipping via DHL, SF-Express & other requested carriers.

Payments via Bank Transfer, Paypal, Credit card (via Taobao), Alipay, Wechat-pay are accepted.

For bulk orders, please ask us for quote. We are the authorized distributor of CeTech and usually have enough stock!
