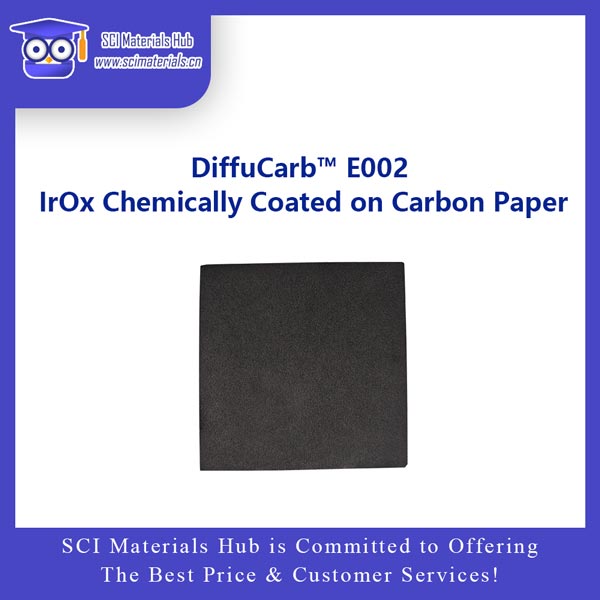

DiffuCarb™ E002 IrOx Chemically Coated on Carbon Paper

  • Product Code：
  • Description：
  • Brand：DiffuCarb™
  • Lead time：3-7 days
  • Views：
  • Telephone：+86 153-5789-9751; +86 156-0553-2352
  • Keywords：DiffuCarb™ E002 IrOx Chemically Coated on Carbon Paper, SCI Materials Hub
DiffuCarb™ E002 / E002PT IrOx Chemically Coated Carbon Paper Electrodes
DiffuCarb™ E002 / E002PT IrOx Electroless Coating Carbon Paper Platinized Carbon Paper OER 1.0–4.0 mg/cm² IrOx

IrOx Chemically Coated on Carbon Paper
IrOx Chemically Coated on Platinized Carbon Paper

DiffuCarb™ E002 and DiffuCarb™ E002PT are composite electrode materials based on an IrOx catalytic layer. E002 uses carbon paper as the substrate, while E002PT uses the corresponding platinized carbon paper. Both product families are designed for water electrolysis, fuel cells and other electrochemical systems, with particular emphasis on oxygen evolution reaction (OER) applications.

IrOx Chemical Coating E002: Carbon Paper E002PT: Platinized Carbon Paper TGPH060 / A330R / H450R / H850R 1.0–4.0 mg/cm² IrOx 5×5 / 10×10 / 20×20 cm²
Quick Selection View Full Price Tables
01
PRODUCT OVERVIEW

Product Overview

DiffuCarb™ E002 · DiffuCarb™ E002PT · IrOx Electroless Coating

DiffuCarb™ E002 IrOx Chemically Coated on Carbon Paper and DiffuCarb™ E002PT IrOx Chemically Coated on Platinized Carbon Paper are two electrode platforms that combine an IrOx catalytic layer with a porous, conductive substrate. The key difference lies in the substrate: E002 uses raw carbon paper, whereas E002PT uses the corresponding platinized carbon paper.

IrOx

IrOx Catalytic Layer

IrOx is positioned for OER electrocatalysis, combining high catalytic activity with stability in electrochemical environments.

CP

E002 · Carbon Paper

Uses conductive porous carbon paper for electron transfer, reactant transport and mechanical support.

Pt

E002PT · Platinized Carbon Paper

Adds a Pt-coated interface to improve conductivity and stability positioning under demanding conditions.

4×4

4 Substrates × 4 Loadings

TGPH060 / A330R / H450R / H850R with 1.0–4.0 mg/cm² IrOx.

DiffuCarb™ E002 / E002PT Substrate & Specification Overview
Carbon PaperE002E002PTIrOx LoadingSizes
TGPH060IrOx Chemically Coated on Carbon PaperIrOx Chemically Coated on Platinized Carbon Paper1.0 / 2.0 / 3.0 / 4.0 mg/cm²5×5 / 10×10 / 20×20 cm²
A330RIrOx Chemically Coated on Carbon PaperIrOx Chemically Coated on Platinized Carbon Paper1.0 / 2.0 / 3.0 / 4.0 mg/cm²5×5 / 10×10 / 20×20 cm²
H450RIrOx Chemically Coated on Carbon PaperIrOx Chemically Coated on Platinized Carbon Paper1.0 / 2.0 / 3.0 / 4.0 mg/cm²5×5 / 10×10 / 20×20 cm²
H850RIrOx Chemically Coated on Carbon PaperIrOx Chemically Coated on Platinized Carbon Paper1.0 / 2.0 / 3.0 / 4.0 mg/cm²5×5 / 10×10 / 20×20 cm²
02
E002 FEATURES

DiffuCarb™ E002 · IrOx / Carbon Paper

Carbon paper substrate · IrOx chemical coating · OER positioning

OER

High OER Catalytic Activity

According to the supplied description, IrOx effectively lowers the oxygen-evolution overpotential and supports efficient OER electrocatalysis.

STB

Electrochemical Stability

IrOx is described as stable in acidic and alkaline electrolytes and resistant to corrosion during prolonged operation.

e⁻

Conductive Carbon Paper

Carbon paper provides electrical conduction, porous mass transfer and mechanical strength for electrode assembly.

Typical applications include PEM, AEM and alkaline water-electrolysis research, as well as other electrochemical systems that require an IrOx catalytic interface. For strongly oxidizing anodic conditions, carbon-substrate stability should be evaluated together with the specific operating conditions.
03
E002PT FEATURES

DiffuCarb™ E002PT · IrOx / Platinized Carbon Paper

Pt-coated substrate · IrOx chemical coating · enhanced conductivity & stability positioning

Pt+Ir

Pt / IrOx Composite Interface

The Pt layer provides an additional conductive interface and catalytic contribution, working together with the IrOx layer.

COR

Enhanced Stability Positioning

The supplied description positions the Pt-coated substrate as a route to improved corrosion resistance and durability in harsher conditions.

ION

Improved Interfacial Transport

The dual-layer interface supports electron transfer while the porous carbon-paper structure assists electrolyte and reactant transport.

DiffuCarb™ E002PT uses the platinized version of the corresponding raw carbon paper, with a default platinum loading of 0.1 mg/cm² Pt.
04
COMPARISON

E002 vs. E002PT

Substrate structure · conductivity · stability · cost

Comparison ItemDiffuCarb™ E002DiffuCarb™ E002PT
SubstrateCarbon PaperCorresponding Platinized Carbon Paper
Surface StructureIrOx / Carbon PaperIrOx / Pt-Coated Carbon Paper
Default Pt LoadingNo Pt Plating0.1 mg/cm² Pt
Conductivity PositioningConductive carbon paper substrateAdditional Pt-coated conductive interface
Application PositioningGeneral research / cost-sensitive applicationsHigh-performance / more demanding operating conditions
CostRelatively lowerHigher due to the Pt-coated substrate
05
APPLICATIONS

Applications

PEM / AEM / ALK water electrolysis · fuel cells · electrochemical research

PEM Water Electrolysis

Used as an IrOx-based anode electrode platform for OER electrocatalysis and electrolyzer research.

AEM / Alkaline Water Electrolysis

Can be used in anion-exchange-membrane and alkaline electrolysis systems for IrOx electrode studies.

Fuel Cells & Other Electrochemical Devices

Suitable for research requiring an IrOx catalytic interface, a conductive porous substrate or a composite noble-metal interface.

The supplied product description includes positioning for high-current-density, strongly acidic and high-temperature operation. Actual long-term stability depends on potential window, electrolyte, temperature, compression, Pt/IrOx loading, substrate corrosion and electrolyzer design.
06
QUICK SELECTION

Quick Selection Price Table

Select the product series, carbon-paper substrate, IrOx loading, size and quantity to view the corresponding price.

Product SeriesDiffuCarb™ E002
Carbon PaperToray TGPH060
IrOx Loading1.0 mg/cm² IrOx
Size5×5 cm²
Unit Price$150
Total Price$150
Price unit: USD per piece. Quantity is used only for quick total-price calculation. E002PT uses the corresponding platinized carbon paper with a default Pt loading of 0.1 mg/cm² Pt.
07
MODEL & PRICE

Complete IrOx Loading / Size / Price Tables

4 carbon-paper substrates · E002 / E002PT · 4 IrOx loading levels

TGPH060

Toray TGPH060

E002: IrOx / Carbon Paper · E002PT: IrOx / Platinized Carbon Paper

E002PT default Pt loading: 0.1 mg/cm² Pt
IrOx LoadingDiffuCarb™ E002 · IrOx / Carbon PaperDiffuCarb™ E002PT · IrOx / Platinized Carbon Paper
5×5 cm²10×10 cm²20×20 cm²5×5 cm²10×10 cm²20×20 cm²
1.0 mg/cm²$150$450$1600$160$480$1800
2.0 mg/cm²$180$520$1880$190$570$2180
3.0 mg/cm²$250$720$2580$260$820$2880
4.0 mg/cm²$300$840$3260$310$940$3560
A330R

A330R Carbon Paper

E002: IrOx / Carbon Paper · E002PT: IrOx / Platinized Carbon Paper

E002PT default Pt loading: 0.1 mg/cm² Pt
IrOx LoadingDiffuCarb™ E002 · IrOx / Carbon PaperDiffuCarb™ E002PT · IrOx / Platinized Carbon Paper
5×5 cm²10×10 cm²20×20 cm²5×5 cm²10×10 cm²20×20 cm²
1.0 mg/cm²$150$450$1600$160$480$1800
2.0 mg/cm²$180$520$1880$190$570$2180
3.0 mg/cm²$250$720$2580$260$820$2880
4.0 mg/cm²$300$840$3260$310$940$3560
H450R

H450R Carbon Paper

E002: IrOx / Carbon Paper · E002PT: IrOx / Platinized Carbon Paper

E002PT default Pt loading: 0.1 mg/cm² Pt
IrOx LoadingDiffuCarb™ E002 · IrOx / Carbon PaperDiffuCarb™ E002PT · IrOx / Platinized Carbon Paper
5×5 cm²10×10 cm²20×20 cm²5×5 cm²10×10 cm²20×20 cm²
1.0 mg/cm²$150$450$1600$160$480$1800
2.0 mg/cm²$180$520$1880$190$570$2180
3.0 mg/cm²$250$720$2580$260$820$2880
4.0 mg/cm²$300$840$3260$310$940$3560
H850R

H850R Carbon Paper

E002: IrOx / Carbon Paper · E002PT: IrOx / Platinized Carbon Paper

E002PT default Pt loading: 0.1 mg/cm² Pt
IrOx LoadingDiffuCarb™ E002 · IrOx / Carbon PaperDiffuCarb™ E002PT · IrOx / Platinized Carbon Paper
5×5 cm²10×10 cm²20×20 cm²5×5 cm²10×10 cm²20×20 cm²
1.0 mg/cm²$150$450$1600$160$480$1800
2.0 mg/cm²$180$520$1880$190$570$2180
3.0 mg/cm²$250$720$2580$260$820$2880
4.0 mg/cm²$300$840$3260$310$940$3560
SCI Materials Hub Is Committed to Offering The Best Price & Customer Services!
E002PT Note: DiffuCarb™ E002PT IrOx Chemically Coated on Platinized Carbon Paper uses the corresponding platinized carbon paper based on the raw carbon-paper substrate, with a default platinum loading of 0.1 mg/cm² Pt.

International Orders & Shipping

For quotations, bulk orders, custom configurations or international procurement, contact SCI Materials Hub.

Email: contact@scimaterials.cn
Tel: +86 130-0303-8751 / +86 156-0553-2352
WeChat: SCI-Materials-Hub
Shipping: DHL / SF-Express / requested carriers
Payment: Bank Transfer / PayPal / Credit Card / Alipay / WeChat Pay
Quick Orders: Alibaba / Amazon / eBay stores
Worldwide shipping is available. Bulk quantities and custom electrode configurations are available upon request.
No specific Alibaba / Amazon / eBay purchase URL was supplied in this request, so this page does not add an unverified store link.
DiffuCarb™ E002 / E002PT · IrOx Chemically Coated Carbon Paper Electrodes · SCI Materials Hub
