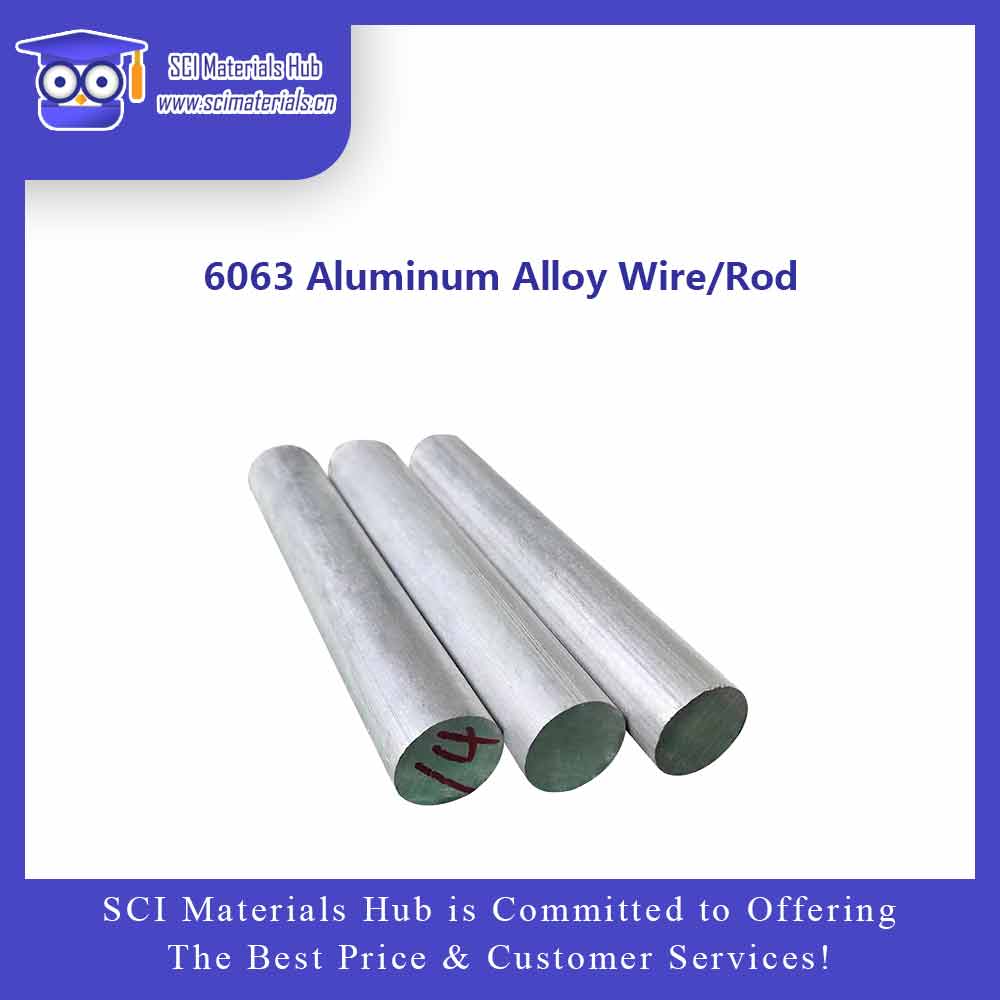

The 6063 aluminum alloy wire rod is a commonly used aluminum alloy material with numerous superior characteristics and extensive application fields. Below is a detailed introduction to the 6063 aluminum alloy wire rod:

I. Basic Properties

• Series: The 6063 aluminum alloy belongs to the aluminum-magnesium-silicon (Al-Mg-Si) series, which is a heat-treatable alloy capable of strengthening through thermal treatment.
• Type: It is a low-alloyed, highly plastic alloy that exhibits excellent workability and corrosion resistance.

II. Chemical Composition

The chemical composition of 6063 aluminum alloy primarily consists of aluminum (Al, balance), silicon (Si, 0.20%–0.60%), magnesium (Mg, 0.45%–0.9%), copper (Cu, ≤0.10%), zinc (Zn, ≤0.10%), manganese (Mn, ≤0.10%), titanium (Ti, ≤0.10%), chromium (Cr, ≤0.10%), iron (Fe, ≤0.35%), among others. Notably, silicon and magnesium are the primary alloying elements, enhancing the alloy's mechanical properties by forming the strengthening phase Mg2Si.

III. Mechanical Properties

• Tensile strength: σb (MPa) ranges from 130 to 230, with the specific value dependent on the alloy's heat treatment condition and processing.
• Other mechanical properties such as elongation, modulus of elasticity, and bending ultimate strength also demonstrate favorable characteristics.

IV. Characteristics and Advantages

• Heat Treatment Strengthening: 6063 aluminum alloy exhibits excellent heat treatment strengthening, significantly enhancing its strength through quenching and aging processes.
• High Impact Toughness: It is insensitive to defects and possesses high impact toughness.
• Superior Thermoplasticity: Capable of being extruded at high speeds into complex, thin-walled, or hollow profiles or forged into intricate components.
• Wide Quenching Temperature Range: Features a broad quenching temperature range with low quenching sensitivity, facilitating processing.
• Excellent Welding and Corrosion Resistance: Free from stress corrosion cracking, it is the only alloy among heat-treatable aluminum alloys that has not shown stress corrosion cracking.
• Smooth Surface and Easy Coloring: Achieves a high surface finish after processing and is easily anodized and colored.

V. Application Fields

Due to its superior properties, 6063 aluminum alloy wire rods are widely applied in various sectors, including but not limited to:

• Construction Engineering: Manufacturing door and window frames, wall decorative materials, stair railings, balcony balustrades, and other architectural components.
• Electronics and Electrical Appliances: Producing casings, heat sinks, and other parts for electronic and electrical devices.
• Automotive Manufacturing: Fabricating automotive body structures, chassis components, engine radiators, and other parts.
• Aerospace: Manufacturing structural components, instruments, and equipment for aircraft, rockets, satellites, and other aerospace vehicles.
• Machinery Manufacturing: Producing components for various machinery, such as bearings, gears, and fasteners.
• Furniture Manufacturing: Fabricating frames, brackets, handles, and other parts for various furniture pieces.

VI. Production Process

The production process of 6063 aluminum alloy wire rods primarily involves batching, melting, casting, and other steps. During the melting process, strict control over melting temperature and refining measures like degassing and deslagging are crucial to ensure the alloy's purity and performance.

In conclusion, the 6063 aluminum alloy wire rod is an aluminum alloy material with excellent properties and a wide range of application fields.

For international orders, please ask us for quotes via

Email: contact@scimaterials.cn

Tel: +86 130-0303-8751 / +86 156-0553-2352

Wechat: SCI-Materials-Hub

This metal wire rod is a raw material and has not undergone any polishing or other processing techniques. There may be oil stains, scratches, etc. on the surface. Please be cautious if you are concerned about these imperfections.

Worldwide shipping via DHL, SF-Express, FedEx, TNT & other requested carriers.

Payments via Bank Transfer, Paypal, Credit card (via Alibaba), Alipay, Wechat-pay are accepted.

Please contact us for larger quantities or becoming our distributors.
