In water electrolysis, electrocatalysis, batteries, and electrochemical synthesis systems, electrode substrates and current collectors are not only responsible for electron transport, but also play a critical role in electrolyte wetting, gas release behavior, and long-term operational stability.
To address different application requirements regarding structural robustness and interfacial wetting behavior, Youveim® offers two optimized versions of titanium woven mesh:

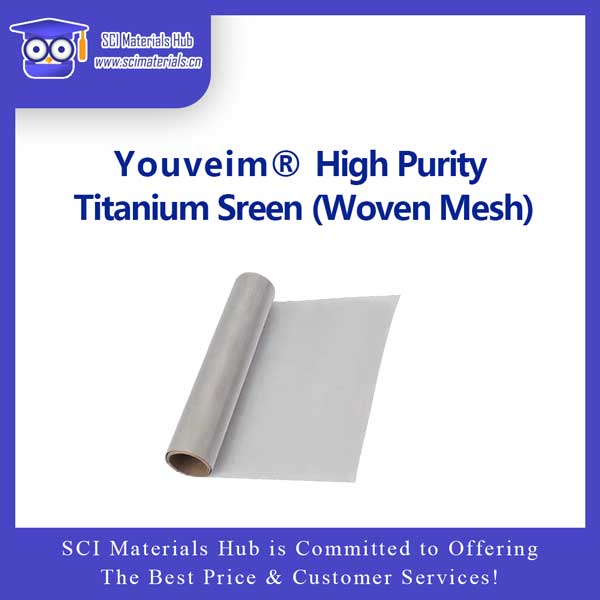

Youveim® High-Purity Titanium Screen (Woven Mesh)
Youveim® Hydrophilic Titanium Screen (Woven Mesh)
Both provide reliable, two-dimensional titanium-based structural solutions for research and engineering-scale electrochemical systems.
Youveim® High-Purity Titanium Woven Mesh is manufactured from >99.9% high-performance titanium wire, precisely woven using plain weave, twill weave, or Dutch weave structures. The product combines excellent corrosion resistance, electrochemical stability, and mechanical strength, enabling long-term operation in strong acidic, alkaline, and high-potential environments.
It is widely used as an electrode substrate, current collector, or structural support in water electrolysis, batteries, supercapacitors, electrocatalysis, and electrodeposition systems, and serves as an ideal support for noble-metal or metal-oxide catalyst coatings.
Youveim® Hydrophilic Titanium Woven Mesh is based on high-purity titanium woven mesh and treated with a proprietary surface hydrophilization and activation process.
Without altering the original structure, conductivity, or mechanical properties, the hydrophilic treatment significantly improves electrolyte wettability on the wire surface and within mesh apertures. This leads to more uniform liquid films, improved gas–liquid interface behavior, reduced polarization, and minimized bubble shielding effects, making it especially suitable for medium to high current density electrochemical operation.
| Item | High-Purity Titanium Woven Mesh | Hydrophilic Titanium Woven Mesh |
|---|---|---|
| Base Material | High-purity Ti (>99.9%) | High-purity Ti (>99.9%) |
| Weaving Types | Plain (5–100 mesh) Twill (100–200 mesh) Dutch (200–600 mesh) | Same |
| Wire Diameter | 0.05 – 0.5 mm | Same |
| Thickness Range | 0.1 – 1.0 mm | Same |
| Surface State | Native metallic surface | Hydrophilic / activated surface |
| Wettability | Standard metal wettability | Rapid wetting, uniform liquid film |
| Bubble Detachment | Conventional | Easier detachment, reduced gas retention |
| Interfacial Resistance | Standard | Lower interfacial ohmic resistance |
| Recommended Current Density | Low to medium | Medium to high |
| Processing & Customization | Cutting, welding, forming, coating | Same |
| Coating Type | Function & Application |
|---|---|
| Au (Gold) | Suppresses surface oxidation, improves conductivity; suitable for inert electrochemical systems |
| Pt (Platinum) | High HER/OER activity; suitable for acidic or high-stability environments |
| IrOx | Classic OER anode coating for PEM and alkaline electrolysis |
| IrRuOx | Balanced activity and cost; ideal for stack-level electrolyzers |
| PtIrRuOx | Ternary system for high current density and harsh corrosive conditions |
🛠️ Coatings can be customized in coating area, loading (mg/cm²), and composition ratio. Drawings or samples are supported.
| Application Requirement | Recommended Product |
|---|---|
| General electrochemical experiments / research electrodes | High-Purity Titanium Woven Mesh |
| Priority on material inertness and corrosion resistance | High-Purity Titanium Woven Mesh |
| Medium–high current density water electrolysis | Hydrophilic Titanium Woven Mesh |
| Anode systems with severe bubble accumulation | Hydrophilic Titanium Woven Mesh |
| PEM / AAEM electrolyzer anode support layers | Hydrophilic Titanium Woven Mesh |
| Catalyst loading and long-term operation | Hydrophilic Titanium Woven Mesh |
Ultrasonic cleaning in deionized water or ethanol for 5–10 minutes before use
Mild chemical activation may be applied if required, followed by thorough rinsing
Compatible with spray coating, dip coating, and electrodeposition methods
Reusable; supports cleaning, thermal treatment, and recoating

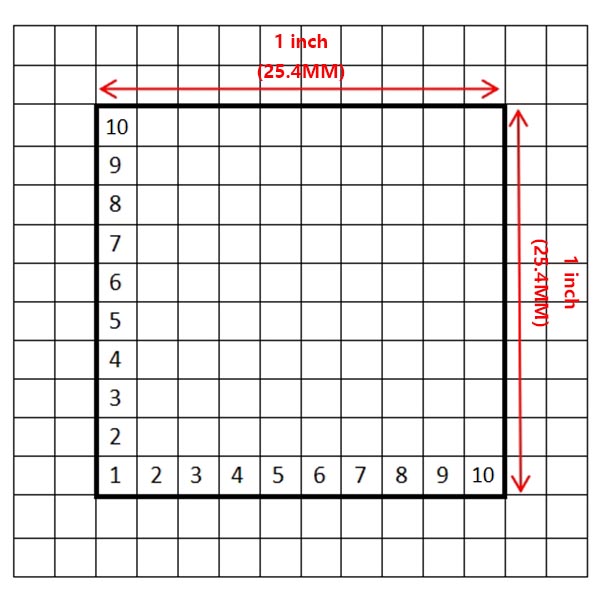

Mesh count refers to the number of openings per 1 inch (25.4 mm) length.
For example: 10 mesh means there are 10 openings within 25.4 mm.
Youveim® High-Purity Titanium Woven Mesh and Youveim® Hydrophilic Titanium Woven Mesh
are both built on high-purity titanium substrates and differentiated through surface interface engineering.
Together, they provide stable, scalable, and engineering-friendly titanium current collector solutions for water electrolysis, electrocatalysis, and advanced electrochemical systems.
🌍 International Orders & Shipping
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our Alibaba / Amazon / ebay stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
All items are in stock. Custom sizes and coatings available upon request.
| Mesh Type & Weave Style | Aperture (mm) | Wire Dia. (mm) | Thickness (mm) | Sizes & Prices (USD) |
|---|---|---|---|---|
| 10 Mesh – Plain Weave | 2.00 | 0.50 | 1.00 | $12 (10×10cm), $50 (10×50cm), $80 (10×100cm) $40 (20×20cm), $80 (20×50cm), $150 (20×100cm) $80 (30×30cm), $130 (30×50cm), $240 (30×100cm) |
| 20 Mesh – Plain Weave | 1.00 | 0.30 | 0.70 | $12 (10×10cm), $50 (10×50cm), $80 (10×100cm) $40 (20×20cm), $80 (20×50cm), $150 (20×100cm) $80 (30×30cm), $130 (30×50cm), $240 (30×100cm) |
| 30 Mesh – Plain Weave | 0.60 | 0.25 | 0.41 | $12 (10×10cm), $50 (10×50cm), $80 (10×100cm) $40 (20×20cm), $80 (20×50cm), $150 (20×100cm) $80 (30×30cm), $130 (30×50cm), $240 (30×100cm) |
| 40 Mesh – Plain Weave | 0.44 | 0.20 | 0.33 | $12 (10×10cm), $50 (10×50cm), $80 (10×100cm) $40 (20×20cm), $80 (20×50cm), $150 (20×100cm) $80 (30×30cm), $130 (30×50cm), $240 (30×100cm) |
| 50 Mesh – Plain Weave | 0.33 | 0.15 | 0.30 | $12 (10×10cm), $50 (10×50cm), $80 (10×100cm) $40 (20×20cm), $80 (20×50cm), $150 (20×100cm) $80 (30×30cm), $130 (30×50cm), $240 (30×100cm) |
| 60 Mesh – Plain Weave | 0.27 | 0.15 | 0.41 | $12 (10×10cm), $50 (10×50cm), $80 (10×100cm) $40 (20×20cm), $80 (20×50cm), $150 (20×100cm) $80 (30×30cm), $130 (30×50cm), $240 (30×100cm) |
| 80 Mesh – Plain Weave | 0.20 | 0.10 | 0.23 | $12 (10×10cm), $50 (10×50cm), $80 (10×100cm) $40 (20×20cm), $80 (20×50cm), $150 (20×100cm) $80 (30×30cm), $130 (30×50cm), $240 (30×100cm) |
| 100 Mesh – Plain Weave | 0.15 | 0.10 | 0.25 | $12 (10×10cm), $50 (10×50cm), $80 (10×100cm) $40 (20×20cm), $80 (20×50cm), $150 (20×100cm) $80 (30×30cm), $130 (30×50cm), $250 (30×100cm) |
| 120 Mesh – Twill Weave | 0.10 | 0.10 | 0.27 | $16 (10×10cm), $60 (10×50cm), $100 (10×100cm) $60 (20×20cm), $140 (20×50cm), $260 (20×100cm) $120 (30×30cm), $180 (30×50cm), $320 (30×100cm) |
| 150 Mesh – Twill Weave | 0.10 | 0.06 | 0.13 | $20 (10×10cm), $80 (10×50cm), $140 (10×100cm) $70 (20×20cm), $160 (20×50cm), $300 (20×100cm) $140 (30×30cm), $200 (30×50cm), $360 (30×100cm) |
| 200 Mesh – Twill Weave | 0.07 | 0.05 | 0.15 | $24 (10×10cm), $100 (10×50cm), $180 (10×100cm) $90 (20×20cm), $200 (20×50cm), $360 (20×100cm) $180 (30×30cm), $260 (30×50cm), $480 (30×100cm) |
| 200 Mesh – Dutch Weave | 0.07 | 0.05 | 0.85 | $30 (10×10cm), $140 (10×50cm), $240 (10×100cm) $110 (20×20cm), $240 (20×50cm), $440 (20×100cm) $220 (30×30cm), $320 (30×50cm), $600 (30×100cm) |
| 300 Mesh – Dutch Weave | 0.07 | 0.18×0.25 | 0.61 | $30 (10×10cm), $140 (10×50cm), $240 (10×100cm) $110 (20×20cm), $240 (20×50cm), $440 (20×100cm) $220 (30×30cm), $320 (30×50cm), $600 (30×100cm) |
| 600 Mesh – Dutch Weave | 0.04 | 0.07×0.11 | 0.27 | $60 (10×10cm), $260 (10×50cm), $480 (10×100cm) $200 (20×20cm), $460 (20×50cm), $880 (20×100cm) $400 (30×30cm), $600 (30×50cm), $1160 (30×100cm) |
📦 Availability: All products in stock
🛠 Customization: Laser cutting, rolling, punching, welding available
📄 Documentation: Certificate of analysis and usage guideline included
💬 Contact: Bulk orders and OEM pricing available on request
