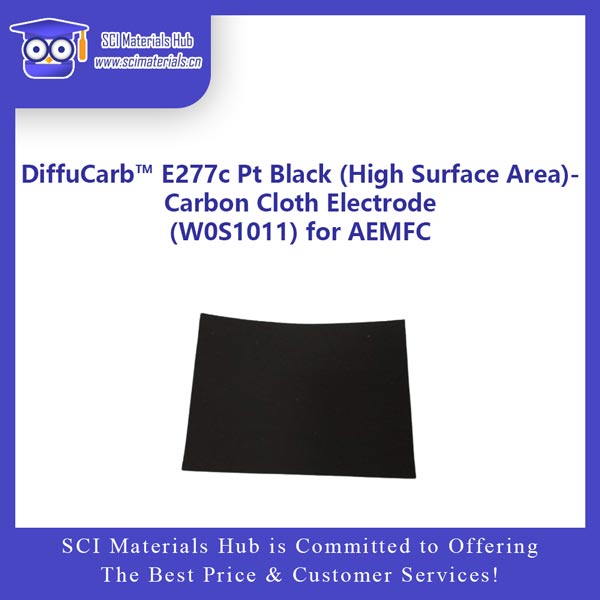

DiffuCarb™ E277c Pt Black (High Surface Area) - Carbon Cloth Electrode (W0S1011) for AEMFC is a high-performance electrode specifically designed for anion exchange membrane fuel cells (AEMFC) and alkaline fuel cells. This electrode utilizes untreated raw carbon cloth as the substrate, without hydrophobic or microporous layer treatments, and employs Fumion as the binder, with Fumion coating post-treatment to enhance the electrode's adhesion and chemical stability.

Product Detailed Description:

Carbon Cloth Substrate:

• Untreated Raw Carbon Cloth: The substrate of this electrode is made from untreated carbon cloth that has not undergone hydrophobic or microporous layer treatments, featuring an unmodified surface. The raw carbon cloth provides good conductivity and mechanical strength, maintaining structural stability in the working environments of AEMFC and alkaline fuel cells, and is suitable for operation in alkaline media.

• Substrate Characteristics: The surface roughness of the raw carbon cloth aids in the uniform distribution of the catalyst and binder, ensuring maximization of the electrode reaction area while providing a stable electronic conduction path, enhancing overall performance.

Platinum Black Catalyst Layer:

• High Surface Area Platinum Black: This electrode uses platinum black as the catalyst. The high surface area of platinum black provides numerous active sites, enhancing the efficiency of the oxygen reduction reaction (ORR) and hydrogen oxidation reaction (HOR). This is crucial for both anion exchange membrane fuel cells and alkaline fuel cells, effectively improving the power output and reaction rates of the cells.

• Catalyst Performance: Platinum black can effectively promote electrochemical reactions under alkaline conditions, allowing the electrode to exhibit high electrochemical activity and stability in fuel cells.

Fumion Binder and Coating Post-Treatment:

• Fumion as Binder: Fumion is an alkaline polymer material suitable for AEMFCs, serving as a binder that securely adheres the platinum black catalyst to the carbon cloth substrate. Fumion exhibits excellent chemical stability and durability in alkaline environments, ensuring that the electrode maintains structural integrity under long-term operating conditions.

• Fumion Coating Post-Treatment: During the manufacturing process, Fumion coating post-treatment is applied. This process not only enhances the electrode's adhesion but also optimizes the electrochemical reaction interface, improving ionic conductivity and further enhancing the overall performance of the fuel cell.

Main Application Areas:

• Anion Exchange Membrane Fuel Cells (AEMFC): The DiffuCarb™ E277c electrode demonstrates outstanding performance in AEMFCs, suitable for alkaline working environments. The design of the electrode enhances the efficiency of the oxygen reduction and hydrogen oxidation reactions within the fuel cell.

• Alkaline Fuel Cells: Due to the application of the Fumion binder and the untreated raw carbon cloth substrate, the electrode exhibits good conductivity and water management capabilities in alkaline fuel cells, ensuring stable electrochemical performance during prolonged operation.

Product Advantages:

• Efficient Electrochemical Reactions: The high surface area platinum black catalyst layer provides numerous active sites, significantly enhancing the electrochemical reaction efficiency in both anion exchange membrane fuel cells and alkaline fuel cells.

• Excellent Adhesion and Stability: The Fumion binder and post-treatment coating ensure the structural stability of the electrode and a strong bond between the catalyst and carbon cloth, allowing the electrode to maintain high performance even after extended use.

• Optimized Ionic Conductivity and Water Management: Although the electrode has not undergone hydrophobic and microporous layer treatments, the structure of the raw carbon cloth combined with the Fumion coating effectively manages water conduction and retention, ensuring efficient operation of the fuel cell under various conditions.

Conclusion:

The DiffuCarb™ E277c Platinum Black (High Surface Area) - Carbon Cloth Electrode (W0S1011, AEMFC) is a high-performance electrode designed for AEMFCs and alkaline fuel cells. By utilizing untreated raw carbon cloth as the substrate and Fumion as the binder, the electrode exhibits excellent electrochemical reactivity and stability in alkaline environments, making it particularly suitable for fuel cell systems that require long-term operation.

For international orders, please ask us for quotes via

Email: contact@scimaterials.cn

Tel: +86 130-0303-8751 / +86 156-0553-2352

Wechat: SCI-Materials-Hub

Clik here to put quick orders on our Alibaba / Amazon / ebay store.

Customizable information based on user requirements:

• Catalyst loading
• Catalyst brand, type, and model
• Brand, model, and ratio of polymer or binder
• Carbon cloth brand and model, etc.

**Worldwide shipping via DHL, SF-Express & other requested carriers.

***Payments via Bank Transfer, Paypal, Credit card (via Taobao), Alipay, Wechat-pay are accepted.

Partial references citing our materials (from Google Scholar)

Carbon Dioxide Reduction

1. ACS Nano Strain Relaxation in Metal Alloy Catalysts Steers the Product Selectivity of Electrocatalytic CO₂ Reduction

The bipolar membrane (Fumasep FBM) in this paper was purchased from SCI Materials Hub, which was used in rechargeable Zn-CO₂ battery tests. The authors reported a strain relaxation strategy to determine lattice strains in bimetal MNi alloys (M = Pd, Ag, and Au) and realized an outstanding CO₂-to-CO Faradaic efficiency of 96.6% with outstanding activity and durability toward a Zn-CO₂ battery.

2. Front. Chem. Boosting Electrochemical Carbon Dioxide Reduction on Atomically Dispersed Nickel Catalyst

In this paper, Vulcan XC-72R was purchased from SCI Materials Hub. Vulcan XC 72R carbon is the most common catalyst support used in the anode and cathode electrodes of Polymer Electrolyte Membrane Fuel Cells (PEMFC), Direct Methanol Fuel Cells (DMFC), Alkaline Fuel Cells (AFC), Microbial Fuel Cells (MFC), Phosphoric Acid Fuel Cells (PAFC), and many more!

3. Adv. Mater. Partially Nitrided Ni Nanoclusters Achieve Energy-Efficient Electrocatalytic CO₂ Reduction to CO at Ultralow Overpotential

An AEM membrane (Sustainion X37-50 Grade RT, purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.

4. Adv. Funct. Mater. Nanoconfined Molecular Catalysts in Integrated Gas Diffusion Electrodes for High-Current-Density CO₂ Electroreduction

In this paper (Supporting Information), an anion exchanged membrane (Fumasep FAB-PK-130 obtained from SCI Materials Hub (www.scimaterials.cn)) was used to separate the catholyte and anolyte chambers.

SCI Materials Hub: we also recommend our Fumasep FAB-PK-75 for the use in a flow cell.

5. Appl. Catal. B Efficient utilization of nickel single atoms for CO₂ electroreduction by constructing 3D interconnected nitrogen-doped carbon tube network

In this paper, the Nafion 117 membrane was obtained from SCI Materials Hub.

6. Vacuum Modulable Cu(0)/Cu(I)/Cu(II) sites of Cu/C catalysts derived from MOF for highly selective CO₂ electroreduction to hydrocarbons

In this paper, Proton exchange membrane (Nafion 117), Nafion D520, and Toray 060 carbon paper were purchased from SCI Materials Hub.

7. National Science Review Confinement of ionomer for electrocatalytic CO2 reduction reaction via efficient mass transfer pathways

An anion exchange membrane (PiperION-A15-HCO3) was obtained from SCI Materials Hub.

8. Catalysis Communications Facilitating CO2 electroreduction to C2H4 through facile regulating {100} & {111} grain boundary of Cu2O

Carbon paper (TGPH060), membrane solution (Nafion D520), and ionic membrane (Nafion N117) were obtained from Wuhu Eryi Material Technology Co., Ltd (a company under SCI Materials Hub).

Batteries

1. J. Mater. Chem. A Blocking polysulfides with a Janus Fe3C/N-CNF@RGO electrode via physiochemical confinement and catalytic conversion for high-performance lithium–sulfur batteries

Graphene oxide (GO) in this paper was obtained from SCI Materials Hub. The authors introduced a Janus Fe3C/N-CNF@RGO electrode consisting of 1D Fe3C decorated N-doped carbon nanofibers (Fe3C/N-CNFs) side and 2D reduced graphene oxide (RGO) side as the free-standing carrier of Li2S6 catholyte to improve the overall electrochemical performance of Li-S batteries.

2. Joule A high-voltage and stable zinc-air battery enabled by dual-hydrophobic-induced proton shuttle shielding

This paper used more than 10 kinds of materials from SCI Materials Hub and the authors gave detailed properity comparsion.

The commercial IEMs of Fumasep FAB-PK-130 and Nafion N117 were obtained from SCI Materials Hub.

Gas diffusion layers of GDL340 (CeTech) and SGL39BC (Sigracet) and Nafion dispersion (Nafion D520) were obtained from SCI Materials Hub.

Zn foil (100 mm thickness) and Zn powder were obtained from the SCI Materials Hub.

Commercial 20% Pt/C, 40% Pt/C and IrO2 catalysts were also obtained from SCI Materials Hub.

3. Journal of Energy Chemistry Vanadium oxide nanospheres encapsulated in N-doped carbon nanofibers with morphology and defect dual-engineering toward advanced aqueous zinc-ion batteries

In this paper, carbon cloth (W0S1011) was obtained from SCI Materials Hub. The flexible carbon cloth matrix guaranteed the stabilization of the electrode and improved the conductivity of the cathode.

4. Energy Storage Materials Defect-abundant commercializable 3D carbon papers for fabricating composite Li anode with high loading and long life

The 3D carbon paper (TGPH060 raw paper) were purchased from SCI Materials Hub.

5. Nanomaterials A Stable Rechargeable Aqueous Zn–Air Battery Enabled by Heterogeneous MoS2 Cathode Catalysts

Nafion D520 (5 wt%), and carbon paper (GDL340) were received from SCI-Materials-Hub.

6. SSRN An Axially Directed Cobalt-Phthalocyanine Covalent Organic Polymer as High-Efficient Bifunctional Catalyst for Zn-Air Battery

Carbon cloth (W0S1011) and other electrochemical consumables required for air cathode were provided by SCI Materials Hub.

Oxygen Reduction Reaction

1. J. Chem. Eng. Superior Efficiency Hydrogen Peroxide Production in Acidic Media through Epoxy Group Adjacent to Co-O/C Active Centers on Carbon Black

In this paper, Vulcan XC 72 carbon black, ion membrane (Nafion N115, 127 μL), Nafion solution (D520, 5 wt%), and carbon paper (AvCarb GDS 2230 and Spectracarb 2050A-1050) were purchased from SCI Materials Hub.

2. Journal of Colloid and Interface Science Gaining insight into the impact of electronic property and interface electrostatic field on ORR kinetics in alloy engineering via theoretical prognostication and experimental validation

The 20 wt% Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) were purchased from SCI Materials Hub. This work places emphasis on the kinetics of the ORR concerning Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) catalysts, and integrates theoretical prognostication and experimental validation to illuminate the fundamental principles of alloy engineering.

Water Electrolysis

1. International Journal of Hydrogen Energy Gold as an efficient hydrogen isotope separation catalyst in proton exchange membrane water electrolysis

The cathodic catalysts of Pt/C (20 wt%, 2–3 nm) and Au/C (20 wt%, 4–5 nm) were purchased from SCI Materials Hub.

2. Small Science Silver Compositing Boosts Water Electrolysis Activity and Durability of RuO2 in a Proton-Exchange-Membrane Water Electrolyzer

Two fiber felts (0.35 mm thickness, SCI Materials Hub) were used as the porous transport layers at both the cathode and the anode.

3. Advanced Functional Materials Hierarchical Crystalline/Amorphous Heterostructure MoNi/NiMoOx for Electrochemical Hydrogen Evolution with Industry-Level Activity and Stability

Anion-exchange membrane (FAA-3-PK-130) was obtained from SCI Materials Hub website.

Fuel Cells

1. Polymer Sub-two-micron ultrathin proton exchange membrane with reinforced mechanical strength

Gas diffusion electrode (60% Pt/C, Carbon paper) was purchased from SCI Materials Hub.

Characterization

1. Chemical Engineering Journal Electrochemical reconstitution of Prussian blue analogue for coupling furfural electro-oxidation with photo-assisted hydrogen evolution reaction

An Au nanoparticle film was deposited on the total reflecting plane of a single reflection ATR crystal (SCI Materials Hub, Wuhu, China) via sputter coater.
