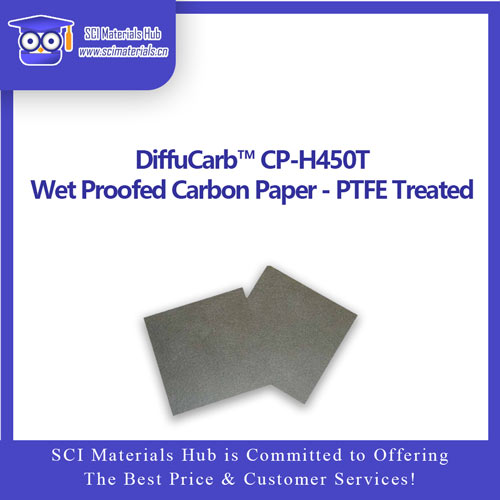

The carbon paper has a thickness of about 0.45mm and is based on the raw carbon paper CP-H450R, which has excellent conductivity.

DiffuCarb™ hydrophobic carbon paper is a specially treated carbon paper with a hydrophobic surface, meaning it resists water wetting. This treatment is typically achieved by coating or impregnating it with hydrophobic materials such as polytetrafluoroethylene (PTFE). Hydrophobic carbon paper is primarily used in applications requiring prevention of water retention, such as fuel cells and electrolyzers.

Characteristics of Hydrophobic Carbon Paper

• Hydrophobicity: Surface treatment gives the carbon paper excellent hydrophobic properties, effectively preventing water from remaining on the surface.
• High Conductivity: The carbon paper itself has excellent conductivity, making it suitable for electrochemical applications.
• Mechanical Strength: The carbon fiber structure provides high strength and durability.
• Chemical Stability: Exhibits good chemical stability in acidic or alkaline environments.

• Gas Permeability: Possesses good gas permeability, suitable for applications requiring gas diffusion.

Applications of Hydrophobic Carbon Paper in Fuel Cells

In fuel cells, such as proton exchange membrane fuel cells (PEMFCs), hydrophobic carbon paper is mainly used in the following areas:

• Gas Diffusion Layer (GDL): As a gas diffusion layer, hydrophobic carbon paper aids in the even distribution of fuel and oxidant to the catalyst layer. It also efficiently removes water generated by the reaction, preventing flooding, and thereby improving the cell's efficiency and stability.

• Electrode Substrate: In fuel cell electrodes, hydrophobic carbon paper can serve as a catalyst support, providing electron pathways and reaction surfaces while maintaining the structural integrity of the electrode.

Applications of Hydrophobic Carbon Paper in Electrolyzers

In electrolyzers, such as water electrolyzers, hydrophobic carbon paper is primarily used as:

• Electrode Material: It can serve as an electrode material, offering high conductivity and effective gas management to promote the electrolysis reaction.

• Gas Diffusion Layer: In electrolyzers, hydrophobic carbon paper acts as a gas diffusion layer, helping to distribute reactant gases and expel generated gases, which improves efficiency and extends equipment lifespan.

Summary

Thanks to its excellent hydrophobicity, high conductivity, mechanical strength, and chemical stability, hydrophobic carbon paper holds broad application potential in fuel cells and electrolyzers. It effectively manages water and gas distribution, preventing flooding and gas retention, while providing stable structural support. This improves the efficiency and durability of electrochemical devices, making hydrophobic carbon paper an essential material in modern electrochemical equipment.
