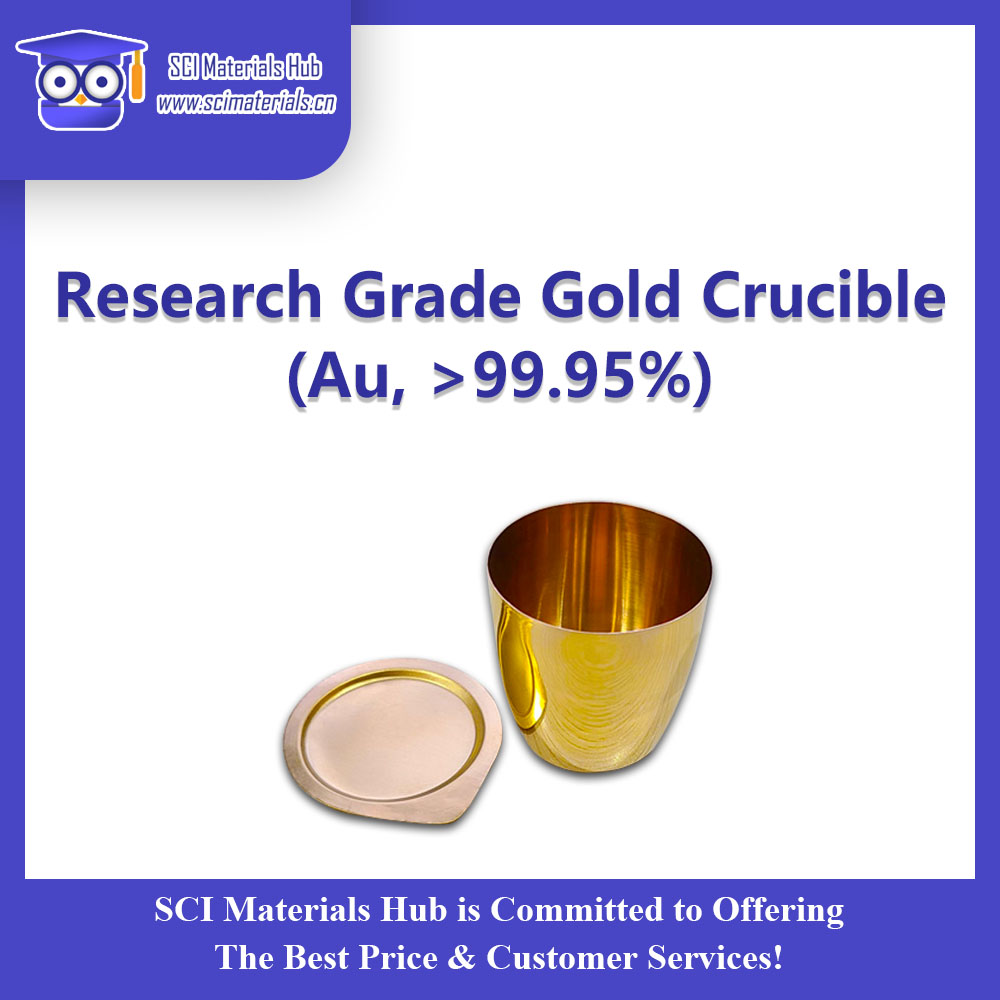

Product Name: Research Grade Gold (Au, >99.95%) Crucible
Specification: 5ml-300ml
Material: Gold
Purity: gold ≥ 99.95%
Application industries: metallurgy, iron and steel, petrochemical industry, pharmaceutical chemical industry, ceramic electroplating scientific research institutions, colleges and universities, refractories, cement building materials, geological and mineral commodity inspection system and various scientific research institutions
Gold is the elemental form of the chemical element gold (chemical element symbol AU). It is a soft golden yellow, corrosion-resistant precious metal. Gold is one of the rarest, most precious and most valued metals. In the world, gold is generally in ounces. In ancient China, two ounces were used as gold units. It is a very important metal. It is not only a special currency for reserve and investment, but also an important material for jewelry industry, electronics industry, modern communication, aerospace industry and other departments.
High frequency furnace melts precious metals to make products melt evenly and durable. CNC machine tool double knife spinning one-time forming, to customer satisfaction
The color of gold is golden yellow, metallic luster and difficult to decompose. Hardness 2-3; It has good ductility, can be pressed into thin foil, has high heat transfer and conductivity, and the resistance of pure gold is 24P. Pure gold has good chemical corrosion resistance and is the best electroplating material.
Management of gold crucible
(1) When the crucible is not in use, put it in the safe with the crucible pliers.
(2) No matter whether the evaporating dish is in use or stored during shift handover, the person who takes over the shift shall hand it over face to face.
(3) When the on-the-job personnel leave the post, they must check the doors and windows, lock the door, and return to the post to check immediately. If there are problems, report to the leader immediately.
(4) While checking whether the crucible exists, check whether the crucible is cleaned.
Precautions for product use
(1) The melting point of the gold crucible is 17735 ℃, and the maximum service temperature shall not exceed 700 ℃. It cannot be used directly on open fire heating.
(2) Do not use too much force when taking the crucible to avoid deformation or concave convex. Do not take the material in the crucible with the tip of a glass rod
(3) Gold crucible is not affected by alkali metal hydroxide and hydrofluoric acid, so it is often used to replace platinum crucible.
(4) Ammonium nitrate has obvious erosion effect on gold, and aqua regia cannot contact with the gold crucible.
(5) High temperature heating shall not contact with any other metal (iron plate, electric furnace, etc.) and attention shall be paid when putting it into the high-temperature furnace. Don't touch the corner.
(6) The gold crucible must be kept clean and bright inside and outside. After long-term burning, the appearance of the platinum crucible may be dim
If there is no light for a long time, it will go deep into the interior, resulting in the fragile fracture of the crucible. Therefore, the unclean things must be removed.
Cleaning method of gold crucible
Boil in dilute hydrochloric acid or dilute nitric acid, among which dilute hydrochloric acid is more convenient to prepare
(1-12) mol / L hydrochloric acid solution), note that the dilute hydrochloric acid used shall not contain nitric acid, nitrate, halogen and other oxidants.
If it cannot be cleaned with dilute acid, it shall be melted and cleaned with potassium pyrosulfate, sodium carbonate or borax.
If there are still stains or black on the surface, use the fine sand without sharp edges and corners passing 100 sieves to wet it with water and gently rub it to restore the luster of the surface.
Research Grade Gold (Au, >99.95%) Crucible | |||||
Capacity (ml) | Outer diameter of upper opening (mm) | Outer diameter of bottom (mm) | Height (mm) | Thickness (mm) | Estimated Weight (g) |
| 5 | 19 | 12 | 25 | 0.22 | 7 |
| 8 | 22 | 13 | 25 | 0.22 | 10 |
| 10 | 22 | 14 | 28 | 0.26 | 12 |
| 12 | 26 | 16 | 29 | 0.27 | 13 |
| 15 | 28 | 17 | 35 | 0.28 | 15 |
20 | 33 | 18 | 35 | 0.28 | 20 |
25 | 35 | 20 | 37 | 0.30 | 25 |
| 30 | 37 | 22 | 40 | 0.34 | 30 |
| 35 | 38 | 23 | 40 | 0.34 | 35 |
| 40 | 40 | 25 | 45 | 0.34 | 40 |
50 | 45 | 27 | 50 | 0.34 | 50 |
| 60 | 49 | 29 | 50 | 0.34 | 60 |
| 75 | 53 | 32 | 56 | 0.38 | 75 |
| 80 | 54 | 33 | 58 | 0.38 | 80 |
100 | 58 | 35 | 60 | 0.38 | 100 |
| 150 | 70 | -- | 70 | 0.38 | 150 |
| 200 | 74 | -- | 74 | 0.38 | 200 |
| 250 | 78 | -- | 78 | 0.39 | 250 |
| 300 | 86 | -- | 83 | 0.4 | 300 |
For international orders, please ask us for quotes via
Email: contact@scimaterials.cn
Tel: +86 15375698751
Wechat: SCI-Materials-Hub
Clik here to put quick orders on our Alibaba shop
Research Grade Gold (Au, >99.95%) Crucible | |||
Product Code | Description | Retail Price (USD$) | Lead Time |
| 11010514-1 | Au Crucible - 5ml | 980 | 7 days |
| 11010514-2 | Au Crucible - 8ml | 1,400 | 7 days |
| 11010514-3 | Au Crucible - 10ml | 1,680 | 7 days |
| 11010514-4 | Au Crucible - 12ml | 1,820 | 7 days |
| 11010514-5 | Au Crucible - 15ml | 2,100 | 7 days |
| 11010514-6 | Au Crucible - 20ml | 2,800 | 7 days |
| 11010514-7 | Au Crucible - 25ml | 3,500 | 7 days |
| 11010514-8 | Au Crucible - 30ml | 4,200 | 7 days |
| 11010514-9 | Au Crucible - 35ml | 4,900 | 7 days |
| 11010514-10 | Au Crucible - 40ml | 5,600 | 7 days |
| 11010514-11 | Au Crucible - 50ml | 7,000 | 7 days |
| 11010514-12 | Au Crucible - 60ml | 8,400 | 7 days |
| 11010514-13 | Au Crucible - 75ml | 10,500 | 7 days |
| 11010514-14 | Au Crucible - 80ml | 11,200 | 7 days |
| 11010514-15 | Au Crucible - 100ml | 14,000 | 7 days |
| 11010514-16 | Au Crucible - 150ml | 21,000 | 7 days |
| 11010514-17 | Au Crucible - 200ml | 28,000 | 7 days |
| 11010514-18 | Au Crucible - 250ml | 35,000 | 7 days |
| 11010514-19 | Au Crucible - 300ml | 42,000 | 7 days |
We Are Committed to Provide the Best Price & Customer Services! | |||
Worldwide shipping via DHL, SF-Express & other requested carriers.
Payments via Bank Transfer, Paypal, Credit card (via Taobao), Alipay, Wechat-pay are accepted.
