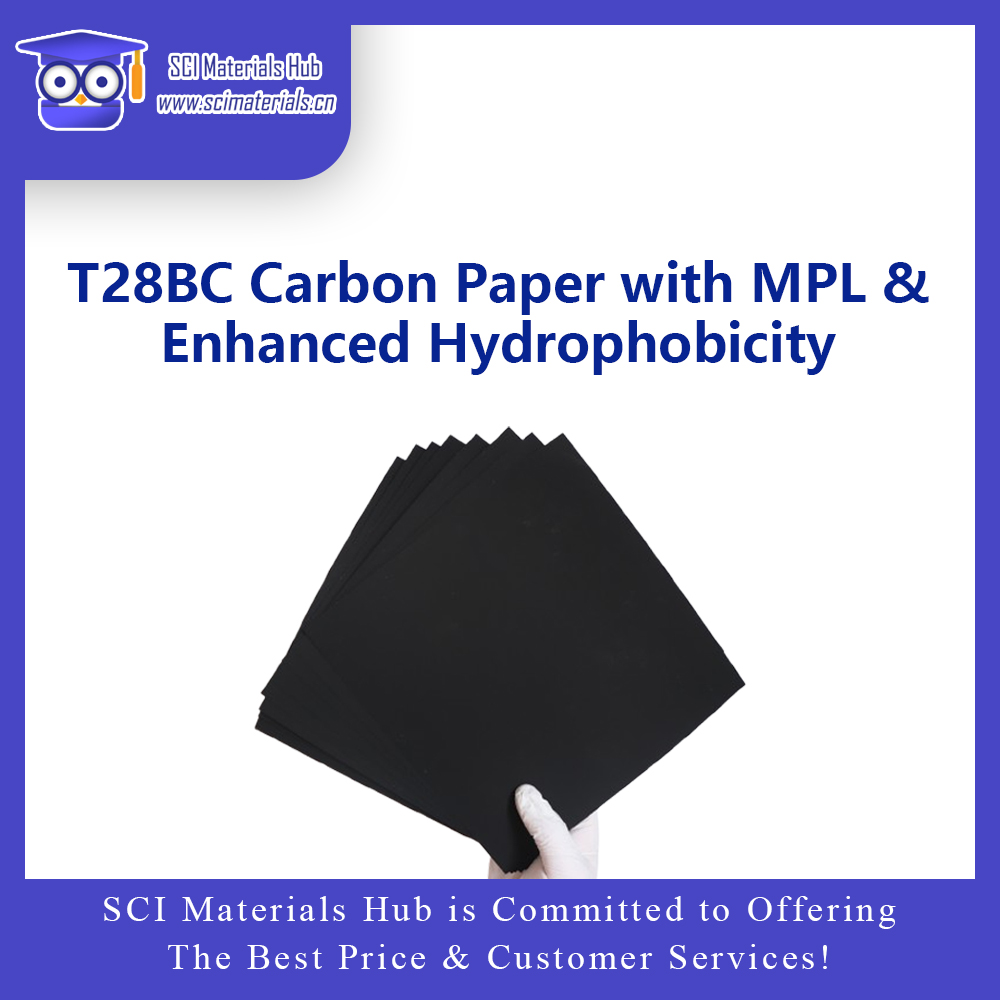

Advanced Gas Diffusion Layer (GDL) with Customized PTFE Hydrophobic Treatment
T28BC is an upgraded version of commercial MPL carbon papers (e.g., SGL 28BC, Freudenberg H23C6), modified with customized PTFE-based hydrophobic enhancements (single-side, double-side, surface, subsurface, or bulk treatment).
By applying original DuPont™ PTFE hydrophobic agents, T28BC offers significantly improved water repellency, drainage, and gas diffusion performance under high-humidity conditions, while maintaining conductivity and porosity.
T28BC is particularly suitable for fuel cells, water electrolysis, flow batteries, carbon capture/utilization, and CO₂ reduction systems operating under high humidity, high water production, or elevated pressure.
| Layer | Composition | Function |
|---|---|---|
| Carbon paper substrate | Carbon fiber paper | Provides conductivity, porosity, and mechanical strength |
| Microporous layer (MPL) | Conductive carbon black + PTFE/FEP binder | Optimizes gas diffusion, prevents catalyst flooding |
| Hydrophobic enhancement | Surface (single/double, top/bottom) or bulk PTFE treatment | Improves contact angle and drainage, prevents pore flooding |
| Type | Features | Recommended Application |
|---|---|---|
| PTFE (DuPont™) | High chemical stability, strong hydrophobicity, thermal resistance, long durability | Standard for PEMFC/PEMWE/AEM systems |
| FEP (DuPont™) | Softer, lower melting point, suitable for lamination & composite structures | Flexible and multilayer electrode designs |
Single-side (surface-treated): PTFE coating visible on MPL or carbon paper surface; enhances drainage where directly exposed.
Single-side (subsurface-treated): PTFE penetrates beneath the surface while leaving outer surface conductive; suitable for balancing water management and conductivity.
Double-side: Both MPL and carbon paper sides hydrophobic; ideal for high-humidity, high-pressure environments.
Bulk-treated: PTFE penetrates the full thickness of the substrate, forming a fully hydrophobic structure; ideal for flow batteries, AEM electrolysis, and CO₂RR.
| Mode | PTFE Range |
|---|---|
| Single-side (MPL surface) | 1% – 50% |
| Single-side (Carbon surface) | 1% – 50% |
| Single-side (MPL subsurface) | 1% – 50% |
| Single-side (Carbon subsurface) | 1% – 50% |
| Double-side (MPL + Carbon surface) | 1% (0.5%+0.5%) – 50% (25%+25%) |
| Bulk hydrophobic treatment | 1% – 30% |
📌 Customization available: special PTFE loadings, large-area rolls, perforation, slotting, lamination.
📌 Standard sizes: 5×5 cm, 10×10 cm, 20×20 cm (others on request).
High hydrophobic contact angle (>120°), long-term durability
Reduced electrode flooding and water accumulation
Maintains gas diffusion and electrochemical performance under high humidity & current density
Enhances MEA stability and durability
Compatible with advanced hydrophobic/hydrophilic interface engineering
| Application | Benefits |
|---|---|
| PEMFC (high humidity) | Prevents water flooding at catalyst layer, improves drainage and runtime |
| PEMWE cathodes (high pressure electrolysis) | Creates strong hydrophobic barrier, prevents back-diffusion of liquid water |
| AEM electrolysis | Enhances water removal and gas diffusion, stabilizes HER/OER performance |
| CO₂RR | Ensures CO₂ gas accessibility, prevents catalyst flooding |
| Flooding-resistant MEAs | Improves drainage, reduces local water accumulation |
| Flow batteries & DSSCs | Controls electrolyte penetration, improves cycle stability |
| Gas-phase reactors & sensors | Stabilizes gas diffusion region, prevents liquid intrusion |
Ink Preparation
Catalyst: Pt/C (e.g., 60 wt% Pt)
Ionomer: Nafion® (5 wt%)
Solvent: DI water + IPA (1:1)
Ratio: Pt/C : Nafion : Solvent ≈ 1 : 0.3 : 20
Ultrasonicate 30–60 min for uniform ink.
Substrate Preparation
Cut T28BC to desired size.
Place MPL side facing up for spraying.
Optional: Plasma or ethanol pretreatment.
Spray-Coating
Distance: 10–15 cm
Substrate temp: 60–80 °C
Apply multiple thin layers to avoid cracking.
Drying & Heat-Treatment
Dry at 80 °C for 1 h.
Optional anneal: 130–140 °C, 1–2 h.
Assembly
Catalyst layer facing PEM or CO₂RR interface.
Hot-press at 130 °C, 1–2 MPa, 2–3 min.
Result: Uniform, durable GDE with enhanced conductivity, drainage, and stability.
MOQ: Single-sheet samples available
Sizes: 5×5 cm, 10×10 cm, 20×20 cm (customizable)
Lead time: Stock 1–3 days, custom 3–5 days
Packaging: Moisture-proof sealed bags
Technical datasheets & invoices available
🌍 International Orders & Shipping
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
📑 T28BC Hydrophobic-Enhanced Carbon Paper with Microporous Layer — Price List (USD)
| Enhancement Type | Hydrophobic PTFE Content | 5×5 cm | 10×10 cm | 20×20 cm | Remarks |
|---|---|---|---|---|---|
| Single Side (MPL Surface ) | 1% | $10 | $30 | $90 | Improves catalyst layer hydrophobicity |
| 5% | $12 | $36 | $108 | ||
| 10% | $14 | $42 | $126 | ||
| 20% | $18 | $54 | $162 | ||
| 30% | $20 | $60 | $180 | ||
| 40% | $30 | $90 | $270 | ||
| 50% | $40 | $120 | $360 | ||
| Single Side (MPL Subsurface) | 1% | $10 | $30 | $90 | Optimizes drainage beneath MPL while retaining conductivity |
| 5% | $12 | $36 | $108 | ||
| 10% | $14 | $42 | $126 | ||
| 20% | $18 | $54 | $162 | ||
| 30% | $20 | $60 | $180 | ||
| 40% | $30 | $90 | $270 | ||
| 50% | $40 | $120 | $360 | ||
| Single Side (Carbon Paper Surface) | 1% | $10 | $30 | $90 | Enhances drainage on flow field contact side |
| 5% | $12 | $36 | $108 | ||
| 10% | $14 | $42 | $126 | ||
| 20% | $18 | $54 | $162 | ||
| 30% | $20 | $60 | $180 | ||
| 40% | $30 | $90 | $270 | ||
| 50% | $40 | $120 | $360 | ||
| Single Side (Carbon Paper Subsurface) | 1% | $10 | $30 | $90 | Improves drainage at lower flow field interface |
| 5% | $12 | $36 | $108 | ||
| 10% | $14 | $42 | $126 | ||
| 20% | $18 | $54 | $162 | ||
| 30% | $20 | $60 | $180 | ||
| 40% | $30 | $90 | $270 | ||
| 50% | $40 | $120 | $360 | ||
| Double-Sided (Symmetrical Distribution) | 1% (0.5%+0.5%) | $10 | $30 | $90 | Recommended general solution |
| 5% (2.5%+2.5%) | $12 | $36 | $108 | ||
| 10% (5%+5%) | $14 | $42 | $126 | ||
| 20% (10%+10%) | $18 | $54 | $162 | ||
| 30% (15%+15%) | $20 | $60 | $180 | ||
| 40% (20%+20%) | $30 | $90 | $270 | ||
| 50% (25%+25%) | $40 | $120 | $360 | ||
| Bulk Hydrophobic Enhancement (Through-Thickness) | 1% | $10 | $30 | $90 | Entire structure hydrophobic; suitable for high water resistance |
| 5% | $12 | $36 | $108 | ||
| 10% | $14 | $42 | $126 | ||
| 20% | $18 | $54 | $162 | ||
| 30% | $20 | $60 | $180 |
📌 Notes
Size options: 5×5 cm, 10×10 cm, 20×20 cm (custom cutting and full rolls available).
Double-sided ratios: Percentages are total PTFE content, e.g., 20% (10%+10%) means 10% per side.
Bulk enhancement: PTFE penetrates entire carbon paper thickness; ideal for high humidity, high pressure, or anti-flooding applications (e.g., PEMWE, flow batteries).
MOQ: Single-piece orders accepted.
Lead time: In-stock items ship in 1–3 days; custom orders in 3–5 days.
🧩 Hydrophobic Enhancement Types
| Type | Processing Location | Suitable Applications |
|---|---|---|
| Single Side (MPL Surface) | MPL surface or shallow layer | Improves catalyst interface drainage, reduces flooding |
| Single Side (Carbon Paper Surface) | Gas channel contact side | Improves drainage and anti-flooding at flow field |
| Double-Sided (Standard) | Both MPL and carbon paper surfaces | Balanced hydrophobicity, suitable for most fuel cells |
| Bulk (Through-Thickness) | Entire thickness | Extreme water management, liquid flow batteries, PEMWE |
