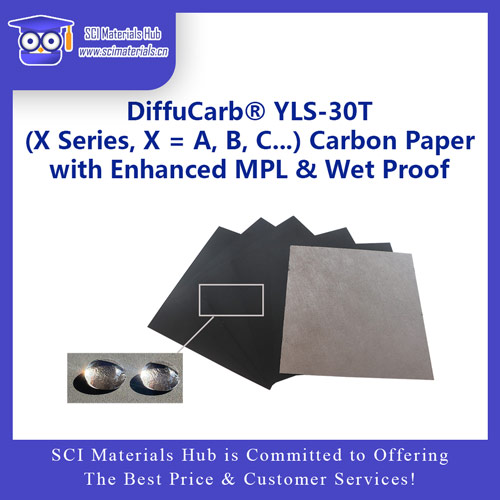

DiffuCarb® YLS-30T (X-Series) Carbon Paper with Enhanced MPL & Wet Proof

  • Product Code：
  • Description：
  • Brand：DiffuCarb®
  • Lead time：In stock
  • Views：
  • Telephone：+86 153-5789-9751; +86 156-0553-2352
  • Keywords：DiffuCarb® YLS-30T (X Series, X = A, B, C, H...) Carbon Paper with Enhanced MPL & Wet Proof , SCI Materials Hub
DiffuCarb® YLS-30T X-Series Enhanced Hydrophobic MPL Carbon Paper
DiffuCarb® YLS-30T X-Series · A / B / C / H Enhanced Hydrophobic MPL Carbon Paper

Enhanced Hydrophobic MPL Carbon Paper
for Gas–Liquid–Solid Electrochemical Interfaces

Based on Toray TGPH060 carbon paper, the YLS-30T X-Series combines substrate hydrophobic treatment and a microporous layer to support gas–liquid management in fuel cells, CO₂ electrolysis, water electrolysis and research-grade gas diffusion electrode systems.

Toray TGPH060 Substrate 0.23–0.30 mm A/B/H: XC-72R C: XC-72 MPL Levels 2–6 20 Standard Models
View Price List Buy on Amazon
01
PRODUCT OVERVIEW

DiffuCarb® YLS-30T X-Series

Enhanced hydrophobic microporous-layer carbon paper based on Toray TGPH060

DiffuCarb® YLS-30T (X-Series) is an enhanced hydrophobic microporous layer (MPL) carbon paper based on Toray TGPH060 substrate. Its layered structure — carbon paper substrate + hydrophobic treatment + MPL coating — is engineered for fuel cells, CO₂ electrolysis, and water electrolysis, with emphasis on gas–liquid management and electrochemical interface stability.

20

20 Standard Models

A2–A6, B2–B6, C2–C6 and H2–H6 cover four series and five MPL loading levels.

0.23

0.23–0.30 mm

Overall thickness varies with MPL loading and coating level.

H₂O

Adjustable Hydrophobicity

Series-level hydrophobicity differences support varied electrolyte and water-management conditions.

MPL

2–6 MPL Levels

Higher number indicates a higher MPL loading / thickness level.

02
STRUCTURE & MATERIAL

Layered Structure & Material Properties

Carbon substrate + hydrophobic treatment + microporous layer

Microporous Layer (MPL)
XC-72R or XC-72
Hydrophobic Treatment Layer
Series-dependent substrate / MPL hydrophobicity
Toray TGPH060 Carbon Paper
Conductive porous structural substrate
Illustration is schematic and not drawn to scale. Total thickness is approximately 0.23–0.30 mm depending on MPL loading.
Core material definition
  • Base Material: Toray TGPH060 carbon paper
  • Thickness Range: 0.23–0.30 mm
  • A / B / H Series: Vulcan XC-72R carbon black MPL
  • C Series: Vulcan XC-72 carbon black MPL
MPL material difference: XC-72R is used for A/B/H series, while the C series uses XC-72 with a denser pore structure according to the current product definition.
03
X-SERIES CLASSIFICATION

A / B / C / H Series

Substrate hydrophobicity, MPL hydrophobicity and carbon-black system

A

A-Series · Moderate Hydrophobicity

XC-72R MPL for low electrolyte infiltration environments and common gas-diffusion studies.

Substrate: ●○○○○○
MPL: ●●●○○○
Models: A2 / A3 / A4 / A5 / A6
B

B-Series · Higher Hydrophobicity

XC-72R MPL with increased overall hydrophobicity for fuel cells and general electrolysis.

Substrate: ●●●○○○
MPL: ●●●●○○
Models: B2 / B3 / B4 / B5 / B6
C

C-Series · Dense-Pore MPL

XC-72 MPL with denser pores for higher-pressure or stronger liquid-blocking conditions.

Substrate: ●○○○○○
MPL: ●●●○○○
Models: C2 / C3 / C4 / C5 / C6
H

H-Series · Very High Hydrophobicity

XC-72R MPL with highly hydrophobic substrate treatment for stronger electrolyte resistance.

Substrate: ●●●●●○
MPL: ●●●●○○
Models: H2 / H3 / H4 / H5 / H6
04
MODEL DEFINITION

MPL Loading / Thickness Logic

X2–X6 indicates the MPL loading / thickness level within each series

2–3

Thin MPL

Higher gas transport and lower diffusion resistance; suitable for dry fuel cells or selected CO₂RR conditions.

4

Medium MPL

Balanced gas–liquid management, positioned as the general-purpose middle grade.

5–6

Thick MPL

Stronger liquid blocking and anti-flooding behavior for long-term or higher electrolyte-loading conditions.

Selection principle: A larger number corresponds to a thicker / higher-loading MPL. A thinner MPL generally favors gas transport, while a thicker MPL increases liquid-blocking resistance. Thickness should therefore be selected according to the actual operating condition rather than treated as “the thicker, the better.”
05
APPLICATION GUIDE

Application Scenarios & Recommendations

Suggested model families based on the supplied application guidance

CO₂ Electrolysis (CO₂RR)

A3–A4 / C3–C4 for balancing gas diffusion and electrolyte blocking.

PEMFC / AEMFC Fuel Cells

A2–A3 / H3 for water management and gas-diffusion applications.

Alkaline Water Electrolysis Cathode

B5–B6 / H5–H6 for stronger anti-flooding and electrolyte resistance.

Research & Testing

Compare multiple grades, such as A3 vs. A5, to study MPL loading effects.

06
KEY ADVANTAGES

Functional Highlights

Designed around hydrophobicity control, gas diffusion and structural support

H₂O

Adjustable Hydrophobicity

Medium to high hydrophobicity levels for different electrochemical environments.

GAS

Gas Diffusion

MPL grading enables different balances between gas transport and liquid blocking.

Ω

Conductive Carbon Structure

Toray TGPH060 provides a conductive porous support for electrochemical electrode structures.

MEA

Mechanical Support

Suitable for compression, electrode stacking and MEA-related fabrication workflows.

07
HANDLING & USAGE

Handling Guidelines

General handling recommendations from the supplied product notes

1

Cutting

Use laser cutting or sharp blades where appropriate; avoid unnecessary fiber breakage or rough edges.

2

Stacking

Apply pressure evenly during assembly to reduce local mechanical damage.

3

Electrolysis Environment

The supplied guidance positions the material as more suitable for alkaline conditions; acidic use should be evaluated carefully for the actual operating window.

4

Reinforcement

Titanium or nickel mesh may be combined with the carbon paper where additional mechanical support or flow distribution is required.

08
CATALYST COATING

Catalyst Coating Workflow

Reference process for depositing a catalyst layer onto the MPL surface

1

Slurry Preparation

Mix catalyst powder, ionomer and solvent to prepare a coating slurry.

2

Dispersion

Use ultrasonication and/or stirring to improve slurry homogeneity.

3

Deposition

Apply by spray coating, blade coating or screen printing onto the MPL surface.

4

Drying

The supplied reference process uses 60–80 °C drying, with optional 120–200 °C thermal treatment where compatible with the catalyst / ionomer / solvent system.

5

MEA Fabrication

Combine with a PEM or AEM membrane according to the intended electrode / membrane assembly process.

09
PRICE LIST

DiffuCarb® YLS-30T X-Series Price List

USD pricing for 5×5 cm, 10×10 cm and 20×20 cm sizes

SeriesModelMPL TypeSubstrate HydrophobicityMPL Hydrophobicity5×5 cm10×10 cm20×20 cm
AA2XC-72R●○○○○○●●●○○○$8$25$72
AA3XC-72R●○○○○○●●●○○○$10$27$80
AA4XC-72R●○○○○○●●●○○○$17$40$100
AA5XC-72R●○○○○○●●●○○○$23$70$210
AA6XC-72R●○○○○○●●●○○○$33$100$300
BB2XC-72R●●●○○○●●●●○○$10$27$80
BB3XC-72R●●●○○○●●●●○○$17$40$100
BB4XC-72R●●●○○○●●●●○○$23$70$210
BB5XC-72R●●●○○○●●●●○○$30$100$327
BB6XC-72R●●●○○○●●●●○○$33$117$400
CC2XC-72●○○○○○●●●○○○$8$25$72
CC3XC-72●○○○○○●●●○○○$10$27$80
CC4XC-72●○○○○○●●●○○○$17$40$100
CC5XC-72●○○○○○●●●○○○$23$70$210
CC6XC-72●○○○○○●●●○○○$33$100$300
HH2XC-72R●●●●●○●●●●○○$17$40$100
HH3XC-72R●●●●●○●●●●○○$23$70$210
HH4XC-72R●●●●●○●●●●○○$30$100$327
HH5XC-72R●●●●●○●●●●○○$33$117$400
HH6XC-72R●●●●●○●●●●○○$40$133$467
10
FAQ

Frequently Asked Questions

Common selection and handling questions

Q1. Can DiffuCarb® YLS-30T be used as an anode in water electrolysis?
Not recommended. Carbon materials can degrade under high anodic potentials and are generally better suited to cathode diffusion-layer applications.
Q2. How should A / B / C / H series be selected?
A = moderate hydrophobicity; B = higher hydrophobicity; C = XC-72 dense-pore MPL; H = very high hydrophobicity for stronger electrolyte-blocking conditions.
Q3. Does MPL thickness affect gas diffusion?
Yes. A thicker MPL increases the diffusion path and liquid-blocking capability. Selection requires balancing gas transport and flooding resistance.
Q4. How can service life be improved?
Avoid unsuitable long-term acidic / high-potential operation, select the MPL / hydrophobicity grade for the actual environment, and use mechanical reinforcement where needed.
Q5. Is customization available?
Yes. MPL loading, hydrophobicity and catalyst pre-coating can be customized according to the supplied product-service scope.

International Orders & Shipping

For quotations, bulk quantities and international shipment arrangements, contact SCI Materials Hub.

Email: contact@scimaterials.cn
WhatsApp & Tel: +86 153-7569-8751
Shipping: DHL / FedEx / UPS / SF-Express / requested carriers
Payment: Bank Wire Transfer / PayPal / Credit Card / Alipay / WeChat Pay
Quick Order on Amazon
Quick-order channels also include eBay and Alibaba stores. Bulk quantities with discount are available upon request.
DiffuCarb® YLS-30T X-Series · Enhanced Hydrophobic MPL Carbon Paper · SCI Materials Hub
