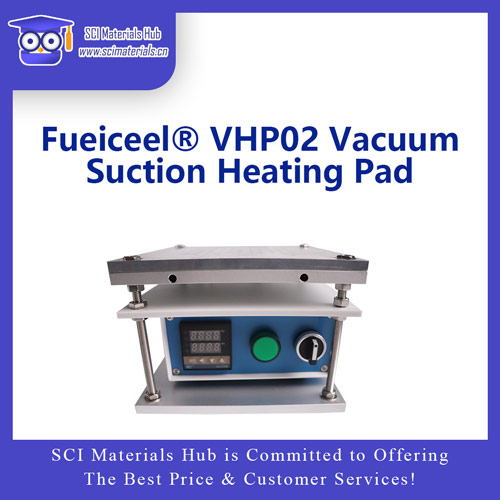

🚀 Fueiceel® VHP02 Vacuum Suction Heating Pad
Professional platform for MEA and electrode preparation (with external vacuum pump design)
🧪 Product Overview
The Fueiceel® VHP02 series vacuum suction heating pad is a lab-grade device designed specifically for membrane electrode assembly (MEA) lamination, electrode transfer, and sample fixation. It offers uniform large-area heating and efficient vacuum suction, enabling firm fixation of flexible films, electrode materials, or other precision samples—significantly improving fabrication quality and operational efficiency. With an external pump configuration (optional), it supports customizable suction force and flow rate to suit different application needs.
✅ Key Features
🔥 Large-area heating with uniform temperature distribution
🧲 Efficient vacuum suction—keeps samples securely in place
🔌 External pump design—flexible and customizable suction setup
🔁 Suitable for MEAs, electrodes, thin-film devices, and more
🔧 Multiple pump options for precise control of suction power
🧾 Product Specification Table
| Model | Heating Area | Suction Area | Built-in Pump | Recommended Application |
|---|
| VHP02-2020 | 20×20 cm | 10×10 cm | ❌ External | Small-sized MEA/electrode lamination (for most applications) |
| VHP02-2525 | 25×25 cm | 15×15 cm | ❌ External | Standard MEA or thin-film device handling |
| VHP02-3030 | 30×30 cm | 20×20 cm | ❌ External | Mid-size sample heating and fixation |
| VHP02-3535 | 35×35 cm | 25×25 cm | ❌ External | Large size CCM/MEA, flexible device |
| VHP02-4040 | 40×40 cm | 30×30 cm | ❌ External | Large-area MEA or electrode processing |
💨 Optional Vacuum Pump Specifications (Sold Separately)
| Pump Model | Ultimate Vacuum | Flow Rate | Notes |
|---|
| VHP-25a | -0.95 bar | 25 L/min | Moderate suction; suitable for small/medium samples |
| VHP-80a | -0.98 bar | 80 L/min | Ideal for medium-to-large area fixation |
| VHP-105a | -0.98 bar | 105 L/min | Strong suction; recommended for ≥35 cm platforms |
| VHP-180a | -0.98 bar | 180 L/min | Ultra-strong suction for demanding applications |
📌
Note: A higher vacuum or flow rate doesn’t always mean better performance. Choose based on sample material, area, and fixation needs.
🔧 Example Applications
✔️ PEMFC Membrane Electrode Assembly (MEA) hot pressing
✔️ Flexible electrode film heating and transfer
✔️ Thin-film device peeling and lamination
✔️ Electrochemical & battery materials research in labs
