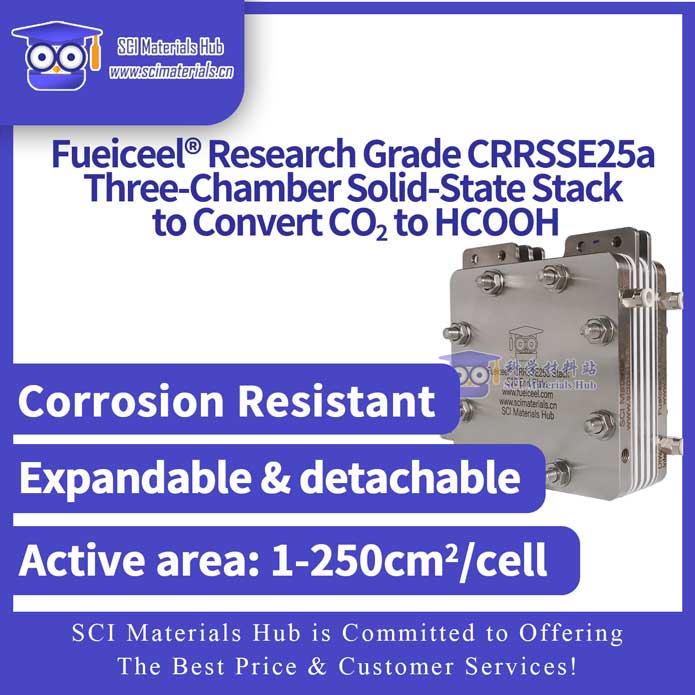

🧪 Fueiceel® CRRSSE Series Three-Compartment Solid-State Electrolyzer Stack | CO₂-to-Formic Acid Conversion | Multiple Sizes & Stack Layers | Parallel & Series Connection Supported

🌱 Innovative Three-Chamber Design · Efficient CO₂ Electroreduction · Customizable for Research Applications

🔍 Product Overview
The Fueiceel® CRRSSE series is a patented, research-grade three-compartment solid-state electrolyzer stack designed specifically for the efficient electrochemical conversion of carbon dioxide (CO₂) into formic acid (HCOOH). The unique three-chamber architecture effectively separates the anode, cathode, and intermediate reaction zones, enabling precise ion transport and significantly improving conversion efficiency and product purity.

This system supports both parallel and series connection modes, accommodates a wide range of active electrode areas, and is compatible with various membranes and catalysts, making it ideal for electrocatalyst screening, CO₂ utilization research, and green fuel synthesis.

⚙️ Working Principle

1️⃣ Cathode Chamber | CO₂ Electroreduction

• Humidified CO₂ is electrochemically reduced to formate ions (HCOO⁻)

• Recommended cathode: DiffuCarb™ E411 carbon paper electrode

  CO₂ + H₂O + 2e⁻ → HCOO⁻ + OH⁻

2️⃣ Anode Chamber | Water Oxidation

• Deionized water is oxidized at the anode, generating oxygen (O₂), protons (H⁺), and electrons (e⁻)

• Recommended anode: DiffuCarb™ E300T or Youveim® E309 IrOx electrode

  H₂O → ½O₂ + 2H⁺ + 2e⁻

3️⃣ Intermediate Chamber | Ion Transfer and Formic Acid Production

• Protons (H⁺) migrate through a cation exchange membrane (e.g., Nafion® N324) to the intermediate chamber

• Formate ions (HCOO⁻) migrate through an anion exchange membrane (e.g., NexIonic™, Sustainion™) to the intermediate chamber

• H⁺ and HCOO⁻ combine to form formic acid (HCOOH)

  H⁺ + HCOO⁻ → HCOOH

📐 Specifications and Options

🚀 Key Advantages

✅ Patented three-compartment design for efficient ion separation and minimal crossover
✅ Compatible with multiple membrane and catalyst materials for versatile testing
✅ Modular stack design with flexible layer numbers, supporting automation and scale-up
✅ Wide range of electrode areas to suit various research needs
✅ Supports both series and parallel electrical configurations
✅ High sealing integrity for long-term stable operation and cycling
✅ Expandable with temperature, flow, and product collection control systems (custom options available)

🎯 Recommended Applications

✔️ CO₂ capture and conversion research
✔️ Electrocatalyst performance evaluation
✔️ Green energy carrier and liquid fuel development
✔️ Electrolyzer design and reaction kinetics studies
✔️ Formic acid production and downstream process development

📦 Ordering Information
Please specify the following when ordering for customized solutions:
🔹 Desired active electrode area (cm²)
🔹 Number of stack layers (1–20)
🔹 Preferred connection mode (parallel or series)
🔹 Required electrode and membrane types

📞 Contact us for [detailed drawings], [selection guides], or [accessories list]. Bulk orders and project customization are welcomed for academic, research, and industrial clients.
