🧪 Product Overview

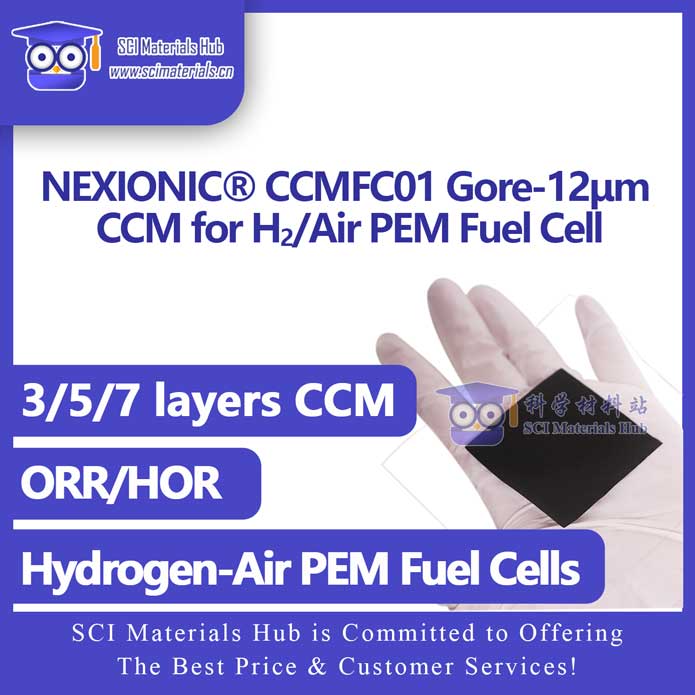

NEXIONIC® CCMFC01 is a catalyst coated membrane (CCM) developed for H2-Air proton exchange membrane fuel cells (PEMFCs), utilizing the ultra-thin GORE® M788.12 (12 µm) proton membrane. This membrane offers outstanding proton conductivity, mechanical strength, and gas barrier properties. Paired with 60% Pt/C catalyst, it is optimized for hydrogen-air fuel cell systems. The product supports custom configurations in terms of membrane type, size, layer structure, and catalyst loading, making it suitable for R&D, stack integration, academic education, and high-performance PEMFC systems.
🔧 Technical Specifications
Proton Membrane: GORE® M788.12 (Options: MX765.08 / M775.15 / M735.18)
Membrane Thickness: 12 µm (others available upon request)
Structure Type: Catalyst-Coated Membrane (CCM)
Catalyst: 60% Pt/C, customizable (Default Accelerate®, optional Tanaka, Premetek, Fueiceel® etc)
System Compatibility: Hydrogen-Air PEM Fuel Cells
| Type | Layer Structure | Composition | Catalyst Loading (mgPt/cm²) | Frame / GDL |
|---|---|---|---|---|
| CCM | 3 layers | Cathode Catalyst + Proton Membrane + Anode Catalyst | Cathode 0.5 / Anode 0.1 or 0.5 | ✘ / ✘ |
| Framed CCM | 5 layers | Cathode PEN Frame + Cathode Catalyst + Membrane + Anode Catalyst + Anode PEN Frame | Same as above | ✔ / ✘ |
| Full MEA | 7 layers | Cathode PEN Frame + GDL + Cathode Catalyst + Membrane + Anode Catalyst + GDL + Anode PEN Frame | Same as above | ✔ / ✔ |
| Active Area (cm²) | Membrane Size (cm²) | Edge Frame Size (cm²) |
|---|---|---|
| 1 × 1 | 3 × 3 | 6 × 6 |
| 2 × 2 | 4 × 4 | 6 × 6 |
| 2.25 × 2.25 | 4.5 × 4.5 | 6 × 6 |
| 5 × 5 | 7 × 7 | 10 × 10 |
| 7.1 × 7.1 | 9 × 9 | 12 × 12 |
| 10 × 10 | 12 × 12 | 15 × 15 |
| 10 × 20 | 12 × 22 | 15 × 25 |
| 20 × 20 | 22 × 22 | 25 × 25 |
✅ Ultra-thin Gore membrane (12 µm) ensures low resistance and high mechanical integrity
✅ Premium 60% Pt/C catalyst for high performance and durability
✅ Three structural types for flexible integration: CCM (3L/5L) and full MEA (7L)
✅ Multiple sizes from lab-scale to stack-scale
✅ Compatible with a variety of gas diffusion layers and fuel cell configurations
✅ Supports customization of catalyst loading and edge sealing
💡 Advantages of Pt/C Catalyst in Hydrogen-Air PEMFCs
Cathode (0.5 mgPt/cm²): Higher ORR (Oxygen Reduction Reaction) loading to improve performance and durability; Pt/C ensures excellent stability in acidic conditions
Anode (0.1 mgPt/cm²): Lower HOR (Hydrogen Oxidation Reaction) demand allows reduced Pt usage, lowering cost
Optional Anode (0.5 mgPt/cm²): Ideal for durability testing or high current scenarios with better CO impurity resistance
🎯 Application Scenarios
✔ Hydrogen-air PEMFC R&D and performance testing
✔ Stack and system-level assembly experiments
✔ Electrocatalyst evaluation and teaching demonstrations
✔ Aerospace, UAVs, portable power systems
📦 Supply & Customization
✅ Custom sizes, catalyst loadings available
✅ GDL options available upon request
✅ Formal invoice provided
📧 Contact Us
For bulk orders, technical assistance, or custom requests:
Email: contact@scimaterials.cn
WeChat: SCI-Materials-Hub
Whatsapp: +86-15357899751
🛒 Ready Stock for Scientific Use | Fast Delivery | Reliable Support
For international orders, please ask us for quotes via
Email: contact@scimaterials.cn Tel: +86 15375698751
Clik here to put quick orders on our ebay / Amazon stores
📋 NEXIONIC® CCMFC01 – 3-Layer CCM Specifications / Dimensions / Pricing
Table Note: No frame membrane; structure: Cathode Catalyst + Proton Exchange Membrane + Anode Catalyst
| Model | Structure | Active Area (cm²) | Membrane Area (cm²) | Description | Cathode Loading (mgPt/cm²) | Anode Loading (mgPt/cm²) | Price (USD) |
|---|---|---|---|---|---|---|---|
| CCMFC01-3L-1 | 3-layer | 1 × 1 | 3 × 3 | No frame membrane, no GDL | 0.5 | 0.1 | $30 |
| CCMFC01-3L-1H | 3-layer | 1 × 1 | 3 × 3 | No frame membrane, no GDL | 0.5 | 0.5 | $50 |
| CCMFC01-3L-4 | 3-layer | 2 × 2 | 4 × 4 | No frame membrane, no GDL | 0.5 | 0.1 | $100 |
| CCMFC01-3L-4H | 3-layer | 2 × 2 | 4 × 4 | No frame membrane, no GDL | 0.5 | 0.5 | $130 |
| CCMFC01-3L-5 | 3-layer | 2.25 × 2.25 | 4.5 × 4.5 | No frame membrane, no GDL | 0.5 | 0.1 | $120 |
| CCMFC01-3L-5H | 3-layer | 2.25 × 2.25 | 4.5 × 4.5 | No frame membrane, no GDL | 0.5 | 0.5 | $150 |
| CCMFC01-3L-25 | 3-layer | 5 × 5 | 7 × 7 | No frame membrane, no GDL | 0.5 | 0.1 | $150 |
| CCMFC01-3L-25H | 3-layer | 5 × 5 | 7 × 7 | No frame membrane, no GDL | 0.5 | 0.5 | $180 |
| CCMFC01-3L-50 | 3-layer | 7.1 × 7.1 | 9 × 9 | No frame membrane, no GDL | 0.5 | 0.1 | $160 |
| CCMFC01-3L-50H | 3-layer | 7.1 × 7.1 | 9 × 9 | No frame membrane, no GDL | 0.5 | 0.5 | $200 |
| CCMFC01-3L-100 | 3-layer | 10 × 10 | 12 × 12 | No frame membrane, no GDL | 0.5 | 0.1 | $180 |
| CCMFC01-3L-100H | 3-layer | 10 × 10 | 12 × 12 | No frame membrane, no GDL | 0.5 | 0.5 | $230 |
| CCMFC01-3L-200 | 3-layer | 10 × 20 | 12 × 22 | No frame membrane, no GDL | 0.5 | 0.1 | $250 |
| CCMFC01-3L-200H | 3-layer | 10 × 20 | 12 × 22 | No frame membrane, no GDL | 0.5 | 0.5 | $350 |
| CCMFC01-3L-400 | 3-layer | 20 × 20 | 22 × 22 | No frame membrane, no GDL | 0.5 | 0.1 | $400 |
| CCMFC01-3L-400H | 3-layer | 20 × 20 | 22 × 22 | No frame membrane, no GDL | 0.5 | 0.5 | $600 |
📋 NEXIONIC® CCMFC01 – 5-Layer CCM Specifications / Dimensions / Pricing
Table Note: With frame membrane; structure: Cathode Frame + Cathode Catalyst + Proton Membrane + Anode Catalyst + Anode Frame
| Model | Structure | Active Area (cm²) | Membrane Area (cm²) | Frame Area (cm²) | Description | Cathode Loading (mgPt/cm²) | Anode Loading (mgPt/cm²) | Price (USD) |
|---|---|---|---|---|---|---|---|---|
| CCMFC01-5L-1 | 5-layer | 1 × 1 | 3 × 3 | 6 × 6 | With cathode/anode frame | 0.5 | 0.1 | $40 |
| CCMFC01-5L-1H | 5-layer | 1 × 1 | 3 × 3 | 6 × 6 | With cathode/anode frame | 0.5 | 0.5 | $60 |
| CCMFC01-5L-4 | 5-layer | 2 × 2 | 4 × 4 | 6 × 6 | With cathode/anode frame | 0.5 | 0.1 | $110 |
| CCMFC01-5L-4H | 5-layer | 2 × 2 | 4 × 4 | 6 × 6 | With cathode/anode frame | 0.5 | 0.5 | $140 |
| CCMFC01-5L-5 | 5-layer | 2.25 × 2.25 | 4.5 × 4.5 | 6 × 6 | With cathode/anode frame | 0.5 | 0.1 | $130 |
| CCMFC01-5L-5H | 5-layer | 2.25 × 2.25 | 4.5 × 4.5 | 6 × 6 | With cathode/anode frame | 0.5 | 0.5 | $160 |
| CCMFC01-5L-25 | 5-layer | 5 × 5 | 7 × 7 | 10 × 10 | With cathode/anode frame | 0.5 | 0.1 | $160 |
| CCMFC01-5L-25H | 5-layer | 5 × 5 | 7 × 7 | 10 × 10 | With cathode/anode frame | 0.5 | 0.5 | $190 |
| CCMFC01-5L-50 | 5-layer | 7.1 × 7.1 | 9 × 9 | 12 × 12 | With cathode/anode frame | 0.5 | 0.1 | $170 |
| CCMFC01-5L-50H | 5-layer | 7.1 × 7.1 | 9 × 9 | 12 × 12 | With cathode/anode frame | 0.5 | 0.5 | $210 |
| CCMFC01-5L-100 | 5-layer | 10 × 10 | 12 × 12 | 15 × 15 | With cathode/anode frame | 0.5 | 0.1 | $190 |
| CCMFC01-5L-100H | 5-layer | 10 × 10 | 12 × 12 | 15 × 15 | With cathode/anode frame | 0.5 | 0.5 | $240 |
| CCMFC01-5L-200 | 5-layer | 10 × 20 | 12 × 22 | 15 × 25 | With cathode/anode frame | 0.5 | 0.1 | $260 |
| CCMFC01-5L-200H | 5-layer | 10 × 20 | 12 × 22 | 15 × 25 | With cathode/anode frame | 0.5 | 0.5 | $360 |
| CCMFC01-5L-400 | 5-layer | 20 × 20 | 22 × 22 | 25 × 25 | With cathode/anode frame | 0.5 | 0.1 | $420 |
| CCMFC01-5L-400H | 5-layer | 20 × 20 | 22 × 22 | 25 × 25 | With cathode/anode frame | 0.5 | 0.5 | $620 |
📋 NEXIONIC® MEAFC01 – 7-Layer MEA Specifications / Dimensions / Pricing
Table Note: With frame membrane + GDL; structure: Cathode Frame + Cathode GDL + Cathode Catalyst + Proton Membrane + Anode Catalyst + Anode GDL + Anode Frame
| Model | Structure | Active Area (cm²) | Membrane Area (cm²) | Frame Area (cm²) | Description | Cathode Loading (mgPt/cm²) | Anode Loading (mgPt/cm²) | Price (USD) |
|---|---|---|---|---|---|---|---|---|
| MEAFC01-7L-1 | 7-layer | 1 × 1 | 3 × 3 | 6 × 6 | With frame membrane + GDL | 0.5 | 0.1 | $50 |
| MEAFC01-7L-1H | 7-layer | 1 × 1 | 3 × 3 | 6 × 6 | With frame membrane + GDL | 0.5 | 0.5 | $70 |
| MEAFC01-7L-4 | 7-layer | 2 × 2 | 4 × 4 | 6 × 6 | With frame membrane + GDL | 0.5 | 0.1 | $120 |
| MEAFC01-7L-4H | 7-layer | 2 × 2 | 4 × 4 | 6 × 6 | With frame membrane + GDL | 0.5 | 0.5 | $150 |
| MEAFC01-7L-5 | 7-layer | 2.25 × 2.25 | 4.5 × 4.5 | 6 × 6 | With frame membrane + GDL | 0.5 | 0.1 | $140 |
| MEAFC01-7L-5H | 7-layer | 2.25 × 2.25 | 4.5 × 4.5 | 6 × 6 | With frame membrane + GDL | 0.5 | 0.5 | $170 |
| MEAFC01-7L-25 | 7-layer | 5 × 5 | 7 × 7 | 10 × 10 | With frame membrane + GDL | 0.5 | 0.1 | $170 |
| MEAFC01-7L-25H | 7-layer | 5 × 5 | 7 × 7 | 10 × 10 | With frame membrane + GDL | 0.5 | 0.5 | $200 |
| MEAFC01-7L-50 | 7-layer | 7.1 × 7.1 | 9 × 9 | 12 × 12 | With frame membrane + GDL | 0.5 | 0.1 | $180 |
| MEAFC01-7L-50H | 7-layer | 7.1 × 7.1 | 9 × 9 | 12 × 12 | With frame membrane + GDL | 0.5 | 0.5 | $220 |
| MEAFC01-7L-100 | 7-layer | 10 × 10 | 12 × 12 | 15 × 15 | With frame membrane + GDL | 0.5 | 0.1 | $200 |
| MEAFC01-7L-100H | 7-layer | 10 × 10 | 12 × 12 | 15 × 15 | With frame membrane + GDL | 0.5 | 0.5 | $250 |
| MEAFC01-7L-200 | 7-layer | 10 × 20 | 12 × 22 | 15 × 25 | With frame membrane + GDL | 0.5 | 0.1 | $280 |
| MEAFC01-7L-200H | 7-layer | 10 × 20 | 12 × 22 | 15 × 25 | With frame membrane + GDL | 0.5 | 0.5 | $380 |
| MEAFC01-7L-400 | 7-layer | 20 × 20 | 22 × 22 | 25 × 25 | With frame membrane + GDL | 0.5 | 0.1 | $480 |
| MEAFC01-7L-400H | 7-layer | 20 × 20 | 22 × 22 | 25 × 25 | With frame membrane + GDL | 0.5 | 0.5 | $680 |
📌 Note: Frame membrane inner cut-out = Active area = GDL size
Default GDL is W1S1011 Carbon Cloth with MPL, other GDL can be customized upon request
Worldwide shipping via DHL, SF-Express & other requested carriers.
Bulk quantities with discount upon request.
Payments via Bank Wire Transfer, Paypal, Credit card (via Taobao), Alipay, Wechat-pay are accepted.
