🧪 Designed for Performance, Cycling, and Conductivity Testing of Metal Batteries
⚙️ Compatible with Electrochemical Workstations & Battery Testing Systems (LAND / Neware)

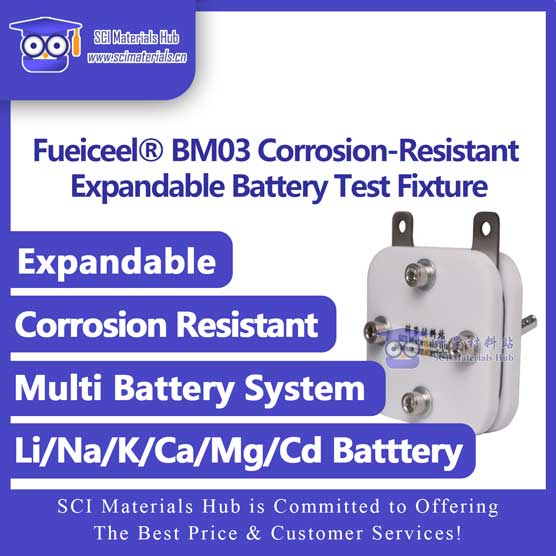

Fueiceel® BM03 Corrosion-Resistant Expandable Battery Test Fixture is a high-performance two-electrode testing hardware designed for electrochemical experiments involving lithium, sodium, potassium, magnesium, calcium, and other metal-based batteries. Constructed with chemically resistant engineering plastics and corrosion-resistant titanium current collectors (with tabs), the fixture ensures reliable conductivity, long-term durability, and compatibility with aggressive electrolytes such as KOH, HCl, DMSO, and organic systems.
BM03 supports a wide range of circular and square electrodes (Φ12 mm to Φ100 mm, 10×10 mm to 100×100 mm) with customizable sealing gaskets. It accommodates electrode thicknesses from 0.05 mm to 20 mm, including copper foil, aluminum foil, nickel foam, carbon cloth, carbon paper, graphite felt, and self-supporting structures. The modular design allows for stackable expansion, enabling complex multi-layer cell assembly or simulation of fuel cell reactor cores.
The fixture features excellent gas tightness, robust mechanical integrity, and is compatible with electrochemical workstations (Gamry, CHI, Autolab, Zahner) and battery testers (LAND, Neware). It’s an ideal choice for battery performance evaluation, cycle life testing, conductivity measurements, and electrolyte interface studies under demanding conditions.
| Component | Material / Function Description |
|---|---|
| Terminal Plates | Engineering plastic – corrosion-resistant, lightweight, and robust |
| Current Collectors | Corrosion-resistant titanium with tabs – high conductivity, stable |
| Sealing Gaskets | PTFE or FKM – chemical resistance, excellent sealing (1 cathode + 1 anode) |
| Electrode Chamber | Center hole in gasket – supports various circular/square electrodes |
| Electrolyte Channel | Separator clamped between gaskets – ensures ion transport & sealing |
● Circular Electrodes: Φ12 / Φ14 / Φ16 / Φ18 / Φ20 / Φ30 / Φ50 / Φ100 mm
(● Square Electrodes: 10×10 / 12×12 / 14×14 / 16×16 / 20×20 / 30×30 / 50×50 / 70×70 / 100×100 mm
Hole size: 0.5 mm larger for easy installation and reliable sealing)
Battery performance, capacity, and impedance testing
Electrochemical testing for Li, Na, K, Mg, Ca metal batteries
Conductivity & stability tests for various electrode materials
Long-term cycling and safety/thermal runaway experiments
Electrolyte/membrane interface behavior studies
Simulated reactor core with multi-layer stacked electrodes
Use in highly corrosive environments (KOH, HCl, DMSO, organics, etc.)
✔ Supported Materials:
Copper foil, aluminum foil, coated powder electrodes
Nickel foam, carbon cloth, carbon paper, graphite felt
Self-supporting sheets and custom structured electrodes
📏 Supported Thickness:
0.05 mm – 20 mm
(Default configuration supports ≤5 mm; >5 mm requires custom compression spacer)
| Feature | Description |
|---|---|
| 🧪 Corrosion Resistance | Chemically compatible with strong solvents (DMSO, KOH, acids, organics) |
| 🔧 Expandable Design | Modular structure – supports multi-layer stacked testing |
| 🔩 Precision Fit | Large size and shape options with accurate electrode fit |
| 💡 Wide Compatibility | Fits a wide range of materials & thickness (0.05–20 mm) |
| 🔒 Airtight Sealing | Prevents electrolyte leakage for stable testing |
| 🔍 Observation Ready (Optional) | Viewport available on selected models for real-time observation |
| Item | Details |
|---|---|
| ⚙ Customization | Non-standard cutouts, shapes, and stackable setups supported |
| 🚚 Shipping | In-stock models ship immediately; custom orders ship in 2–5 days |
| 🧾 Invoice | Official invoices available upon request |
| System Type | Details |
|---|---|
| Electrochemical Workstations | Compatible with Gamry, CHI, Autolab, Zahner, etc. |
| Battery Test Platforms | Connects with LAND (蓝电), Neware (新威), and others |
| GDL / Membrane Testing | Supports various conductivity and interface studies |
Email: contact@scimaterials.cn
WeChat: SCI-Materials-Hub
WhatsApp: +86-15357899751
🛒 Secure | Corrosion-Resistant | Expandable | Ideal for Lab Use — Click to Buy Now!
For international orders, please ask us for quotes via
Email: contact@scimaterials.cn
Tel: +86 15375698751
Wechat: SCI-Materials-Hub
Clik here to put quick orders on our ebay/Amazon stores
📋 Fueiceel® BM03 Battery Test Fixture – Specifications & Pricing Table
| Model | Supported Electrode Size | Price (USD) |
|---|---|---|
| BM03-R10 | Φ10 mm round electrode | $85 |
| BM03-R12 | Φ12 mm round electrode | $85 |
| BM03-R14 | Φ14 mm round electrode | $85 |
| BM03-R16 | Φ16 mm round electrode | $85 |
| BM03-R20 | Φ20 mm round electrode | $85 |
| BM03-R30 | Φ30 mm round electrode | $98 |
| BM03-R50 | Φ50 mm round electrode | $140 |
| BM03-R70 | Φ70 mm round electrode | $170 |
| BM03-R100 | Φ100 mm round electrode | $240 |
| BM03-S10 | 10×10 mm square electrode | $85 |
| BM03-S12 | 12×12 mm square electrode | $85 |
| BM03-S14 | 14×14 mm square electrode | $85 |
| BM03-S16 | 16×16 mm square electrode | $85 |
| BM03-S20 | 20×20 mm square electrode | $85 |
| BM03-S30 | 30×30 mm square electrode | $98 |
| BM03-S50 | 50×50 mm square electrode | $140 |
| BM03-S70 | 70×70 mm square electrode | $170 |
| BM03-S100 | 100×100 mm square electrode | $240 |
| BM03-CUSTOM | Custom size (round or square) | Contact us |
Engineering plastic housing ×2
Titanium current collectors with tabs ×2
PTFE sealing gaskets ×2
🛠️ Optional Accessories
FKM gaskets
Transparent window version
Electrode compression module for thick electrodes
Special sealing structures
📏 Electrode Thickness Compatibility:
Supports 0.05 mm to 20 mm (default support ≤ 5 mm; compression module required for > 5 mm)
Worldwide shipping via DHL, SF-Express & other requested carriers.
Payments via Bank Transfer, Paypal, Credit card (via Alibaba), Alipay, Wechat-pay are accepted.
