🔋 Next-Gen Cathode Material for Advanced Lithium-ion Batteries
Tailored for mid-to-high-end lithium-ion batteries including pouch, prismatic, and cylindrical cells, LMFP-1 delivers superior energy density, stability, and cost-efficiency—ideal for both energy storage and power systems.
| ✅ Feature | 💡 Description |
|---|---|
| 🔋 High Capacity | Initial discharge capacity up to 154 mAh/g, even at 0.1C |
| ⚙️ Process-Friendly | Compacted density of 2.05 g/cm³, ideal for high-energy battery assembly |
| 🛡 Low Impurities | Magnetic substances only 0.34 ppm – excellent safety & cycle life |
| ⚡ High Efficiency | First-cycle efficiency up to 98.89% at 0.1C |
| Category | Property | Value | Test Method |
|---|---|---|---|
| Composition | Li | 4.45% | ICP |
| Mn | 19.96% | Titration | |
| Fe | 13.95% | Titration | |
| P | 19.60% | Precipitation | |
| Particle Size | D10 / D50 / D90 | 0.29 / 1.01 / 7.00 μm | Malvern MasterSizer 3000 |
| Carbon Content | C | 1.84% | IR Carbon Analyzer |
| Electrical Resistivity | 60 Ω·cm | Four-Probe Test | |
| Tap Density | 2.05 g/cm³ | Compaction Meter | |
| BET Surface Area | 18.00 m²/g | JW-DA Analyzer | |
| pH Value | 9.8 | pH Meter | |
| Magnetic Substances | 0.34 ppm | ICP | |

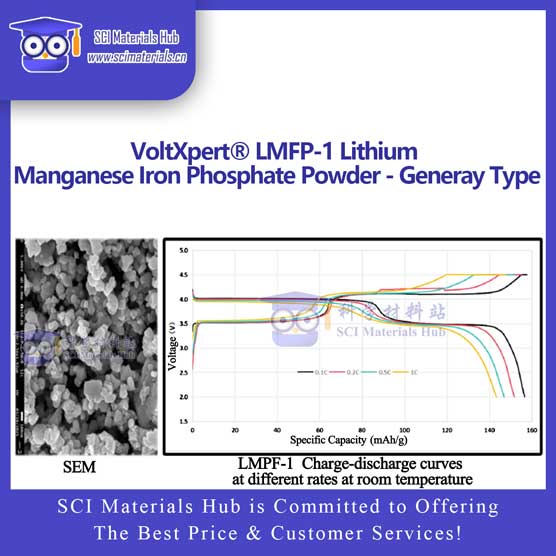

| Electrochemical | 0.1C Capacity | 154.00 mAh/g | Coin Cell, 2.0–4.5V |
| First-Cycle Efficiency | 98.89% | Same as above | |
| 1C Capacity | 143.00 mAh/g | Same as above |
⚡ EV Power Cells: Electric vehicles, e-bikes, scooters
🏠 Energy Storage: Home ESS, grid-scale storage, UPS
🔧 Small Power Tools: Drills, saws, power wrenches
💻 Consumer Devices: Drones, laptops, portable power banks
🧪 Lab Research & Prototyping: Cell development, battery R&D
| Component | Ratio | Role |
|---|---|---|
| LMFP Cathode Powder | 80–85% | Active material |
| Conductive Additive (e.g., Super P) | 5–10% | Improves conductivity |
| Binder (e.g., PVDF) | 5–10% | Ensures adhesion |
| NMP Solvent | As needed | Controls viscosity |
📌 Suggested Workflow:
Dissolve PVDF in NMP to form binder solution
Gradually add LMFP powder and conductive agent while stirring
Use high-shear mixing or planetary vacuum mixer for uniform dispersion
Coat the slurry onto aluminum foil
Dry at 80–120°C → Compact by roller → Final drying
Cut to size as needed
✅ Recommended operating environment: dry room or glovebox (dew point < -40℃)
✅ Post-use: seal immediately to prevent moisture pickup
| Package Size | Environment | Notes |
|---|---|---|
| < 1kg | Glovebox sealed + vacuum bottle | Ultra-dry lab-grade packaging |
| ≥ 1kg | Dry room sealed + vacuum foil bag | Ideal for pilot or bulk use |
🧊 Storage: ≤30°C, ≤60% RH, 12-month shelf life
🚫 Avoid moisture, heat, and physical damage during shipping
📧 Email: contact@scimaterials.cn
📞 Tel: +86 153-7569-8751
🔗 Click to place quick orders via our eBay / Amazon stores.
🌐 We ship worldwide via DHL, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
VoltXpert® LMFP-1 Lithium Manganese Iron Phosphate (LiMnFePO4) Powder - General Type
| Quantity | Packaging Type | Price (USD) | Application Recommendation |
|---|---|---|---|
| 5g | Sealed Bottle | $5.00 | Lab-scale electrode coating |
| 10g | Sealed Bottle | $8.00 | Coin-cell prototyping |
| 20g | Sealed Bottle | $14.00 | Material comparison & formulation screening |
| 50g | Sealed Bottle | $20.00 | Preliminary electrochemical evaluation |
| 100g | Sealed Bottle | $30.00 | Recommended size for academic research |
| 200g | Sealed Bottle | $50.00 | Semi-pilot-scale sample testing |
| 500g | Sealed Bottle | $68.00 | High-volume screening or pilot trials |
| 1kg | Aluminum Foil Bag | $130.00 | Industrial validation, cell prototyping |
| 2kg | Aluminum Foil Bag | $220.00 | Bulk usage for labs and R&D departments |
| 5kg | Aluminum Foil Bag | $500.00 | Pilot production and scale-up sourcing |
| 10kg | Aluminum Foil Bag | $900.00 | Volume procurement with discounted pricing |
