High Ionic Conductivity | High IEC | Ideal for Electrode Ink Formulation | Lab-Grade

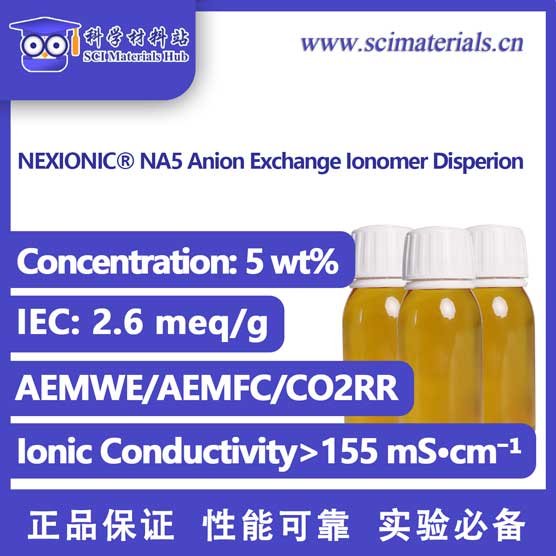

NEXIONIC® NA is a research-grade anion exchange ionomer solution specifically developed for AEM water electrolysis (AEMWE) and anion exchange membrane fuel cells (AEMFC). It is based on polyarylene ketone polymers and formulated in a high-performance solvent system consisting of methanol and dimethyl sulfoxide (DMSO). The solution is maintained at a stable 5 wt% concentration, offering excellent dispersion and chemical stability.
⚡ Ultra-high Ionic Conductivity: Up to 155 mS·cm⁻¹ at 80 °C, significantly enhancing reaction kinetics
💧 Strong Ion Exchange Capacity: High IEC of 2.6 meq·g⁻¹, improving ionic transport across catalyst interfaces
🧪 Excellent Solution Properties: Transparent yellowish solution, no suspended solids or impurities, clog-free in spray applications
🧷 Easy Ink Formulation: Easily dispersible with catalyst powders, carbon materials, and dispersing agents; compatible with ultrasonic spray coating, blade coating, and more
🛡️ Stable Storage: Room temperature sealed storage; no special transport requirements; suitable for long-term lab use
✅ Electrode preparation for AEM water electrolysis (AEMWE)
✅ Catalyst layer coating for AEM fuel cells (AEMFC)
✅ Optimization of ionomer–catalyst ink formulation systems
| Property | Specification |
|---|---|
| Ionomer Type | Polyarylene-ketone-based anion ionomer |
| Concentration | 5 wt% |
| IEC | 2.6 meq·g⁻¹ |
| Ionic Conductivity (80 °C) | 155 mS·cm⁻¹ |
| Appearance | Transparent yellowish liquid, free of visible particles |
| Solvent System | Methanol / DMSO (customizable) |
| Packaging Options | 10 mL / 50 mL / 100 mL / customized volumes |
Store in a cool, dry, and dark place, tightly sealed
Avoid heat, moisture, and intense vibration during storage or shipping
Once opened, use promptly or transfer to cold storage at 4–10 °C to maintain performance
Catalyst Pre-dispersion
Disperse the catalyst powder in deionized water, and stir or sonicate (preferably using an ultrasonic bath) to break aggregates.
Solvent Adjustment
Gradually add isopropanol or methanol to adjust the polarity and evaporation behavior of the ink. Suggested water-to-alcohol ratio: 3:1 to 1:1, depending on your application.
Ultrasonic Mixing
Sonicate the mixture for 5–20 minutes to ensure uniform dispersion of catalyst particles.
Ionomer Addition
Add NEXIONIC® NA ionomer solution (typically 5–15 wt% relative to catalyst mass) and perform a second ultrasonic dispersion. A probe sonicator may be used for better homogenization.
Strictly follow the solvent addition sequence: Always disperse the catalyst in water before adding alcohol.
Do not add the ionomer directly into a high-concentration alcohol solution, as this may cause ionomer aggregation or precipitation, compromising performance.
Best practice: Add the ionomer after all other components have been mixed, then immediately sonicate for uniform distribution.
Perform spray coating in a well-ventilated area or fume hood
Avoid inhalation of isopropanol, methanol, or DMSO vapors
Seal ink containers promptly after use to prevent solvent evaporation or degradation
Optionally filter the ink using a 0.45 μm filter before spraying to prevent nozzle clogging
📧 Email: contact@scimaterials.cn
📞 Tel: +86 153-7569-8751
🔗 Click to place quick orders via our eBay / Amazon stores.
🌐 We ship worldwide via DHL, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
Product Specifications & Price List (USD)
| Volume | Packaging Type | Price (USD) |
|---|---|---|
| 5 mL | Clear or amber glass vial | $50.00 |
| 10 mL | Clear or amber glass vial | $80.00 |
| 25 mL | Clear or amber glass vial | $150.00 |
| 50 mL | Clear or amber glass vial | $280.00 |
| 100 mL | Fluorinated bottle (inert-safe) | $540.00 |
