High-Performance Gas Diffusion Layer (GDL)｜Surface & Bulk PTFE Hydrophobic Reinforcement

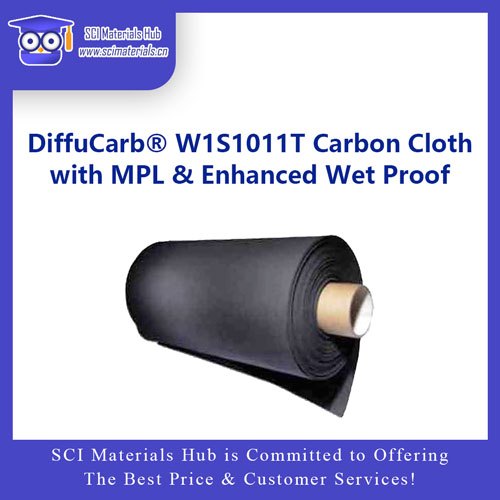

DiffuCarb® W1S1011T is a hydrophobic-enhanced version of the original W1S1011 carbon cloth with a microporous layer (MPL).
By applying surface (single-side or double-side) or bulk PTFE hydrophobic treatment, the carbon cloth exhibits significantly improved water repellency and drainage performance.
The PTFE used is DuPont™ original-grade, ensuring high chemical stability, thermal endurance, and long service life.
This material is particularly suitable for fuel cells, water electrolysis systems, metal–air batteries, and CO₂ electroreduction (CO₂RR) applications that require precise liquid-water management.
| Layer | Structure | Functional Role |
|---|---|---|
| Carbon Cloth Substrate | PAN-based woven carbon fiber cloth | Provides electronic conductivity, mechanical support, and flexibility |
| Microporous Layer (MPL) | Conductive carbon black + PTFE binder | Optimizes gas diffusion paths, prevents catalyst layer flooding |
| Hydrophobic Enhancement Layer | Surface or bulk PTFE coating | Increases contact angle and drainage ability, mitigates blockage and water accumulation |
| Type | Description | Features & Suitable Scenarios |
|---|---|---|
| Single-Sided (Surface-Type) | PTFE mainly adheres to the top surface of the MPL or carbon cloth, with minimal penetration; surface appears white | Ideal for improving catalyst-layer drainage or flow-field-side water removal |
| Single-Sided (Subsurface-Type) | PTFE penetrates slightly beneath the MPL or carbon cloth surface; retains near-original color; light whitish tone at high loading | Maintains surface conductivity while improving internal water management |
| Double-Sided Hydrophobic Enhancement | PTFE adheres to both MPL and carbon-cloth sides; both surfaces appear white | Suitable for high-humidity or high-water-pressure conditions such as PEMWE or humidified PEMFCs |
| Bulk Hydrophobic Enhancement | PTFE penetrates through the entire thickness forming a fully hydrophobic structure | Designed for deep water-resistant applications such as flow batteries, AEM electrolysis, and CO₂RR systems |
📌 All types can be customized with 1–50 wt% PTFE content, or alternatively treated with FEP for flexible or hot-press lamination needs.
🌊 Contact angle >120° — prevents liquid film formation and gas-channel blockage
💧 Enhanced water drainage — mitigates flooding and liquid accumulation, improving gas diffusion at the reaction interface
🔋 Improved durability — maintains electrical and mechanical integrity under humid or wet conditions
🧱 Excellent structural compatibility — suitable for Nafion overcoating, amphiphilic catalyst layers, and FEP lamination designs
⚡ Customizable water management strategy — tunable hydrophobic gradient and gas–liquid equilibrium per system design
| Hydrophobic Treatment Type | PTFE Content Range (wt%) |
|---|---|
| Single-Sided (MPL Surface/Subsurface) | 1%, 5%, 10%, 20%, 30%, 40%, 50% |
| Single-Sided (Carbon Cloth Surface/Subsurface) | 1%, 5%, 10%, 20%, 30%, 40%, 50% |
| Double-Sided (MPL + Carbon Cloth) | 0.5%+0.5%, 5%+5%, 10%+10%, 15%+15%, 20%+20% |
| Bulk Hydrophobic Structure | 2%, 5%, 10%, 15%, 20%, 30%, 40% |
📌 Available in rolls, sheets, or custom-cut pieces; optional hole punching, slotting, lamination, and surface morphology tailoring.
| Application | Functional Benefits |
|---|---|
| PEM Fuel Cell Cathode | Prevents cathode flooding; improves drainage and long-term stability |
| PEM Water Electrolyzer (PEMWE) Cathode | Reduces back diffusion of liquid water; enhances hydrogen evolution efficiency |
| AEM Electrolysis Systems | Balances gas–liquid diffusion; improves electrode stability |
| CO₂ Electroreduction (CO₂RR) Electrodes | Maintains gas–liquid interface gradient; enhances CO₂ transport and utilization |
| Metal–Air & Microbial Fuel Cells | Prevents electrolyte infiltration; extends cycle life |
| Direct Alcohol Fuel Cells | Resists alcohol/water penetration; maintains efficient power output |
Minimum order: from 1 piece (sample available)
Standard sizes: 5×5 cm, 10×10 cm, 20×20 cm (custom sizes available)
Lead time: stock items 1–3 days; custom orders 3–5 days
Invoice: research-use VAT invoice available
Shipping: global delivery via SF Express, DHL, FedEx, or EMS
Hydrophobic carbon cloths of this class have been successfully applied in numerous high-impact publications, including:
Chemical Engineering Journal — Biofuel cell for glycerol oxidation using Galactose Oxidase/Bilirubin Oxidase cascade
Journal of Energy Chemistry — V₂O₅ nanospheres encapsulated in N-doped carbon nanofibers for aqueous Zn-ion batteries
Nature Communications — Chloride shuttle mechanism in rechargeable Zn–Cu batteries
Fuel — Laser-written MoNi₄@graphene self-supported electrodes for urea oxidation
Polymer — One-step synthesis of hydroxypropyl methylcellulose gel polymer electrolytes for supercapacitors
Journal of Water Process Engineering — EDLC-based enhancement for ammonia recovery from digested liquids
ACS Nano — Graphdiyne oxide/Au nanocomposites for non-enzymatic glucose sensing
Journal of Materials Research and Technology — TC4 anodic film/carbon fiber composites in marine friction–corrosion environments
Advanced Functional Materials — Ni/Fe–O–N–C hierarchical sites for multi-metal ion sensing
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Reinforcement Type | PTFE Reinforcement Ratio | 5×5 cm | 10×10 cm | 20×20 cm | Remarks |
|---|---|---|---|---|---|
| Single Side (MPL Surface) | 1% | $8 | $24 | $72 | White surface; enhances catalyst layer hydrophobicity |
| 5% | $9 | $27 | $84 | ||
| 10% | $11 | $33 | $102 | ||
| 20% | $15 | $45 | $138 | ||
| 30% | $22 | $66 | $198 | ||
| 40% | $30 | $90 | $270 | ||
| 50% | $40 | $120 | $360 | ||
| Single Side (MPL Subsurface) | 1% | $8 | $24 | $72 | PTFE penetrates shallow layer; retains surface conductivity |
| 5% | $9 | $27 | $84 | ||
| 10% | $11 | $33 | $102 | ||
| 20% | $15 | $45 | $138 | ||
| 30% | $22 | $66 | $198 | ||
| 40% | $30 | $90 | $270 | ||
| 50% | $40 | $120 | $360 | ||
| Single Side (Carbon Paper Surface) | 1% | $8 | $24 | $72 | White surface; enhances flow-field drainage |
| 5% | $9 | $27 | $84 | ||
| 10% | $11 | $33 | $102 | ||
| 20% | $15 | $45 | $138 | ||
| 30% | $22 | $66 | $198 | ||
| 40% | $30 | $90 | $270 | ||
| 50% | $40 | $120 | $360 | ||
| Single Side (Carbon Paper Subsurface) | 1% | $8 | $24 | $72 | Shallow infiltration; ideal for two-phase flow control |
| 5% | $9 | $27 | $84 | ||
| 10% | $11 | $33 | $102 | ||
| 20% | $15 | $45 | $138 | ||
| 30% | $22 | $66 | $198 | ||
| 40% | $30 | $90 | $270 | ||
| 50% | $40 | $120 | $360 | ||
| Double-Sided Reinforcement (Symmetrical) | 1% (0.5% + 0.5%) | $8 | $24 | $72 | Both sides white; universal dual-face structure |
| 5% (2.5% + 2.5%) | $9 | $27 | $84 | ||
| 10% (5% + 5%) | $11 | $33 | $102 | ||
| 20% (10% + 10%) | $15 | $45 | $138 | ||
| 30% (15% + 15%) | $22 | $66 | $198 | ||
| 40% (20% + 20%) | $30 | $90 | $270 | ||
| 50% (25% + 25%) | $40 | $120 | $360 | ||
| Bulk Reinforcement (Through-Thickness) | 1% | $8 | $24 | $72 | PTFE fully penetrates; deep hydrophobic structure |
| 5% | $9 | $27 | $84 | ||
| 10% | $11 | $33 | $102 | ||
| 20% | $15 | $45 | $138 | ||
| 30% | $22 | $66 | $198 | ||
| 40% | $30 | $90 | $270 | ||
| 50% | $40 | $120 | $360 |
Dimensions: 5×5 cm, 10×10 cm, 20×20 cm standard; custom cutting and roll sizes available.
Double-Sided Ratio: e.g. “20% (10% + 10%)” = 10% PTFE each side.
Bulk Reinforcement: PTFE penetrates through the entire thickness, forming a fully hydrophobic structure ideal for flow batteries, PEMWE, and CO₂RR.
MOQ: Single sheet available.
Lead Time: In stock 1–3 days; customized 3–5 days.
| Type | Structural Features | Typical Applications |
|---|---|---|
| Single Side (MPL Surface) | PTFE mainly on MPL surface, white appearance, minimal internal infiltration | Enhances catalyst-layer drainage; reduces flooding |
| Single Side (MPL Subsurface | PTFE penetrates shallow MPL layer; retains conductivity | Improves internal water removal while maintaining surface contact |
| Single Side (Carbon Paper Surface) | PTFE covers outer carbon paper surface, white appearance | Improves flow-field drainage; anti-flooding performance |
| Single Side (Carbon Paper Subsurface) | PTFE infiltrates sub-surface region of carbon paper | Balances gas–liquid management on flow-field side |
| Double-Sided (Symmetrical) | Both MPL and carbon sides enhanced, white on both sides | Ideal for humid or high-pressure fuel cell operation |
| Bulk Reinforcement (Through-Thickness) | PTFE throughout full thickness; hydrophobic skeleton | Suitable for flow batteries, electrolysis, and CO₂RR |
