— Ultra-High Capacity × High Efficiency × Long Cycle Life. Tailored for High-Power Lithium-Ion Batteries
🔬 Product Overview
VoltXpert® SC1800A is an amorphous silicon-carbon composite anode material, purpose-designed for high-rate discharge, fast charging, and extended cycle life scenarios. With an outstanding initial reversible capacity of ≥1800 mAh/g and initial coulombic efficiency of ≥90.5%, it is manufactured with tightly controlled particle sizes and high-purity processes. It is highly compatible with consumer electronics, power tools, and high-power lithium battery systems.
🌟 Key Advantages
| Advantage | Performance | Application Benefit |
|---|---|---|
| 🔋 High Capacity | Reversible Capacity ≥ 1800 mAh/g | Boosts energy density and runtime |
| ⚡ High Efficiency | Initial Coulombic Efficiency ≥ 90.5% | Reduces first-cycle losses and improves yield |
| 🔄 Long Cycle Life | Stable amorphous structure, low side reactions | Ensures durability and reduces degradation |
| 🔌 Broad Compatibility | Adaptable to cylindrical, pouch, and prismatic cells | Fits multiple battery designs |
| 🧪 Ultra-Low Impurities | Fe ≤ 100 ppm, magnetic impurities ≤ 6 ppm | Improves safety and electrochemical stability |
| 🛡 RoHS Compliant | Conforms to the latest RoHS standard | Globally export-ready and eco-friendly |
📊 Performance Parameters
▶️ Electrochemical Performance (Key Features ▽)
| Item | Internal Standard | Test Method |
|---|---|---|
| ▽ Initial Reversible Capacity | ≥1800 mAh/g | LANHE Battery Test System CT3002A |
| ▽ Initial Coulombic Efficiency | ≥90.5% | LANHE Battery Test System CT3002A |
▶️ Chemical Purity & Environmental Compliance (Critical Features ▼)
| Item | Internal Standard | Test Method |
|---|---|---|
| Moisture Content | ≤0.5% | DHS-16A Electronic Moisture Tester |
| Fe Content | ≤100 ppm | ICP (PERKINELMER AVIO500) |
| Co/Ni/Cu/Zn (each) | ≤20 ppm | ICP (PERKINELMER AVIO500) |
| ▼ Total Magnetic Impurities (Fe+Co+Ni+...) | ≤6 ppm | ICP (PERKINELMER AVIO500) |
| ▼ RoHS Compliance | Conforms to Standards | Third-Party Certification Report |
▶️ Physical Properties
| Item | Internal Standard | Test Method |
|---|---|---|
| Dv10 | 4.5 ± 1.0 μm | Malvern Laser Particle Analyzer MS3000E |
| Dv50 | 8.0 ± 1.0 μm | Malvern Laser Particle Analyzer MS3000E |
| Dv90 | 13.0 ± 2.0 μm | Malvern Laser Particle Analyzer MS3000E |
| Dv100 | ≤30 μm | Malvern Laser Particle Analyzer MS3000E |
| Tap Density | 0.9 ± 0.2 g/cm³ | Tap Density Tester BT-301 |
| Specific Surface Area | <6 m²/g | BET Analyzer JW-DX |
| Oversize Particles/Impurities | No ≥40 μm particles or foreign matter | SEM (HITACHI SU1000) |
| Crystal Structure | No impurity peaks (XRD) | Compared to standard XRD patterns |
🔋 Coin Cell Fabrication & Testing Guide (CR2032 Type)
▶️ Recommended Slurry Composition
VoltXpert® SC1800A : Super P : Binder = 8 : 1 : 1
▶️ Slurry Preparation Procedure
Dissolve 339 g binder in 1161 g ultrapure water, stir at 600 rpm for 300 min.
Weigh 1.728 g SC1800A and 0.216 g Super P, lightly grind for 10 min.
Add 6.371 g prepared binder, seal the container.
Stir with magnetic agitator for 360 min until homogeneous.
Coat slurry on copper foil and dry in vacuum at 80 °C for 12 hours.
▶️ Coin Cell Test Procedure
Rest 6 h → Discharge @ 0.1 C to 0.005 V
Rest 5 min → Discharge @ 0.02 C to 0.005 V
Rest 5 min → Discharge @ 0.01 C to 0.005 V
Rest 5 min → Charge @ 0.1 C to 1.5 V
Rest 5 min → Repeat from step 2 for 3 cycles
📦 Packaging & Storage
Packaging: Vacuum-sealed moisture-proof bags + rigid outer cartons; customized packing available
Shipping: Handle with care; avoid package breakage. Do not use damaged product
Storage Conditions: Store in a dry, ventilated place. Reseal promptly after opening
Shelf Life: 12 months from date of production
⚠️ Handling Precaution
SC1800A is chemically active. Once opened, reseal promptly to avoid prolonged air exposure, which may affect electrochemical performance.
📞 Sales & Technical Support
For sample requests, technical consultation, or volume purchases, feel free to contact us:
☎️ Hotline: +86-15605532352
📧 Email: contact@scimaterials.cn

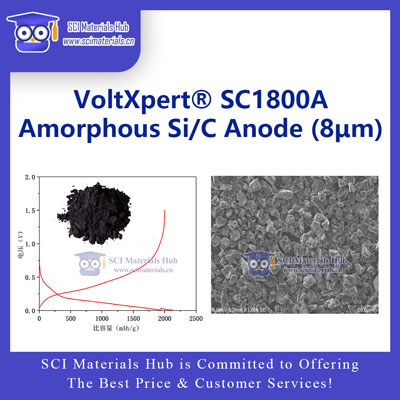

🚀 VoltXpert® SC1800A Amorphous Si/C Anode (8 μm)
— The Ideal Anode Solution for Next-Generation High-Efficiency Batteries
📧 Email: contact@scimaterials.cn
📞 Tel: +86 153-7569-8751
🔗 Click to place quick orders via our eBay / Amazon stores.
🌐 We ship worldwide via DHL, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Product Name | 5g | 10g | 20g | 50g | 100g | 200g | 500g | 1kg |
|---|---|---|---|---|---|---|---|---|
| VoltXpert® SC1800A (8 μm) | $24 | $40 | $60 | $100 | $140 | $200 | $300 | $360 |
🧾 Notes: Invoices available. Bulk orders supported.
