Carbon-Coated Silicon Oxide Anode Material (6 μm)
High Capacity · High Rate · High Compatibility
A High-Performance Anode Solution for Fast-Charging and High-Power Lithium-Ion Batteries

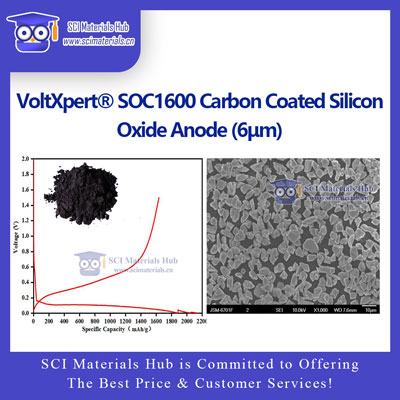

VoltXpert® SOC1600 is a high-performance carbon-coated silicon oxide (SiOx-C) anode material designed for high-rate lithium-ion battery applications. With optimized particle size distribution and high-purity synthesis, it delivers a first-cycle reversible capacity ≥1600 mAh/g and excellent rate performance, making it ideal for fast-charging consumer electronics, high-power power tools, and EV batteries.
| Category | Performance Highlights | Application Benefits |
|---|---|---|
| 🔋 High Capacity | ≥1600 mAh/g reversible capacity | Enables higher energy density |
| 🚀 Excellent Rate | Outstanding performance in fast charge/discharge | Supports high-power discharge in demanding devices |
| 🔌 Broad Compatibility | Works with cylindrical & pouch cell systems | Simplifies integration into existing battery designs |
| 🔰 Process Stability | Narrow PSD + high-purity input | Ensures production consistency and scalability |
| Parameter | Value | Benefit | Test Method / Instrument |
|---|---|---|---|
| Reversible Capacity | ≥1600 mAh/g | High energy output per unit mass | CR2032 coin cell / Neware CT3002A |
| Initial Coulombic Efficiency | ≥75% | Minimizes initial energy loss | Same as above |
| Rate Performance | Excellent | Reliable under fast-charging conditions | Charge/discharge under 0.1C–2C rates |
| Parameter | Specification | Functional Advantage | Test Method / Equipment |
|---|---|---|---|
| Carbon Content | 3 ± 1% | Improves electronic conductivity | Infrared Carbon-Sulfur Analyzer (HCS-140) |
| Moisture Content | ≤0.5% | Minimizes side reactions | Moisture Analyzer (DHS-16A) |
| Fe Impurities | ≤100 ppm | Reduces transition metal side effects | ICP-OES (Avio 500) |
| Co / Ni / Cu / Zn | ≤20 ppm (each) | Enhances cycling stability | Same ICP method |
| Total Magnetic Content | ≤6 ppm (Fe+Co+Ni...) | Lowers internal short-circuit risk | ICP-OES |
| Environmental Safety | RoHS Compliant | Meets global environmental standards | Verified by 3rd-party report |
| Parameter | Value | Manufacturing Relevance | Test Method / Equipment |
|---|---|---|---|
| D10 Particle Size | 3.5 ± 1.0 μm | Enables uniform slurry coating | Malvern Laser Particle Analyzer (MS3000E) |
| D50 Particle Size | 6.0 ± 1.0 μm | Enhances dispersion & consistency | Same as above |
| D90 Particle Size | 10.0 ± 1.5 μm | Improves electrode structural stability | Same as above |
| D100 (Max Particle) | ≤35 μm | Prevents agglomeration-related defects | Same as above |
| Tap Density | 1.20 ± 0.15 g/cm³ | Increases volumetric energy density | Tap Density Meter (BT-301) |
| Specific Surface Area | 1.5 ± 1.0 m²/g | Controls reactivity, prolongs cycle life | BET Analyzer (JW-DX) |
| Oversized Particles | No ≥40 μm foreign bodies | Reduces short-circuit & coating risk | SEM (HITACHI SU1000) |
| Crystal Purity | No secondary peaks | Indicates structural integrity | XRD (EQUINOX 3000) |
| Application Scenario | Material Advantages |
|---|---|
| 📱 Fast-charging Consumer Batteries | High capacity and rate capability for quick charging |
| 🚗 High-power Tool / EV Batteries | Excellent power output and cycle stability |
Packaging: Vacuum-sealed in aluminum-plastic pouches, boxed for shipment, customizable by weight.
Transportation: Avoid collisions, exposure to moisture or physical damage. Do not use if packaging is broken.
Storage: Store in cool, dry, sealed conditions. Use promptly after opening and re-seal when possible.
Shelf Life: 12 months from production date (unopened, sealed condition).
| Item | Recommendation |
|---|---|
| Suggested Ratio | HC-1600 : Super P : Binder = 8 : 1 : 1 |
| Slurry Preparation | Ensure homogeneous dispersion, vacuum-dry at 80°C for 12 h |
| Electrochemical Test | Pre-cycle 3 times under 0.1C / 0.02C / 0.01C rates for accurate activation and measurement |
For sample requests, customized data, or volume orders, feel free to reach out:
☎️ Phone: +86-15605532352
📧 Email: contact@scimaterials.cn
📧 Email: contact@scimaterials.cn
📞 Tel: +86 153-7569-8751
🔗 Click to place quick orders via our eBay / Amazon stores.
🌐 We ship worldwide via DHL, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Product Code | 5g | 10g | 20g | 50g | 100g | 200g | 500g | 1kg |
|---|---|---|---|---|---|---|---|---|
| 22010040 | $30 | $50 | $76 | $116 | $196 | $300 | $480 | $700 |
🧾 Notes: Invoices available. Bulk orders supported.
