Battery-Grade Lithium Manganese Oxide (LiMn₂O₄) Powder · 14 µm D₅₀ · High-Performance Cathode Material
🔋 For Communication Devices · Power Tools · RC Drones · High-Rate Lithium-ion Batteries
High tap density: ≥1.9 g/cm³
Outstanding high-rate performance: Delivers ≥70% capacity retention even at 10C discharge (tested up to 79%)
Stable cycle life: Capacity fade ≤6% after 100 cycles at 25°C
Ultra-low impurities: Fe, Cu, Zn kept at minimal levels to reduce internal resistance and ensure consistency
Versatile for high-performance lithium-ion cells, including e-cigarettes, power tools, drones, backup power, and other medium/high-rate applications
| Parameter | Typical Value | Description |
|---|---|---|
| Chemical Name | LiMn₂O₄ | Spinel-type lithium manganese oxide |
| Model | LMO120 | |
| Composition | Li: 4.2wt%, Mn: 58.8wt% | |
| pH | 7-10 | |
| D₅₀ Particle Size | 14.5 µm | Adjustable range: ±2 µm |
| Tap Density | 2.0 g/cm³ | Meets ≥1.9 g/cm³ spec |
| Specific Surface Area | 0.69 m²/g | Measured via BET method |

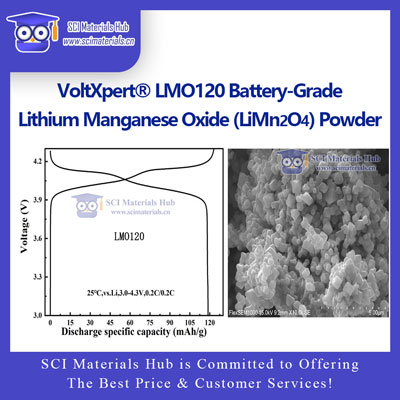

| Initial Discharge Capacity | 120 mAh/g | Button cell, 0.2C, 3.0–4.3 V @ 25°C |
| Initial Efficiency | ≥94% | High coulombic efficiency |
| Capacity Retention (10C) | ≥70% (tested 79%) | Excellent high-rate performance |
| High Temp Cycle Stability | ≤9% capacity fade | 100 cycles @ 45°C, 1C/1C cycling |
Fe ≤ 60 ppm Cu: Not detected Zn ≤ 30 ppm
Magnetic Substances ≤ 2000 ppb Sulfur (S) ≤ 4800 ppm
Produced from high-purity EMD (electrolytic manganese dioxide) via an advanced solid-state process for low resistance and high material consistency.
25 kg vacuum-sealed aluminum-plastic bag (±0.02 kg)
Outer packaging: reinforced carton or plastic drum
Custom bulk packaging available: 500 kg / 1 ton bags upon request
Store in a cool, dry, well-ventilated environment
Keep in vacuum-sealed packaging until use
Shelf life: 12 months under recommended conditions
Reseal any unused material promptly to avoid moisture absorption
🔋 Communication Device Batteries (e.g. walkie-talkies, Bluetooth gadgets)
🔧 Power Tool Packs (mid- to high-discharge rate environments)
✈️ RC Drone & UAV Packs (high current, rapid discharge)
🚬 E-Cigarette Batteries (sensitive to rate and performance consistency)
MOQ: 10g (Sample support available)
Lead Time: In-stock, ships same day upon order confirmation
📧 Email: contact@scimaterials.cn
📞 Tel: +86 153-7569-8751
🔗 Click to place quick orders via our eBay / Amazon stores.
🌐 We ship worldwide via DHL, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
VoltXpert® LMO120 Battery-Grade Lithium Manganese Oxide (LiMn2O4) Powder
| Quantity | Price (USD) | Application Recommendation |
|---|---|---|
| 100g | $30.00 | Recommended size for academic research |
| 200g | $50.00 | Semi-pilot-scale sample testing |
| 500g | $68.00 | High-volume screening or pilot trials |
| 1kg | $130.00 | Industrial validation, cell prototyping |
| 2kg | $220.00 | Bulk usage for labs and R&D departments |
| 5kg | $500.00 | Pilot production and scale-up sourcing |
| 10kg | $900.00 | Volume procurement with discounted pricing |
| 25kg | $1800.00 | Volume procurement with discounted pricing |
