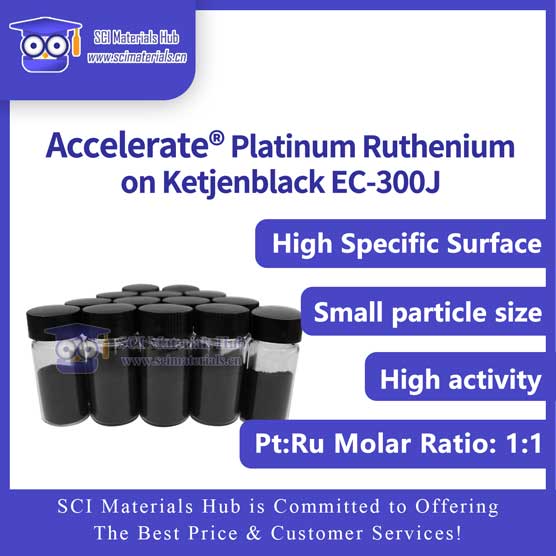

Accelerate® PtRu/C catalyst is based on Ketjenblack EC-300J, a high–surface area conductive carbon black, with platinum (Pt) and ruthenium (Ru) uniformly dispersed on the support.
The synergistic effect of Pt and Ru significantly enhances resistance to carbon monoxide (CO) poisoning, making this catalyst highly effective for direct methanol fuel cells (DMFCs), proton exchange membrane fuel cells (PEMFCs), and other electrochemical systems involving small-molecule oxidation reactions.
| Parameter | Typical Value |
|---|---|
| Composition | 40 wt.% Pt, 20 wt.% Ru, 40 wt.% Ketjenblack EC-300J |
| Pt:Ru Molar Ratio | 1:1 |
| Average Particle Size (nm) | ~4.0 |
| Electrochemical Surface Area (ECSA, m²/g) | ~85 |
| BET Surface Area (m²/g) | ~100 |
| Catalyst Type | PtRu/C |
| Support | Ketjenblack EC-300J |
| Dispersion | Excellent, with uniform particle distribution |
| Electrode Compatibility | Suitable for GDLs, metal substrates, and MEA fabrication |
Dispersion
Weigh the required amount of PtRu/C catalyst and add it to a mixed solvent of isopropanol/deionized water (3:1 v/v).
Ultrasonicate for 30–60 minutes to ensure homogeneous dispersion.
Add 5 wt.% Nafion or AEM ionomer as a binder to adjust ionic conductivity.
Electrode Coating
Spray the well-dispersed ink evenly onto a gas diffusion layer (GDL) or metal substrate.
Dry slowly at 60–80 °C to prevent particle agglomeration.
Typical loading: 0.5–2.0 mg/cm², adjustable depending on application.
Direct Methanol Fuel Cells (DMFC): CO-tolerant anode catalyst.
PEM Fuel Cells (PEMFC): Effective for hydrogen oxidation in reformate gas.
Electrochemical Energy Systems: Efficient catalyst for methanol and other small-molecule oxidation.
Scientific Research: Benchmark catalyst for studying Pt–Ru synergistic effects.
Q1: Why is Ru incorporated into Pt catalysts?
A: Ru modifies the electronic structure of Pt and enhances CO tolerance, resulting in higher catalytic activity for methanol and small-molecule oxidation.
Q2: How should the catalyst be stored?
A: Store in a dry, sealed environment, away from prolonged moisture or air exposure to preserve performance.
Q3: What are the typical loading levels?
A: Commonly 0.5–2.0 mg/cm², depending on the electrochemical system and performance requirements.
Q4: Can other supports be used instead of Ketjenblack EC-300J?
A: Yes. PtRu can also be supported on carbon nanotubes, graphene, or conductive oxides for customized research and application needs.
📧 Email: contact@scimaterials.cn
📞 Tel: +86 153-7569-8751
🔗 Click to place quick orders via our eBay / Amazon stores.
🌐 We ship worldwide via DHL, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
📑 Accelerate® Platinum Ruthenium on Ketjenblack EC-300J – Specifications & Price List (USD)
| Product Model | 0.5 g | 1 g | 2 g | 5 g | 10 g | Lead Time (days) |
|---|---|---|---|---|---|---|
| Accelerate® PR60C 60% PtRu on Ketjenblack EC-300J | $90 | $150 | $280 | $650 | $1200 | In stock |
Notes:
Prices are for reference only; bulk orders may be negotiated for discounts.
Customized specifications are available upon request.
Parameters: Moisture ≤ 1.0%, Impurities ≤ 500 ppm.
Lead times are indicative; actual delivery may vary depending on production schedule.
