Carbon nanotubes (CNTs) have long been regarded as one of the most promising nanomaterials of the 21st century. With their exceptional electrical conductivity, mechanical strength, and unique nanoscale architecture, CNTs are now widely applied in energy storage, electronics, catalysis, and advanced composites.
Among the many CNT structures, array-grown multi-walled CNTs (MWCNTs) stand out due to their ordered alignment, controllable morphology, and superior surface activity.
Today, we introduce SciMater™ MN2 High-Purity Arrayed Multi-Walled Carbon Nanotubes—a premium material engineered for cutting-edge research and high-performance applications.

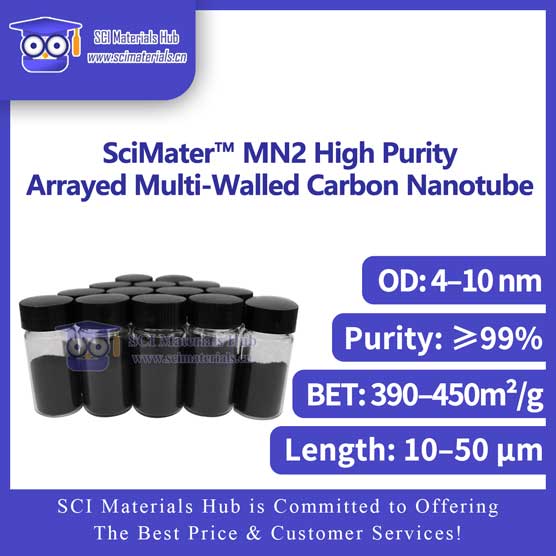

SciMater™ MN2 High-Purity Arrayed MWCNTs
Purity: ≥99%
Outer Diameter (OD): 4–10 nm
Length: 10–50 μm
BET Surface Area: 390–450 m²/g
Structure: Vertically aligned, multi-walled, uniform morphology
Produced using an optimized CVD process, MN2 CNTs form clean, vertically aligned “forest-like” arrays with excellent structural integrity and minimal metallic contamination. Their uniform geometry and high surface area make them a powerful tool for next-generation energy and catalytic systems.
Unlike conventional CNT powders, the MN2 series grows into highly oriented arrays. This alignment provides:
Better mechanical stability
Improved electron transport pathways
Easier integration into layered or structured electrodes
With a BET surface area of 390–450 m²/g, MN2 offers abundant active sites, enabling superior performance in:
Electrocatalyst supports
Battery and supercapacitor electrodes
Adsorption and separation materials
A multi-step purification process ensures ≥99% purity, minimizing residual metal catalysts and amorphous carbon—critical for:
Catalysis studies
High-voltage battery systems
Microelectronics and precision devices
The narrow OD range (4–10 nm) and adjustable length (10–50 μm) bring consistency and tunability to nanoscale engineering, ensuring predictable performance across batches.
Arrayed CNTs create efficient conductive networks with fast ion/electron pathways. MN2 is ideal for:
Lithium-ion and sodium-ion batteries
Solid-state battery interfaces
Lithium–sulfur cathode modification
High-power supercapacitors
The aligned structure improves catalyst dispersion and durability. Common research topics include:
Oxygen evolution (OER) and hydrogen evolution (HER)
Oxygen reduction (ORR)
CO₂ reduction (CO₂RR)
Nitrogen reduction (NRR)
Even at extremely low loading, MN2 significantly boosts conductivity and mechanical strength in:
Conductive inks and coatings
Polymer and ceramic composites
EMI shielding materials
The ordered CNT forest architecture is ideal for:
MEMS devices
Vertical electron transport layers
Micro-structured absorbent layers
Acoustic and thermal management materials
| Property | Value |
|---|---|
| Purity | ≥ 99% |
| OD | 4–10 nm |
| Length | 10–50 μm |
| BET Surface Area | 390–450 m²/g |
| Morphology | Vertically aligned, multi-walled |
These consistent parameters give researchers and engineers clear, reliable performance windows for modeling, functionalization, and integration.
Each batch is carefully controlled for alignment, purity, and surface characteristics.
Designed for reproducibility—critical for publications, device development, and industrial prototyping.
Suitable for both laboratory studies and emerging technology validation.
As the demand for high-performance materials continues to grow in next-generation energy storage, microelectronics, and nanotechnology, aligned CNT arrays are becoming an essential building block.
SciMater™ MN2 High-Purity Arrayed Multi-Walled Carbon Nanotubes are engineered to deliver precision, purity, and performance—empowering researchers and product developers to push the boundaries of what’s possible.
Whether you're building advanced electrodes, fabricating micro-devices, or designing high-efficiency catalysts, MN2 offers a reliable and powerful platform.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
💎 SciMater™ MN2 High Purity Arrayed Multi-Walled Carbon Nanotube (99%, OD: 4~10nm, L: 10~50μm, BET: 390~450m2/g) · Specifications & Price List
| Model | Specification | 1 g | 10 g | 50 g | 100 g | 200 g | 500g | 1000 g | Lead Time |
|---|---|---|---|---|---|---|---|---|---|
| SciMater™ MN2 | 99%, OD: 4~10nm, L: 10~50μm, BET: 390~450m2/g | $20 | $70 | $250 | $400 | $700 | $1400 | $2000 | In Stock |
Notes:
Purity: ≥99 wt%
OD = Outer Diameter; L = Length
Lead time: In Stock (ready to ship)
Partial references citing our materials (from Google Scholar)
Carbon Dioxide Reduction
1. ACS Nano Strain Relaxation in Metal Alloy Catalysts Steers the Product Selectivity of Electrocatalytic CO2 Reduction
The bipolar membrane (Fumasep FBM) in this paper was purchased from SCI Materials Hub, which was used in rechargeable Zn-CO2 battery tests. The authors reported a strain relaxation strategy to determine lattice strains in bimetal MNi alloys (M = Pd, Ag, and Au) and realized an outstanding CO2-to-CO Faradaic efficiency of 96.6% with outstanding activity and durability toward a Zn-CO2 battery.
2. Front. Chem. Boosting Electrochemical Carbon Dioxide Reduction on Atomically Dispersed Nickel Catalyst
In this paper, Vulcan XC-72R was purchased from SCI Materials Hub. Vulcan XC 72R carbon is the most common catalyst support used in the anode and cathode electrodes of Polymer Electrolyte Membrane Fuel Cells (PEMFC), Direct Methanol Fuel Cells (DMFC), Alkaline Fuel Cells (AFC), Microbial Fuel Cells (MFC), Phosphoric Acid Fuel Cells (PAFC), and many more!
3. Adv. Mater. Partially Nitrided Ni Nanoclusters Achieve Energy-Efficient Electrocatalytic CO2 Reduction to CO at Ultralow Overpotential
An AEM membrane (Sustainion X37-50 Grade RT, purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.
4. Adv. Funct. Mater. Nanoconfined Molecular Catalysts in Integrated Gas Diffusion Electrodes for High-Current-Density CO2 Electroreduction
In this paper (Supporting Information), an anion exchanged membrane (Fumasep FAB-PK-130 obtained from SCI Materials Hub (www.scimaterials.cn)) was used to separate the catholyte and anolyte chambers.
SCI Materials Hub: we also recommend our Fumasep FAB-PK-75 for the use in a flow cell.
5. Appl. Catal. B Efficient utilization of nickel single atoms for CO2 electroreduction by constructing 3D interconnected nitrogen-doped carbon tube network
In this paper, the Nafion 117 membrane was obtained from SCI Materials Hub.
In this paper, Proton exchange membrane (Nafion 117), Nafion D520, and Toray 060 carbon paper were purchased from SCI Materials Hub.
7. National Science Review Confinement of ionomer for electrocatalytic CO2 reduction reaction via efficient mass transfer pathways
An anion exchange membrane (PiperION-A15-HCO3) was obtained from SCI Materials Hub.
8. Catalysis Communications Facilitating CO2 electroreduction to C2H4 through facile regulating {100} & {111} grain boundary of Cu2O
Carbon paper (TGPH060), membrane solution (Nafion D520), and ionic membrane (Nafion N117) were obtained from Wuhu Eryi Material Technology Co., Ltd (a company under SCI Materials Hub).
Batteries
1. J. Mater. Chem. A Blocking polysulfides with a Janus Fe3C/N-CNF@RGO electrode via physiochemical confinement and catalytic conversion for high-performance lithium–sulfur batteries
Graphene oxide (GO) in this paper was obtained from SCI Materials Hub. The authors introduced a Janus Fe3C/N-CNF@RGO electrode consisting of 1D Fe3C decorated N-doped carbon nanofibers (Fe3C/N-CNFs) side and 2D reduced graphene oxide (RGO) side as the free-standing carrier of Li2S6 catholyte to improve the overall electrochemical performance of Li-S batteries.
This paper used more than 10 kinds of materials from SCI Materials Hub and the authors gave detailed properity comparsion.
The commercial IEMs of Fumasep FAB-PK-130 and Nafion N117 were obtained from SCI Materials Hub.
Gas diffusion layers of GDL340 (CeTech) and SGL39BC (Sigracet) and Nafion dispersion (Nafion D520) were obtained from SCI Materials Hub.
Zn foil (100 mm thickness) and Zn powder were obtained from the SCI Materials Hub.
Commercial 20% Pt/C, 40% Pt/C and IrO2 catalysts were also obtained from SCI Materials Hub.
3. Journal of Energy Chemistry Vanadium oxide nanospheres encapsulated in N-doped carbon nanofibers with morphology and defect dual-engineering toward advanced aqueous zinc-ion batteries
In this paper, carbon cloth (W0S1011) was obtained from SCI Materials Hub. The flexible carbon cloth matrix guaranteed the stabilization of the electrode and improved the conductivity of the cathode.
4. Energy Storage Materials Defect-abundant commercializable 3D carbon papers for fabricating composite Li anode with high loading and long life
The 3D carbon paper (TGPH060 raw paper) were purchased from SCI Materials Hub.
5. Nanomaterials A Stable Rechargeable Aqueous Zn–Air Battery Enabled by Heterogeneous MoS2 Cathode Catalysts
Nafion D520 (5 wt%), and carbon paper (GDL340) were received from SCI-Materials-Hub.
Carbon cloth (W0S1011) and other electrochemical consumables required for air cathode were provided by SCI Materials Hub.
Oxygen Reduction Reaction
1. J. Chem. Eng. Superior Efficiency Hydrogen Peroxide Production in Acidic Media through Epoxy Group Adjacent to Co-O/C Active Centers on Carbon Black
In this paper, Vulcan XC 72 carbon black, ion membrane (Nafion N115, 127 μL), Nafion solution (D520, 5 wt%), and carbon paper (AvCarb GDS 2230 and Spectracarb 2050A-1050) were purchased from SCI Materials Hub.
2. Journal of Colloid and Interface Science Gaining insight into the impact of electronic property and interface electrostatic field on ORR kinetics in alloy engineering via theoretical prognostication and experimental validation
The 20 wt% Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) were purchased from SCI Materials Hub. This work places emphasis on the kinetics of the ORR concerning Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) catalysts, and integrates theoretical prognostication and experimental validation to illuminate the fundamental principles of alloy engineering.
Water Electrolysis
1. International Journal of Hydrogen Energy Gold as an efficient hydrogen isotope separation catalyst in proton exchange membrane water electrolysis
The cathodic catalysts of Pt/C (20 wt%, 2–3 nm) and Au/C (20 wt%, 4–5 nm) were purchased from SCI Materials Hub.
2. Small Science Silver Compositing Boosts Water Electrolysis Activity and Durability of RuO2 in a Proton-Exchange-Membrane Water Electrolyzer
Two fiber felts (0.35 mm thickness, SCI Materials Hub) were used as the porous transport layers at both the cathode and the anode.
3. Advanced Functional Materials Hierarchical Crystalline/Amorphous Heterostructure MoNi/NiMoOx for Electrochemical Hydrogen Evolution with Industry-Level Activity and Stability
Anion-exchange membrane (FAA-3-PK-130) was obtained from SCI Materials Hub website.
Fuel Cells
1. Polymer Sub-two-micron ultrathin proton exchange membrane with reinforced mechanical strength
Gas diffusion electrode (60% Pt/C, Carbon paper) was purchased from SCI Materials Hub.
Characterization
1. Chemical Engineering Journal Electrochemical reconstitution of Prussian blue analogue for coupling furfural electro-oxidation with photo-assisted hydrogen evolution reaction
An Au nanoparticle film was deposited on the total reflecting plane of a single reflection ATR crystal (SCI Materials Hub, Wuhu, China) via sputter coater.
|
