🌌 SciMater™ SN1: Breakthrough High-Purity Single-Walled Carbon Nanotubes for Advanced Materials

In the field of nanomaterials, single-walled carbon nanotubes (SWCNTs) are widely recognized as one of the most promising “super materials.” They combine extremely high surface area, outstanding electrical conductivity, exceptional mechanical strength, and tunable electronic properties, making them a core material for energy storage, electrocatalysis, flexible electronics, composites, and micro-/nano-devices.

Today, we are excited to introduce SciMater™ SN1 High-Purity Single-Walled Carbon Nanotubes—a flagship SWCNT product designed for cutting-edge research and high-performance engineering applications.

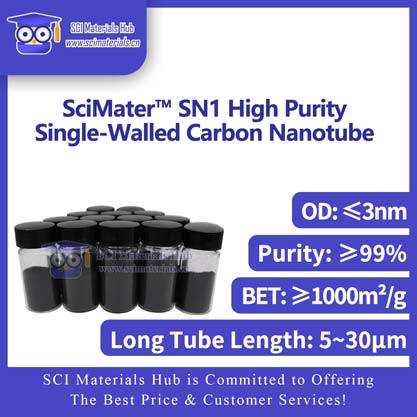

🔬 Product Overview: SciMater™ SN1 High-Purity SWCNTs

SciMater™ SN1 is produced using an advanced low-metal-residue CVD process and undergoes multi-step purification to achieve high purity and structural integrity.

Key Specifications:

• Purity: ≥99%

• Outer Diameter (OD): ≤3 nm

• Length (L): 5–30 μm

• BET Surface Area: ≥1000 m²/g

• Appearance: Black powder, free-flowing, no visible caking or impurities

With its ultra-high surface area and long-tube structure, SN1 is ideal for constructing efficient conductive networks, catalytic active interfaces, and lightweight composite reinforcements.

⭐ Key Advantages of SN1

1. Ultra-Small Diameter (≤3 nm) for Controllable Electronic Properties

The extremely small tube diameter introduces unique quantum confinement effects, enhancing electrical conductivity, semiconductor behavior, and interfacial interactions. Applications include:

• Flexible electronic devices

• Sensors

• Photovoltaic and thermoelectric materials

2. Ultra-High Surface Area (≥1000 m²/g)

SN1 offers 2–5 times the surface area of typical multi-walled CNTs, providing:

• More active sites

• Stronger adsorption capacity

• Enhanced electrocatalytic performance

• Higher lithium/sodium ion storage capacity

3. High Purity (≥99%) with Low Metal Residue

Through acid washing and thermal treatment, residual metals are kept far below industry averages:

Low metal content ensures higher stability in high-voltage batteries, electrocatalysis, and photocatalysis.

4. Long Tube Length (5–30 μm) for Efficient Conductive Networks

Long tubes form stable conductive pathways at lower loadings, suitable for:

• Lithium/sodium battery conductive additives

• Supercapacitors

• Conductive films and inks

• Thermal interface materials

📊 Typical Technical Specifications

All measurements are performed using internationally recognized instruments, ensuring quantifiable, traceable, and reproducible results.

🔧 Application Areas

1. High-Performance Battery Conductive Networks

Long tubes + small diameter + high surface area → faster electron transport, lower interfacial resistance, and higher rate performance.
Applications:

• Lithium-ion batteries, high-nickel cathodes, silicon-carbon anodes

• Sodium-ion batteries

• Solid-state battery interface engineering

2. Electrocatalyst Supports

High surface area provides excellent metal dispersion, ideal for:

• HER/OER/ORR

• CO₂ reduction (CO₂RR)

• Nitrogen reduction (NRR)

• Single-atom catalyst systems

3. Conductive Films & Flexible Electronics

The flexibility and continuous conductive network of SWCNTs make them ideal for:

• Heating films

• Transparent conductive films

• EMI shielding films

4. High-End Composite Reinforcement

Small diameter + long tube length significantly improves:

• Strength

• Toughness

• Thermal conductivity

• Electrical conductivity

Applications: Aerospace, automotive, thermal management, and structural materials.

🏭 Why Choose SciMater™ SN1?

• Research-grade purity and structural consistency: Suitable for publications and high-end device development

• Stable batch production and scalable supply: Available from gram to pilot scale

• Controllable structure and transparent parameters: All key specifications are supported with real measurement reports

✨ Conclusion: A Core Nanomaterial for the Future

As fields like energy storage, nanoelectronics, catalysis, and composite materials continue to evolve, the demand for high-performance SWCNTs grows.

SciMater™ SN1 High-Purity Single-Walled Carbon Nanotubes combine ultra-small diameter, ultra-high surface area, low metal residue, and excellent structural stability, making them the ideal choice for researchers and industry.

SN1 is more than just a material—it’s a platform that will lay the foundation for advanced material technologies over the next decade.

🌍 International Orders & Shipping

📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751

🔗 Place quick orders on our eBay / Amazon / Alibaba stores.

🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.

💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay

💎 SciMater™ SN1 High Purity Single-Walled Carbon Nanotube · Specifications & Price List

Notes:

• Purity: ≥99 wt%

• OD = Outer Diameter; L = Length

• Lead time: In Stock (ready to ship)
