High Power · High Efficiency · Industrial-Grade Green Hydrogen Production
As the global push toward carbon neutrality accelerates, industries are rapidly shifting from fossil fuels to clean, sustainable hydrogen energy. For green hydrogen to scale, the world needs hydrogen production systems that are efficient, cost-effective, durable, and easy to deploy.

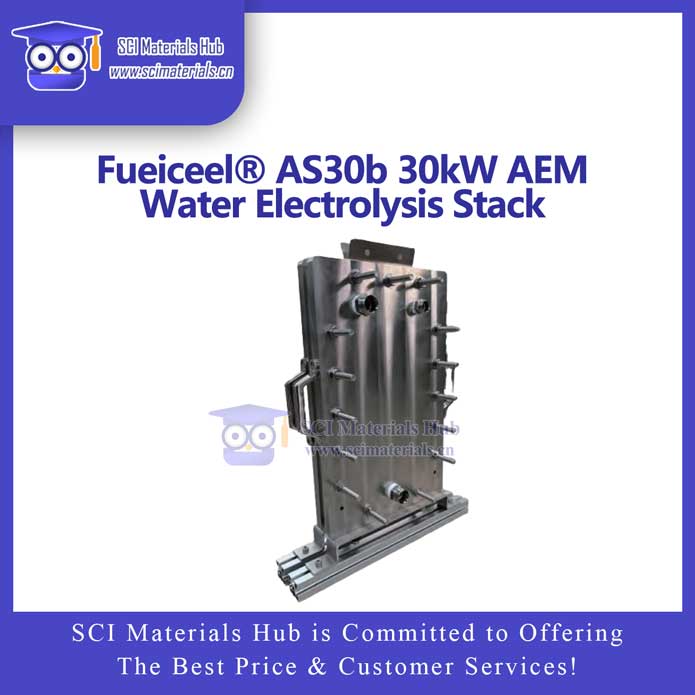

This is where the Fueiceel® AS30b 30 kW Anion Exchange Membrane (AEM) Water Electrolysis Stack stands out.
Designed for mid- to large-scale hydrogen production, the AS30b adopts advanced AEM technology to deliver high-efficiency electrolysis without the need for ultra-pure water or expensive iridium-based catalysts. Compared with traditional PEM systems, its cost and maintenance advantages are significant, making it ideal for commercial and industrial green hydrogen projects.
The AS30b continues the engineering philosophy of the Fueiceel® series — modular, long-life, low-maintenance — capable of operating as a standalone stack or scaling through parallel configuration to build MW-level hydrogen production systems.
| Feature | Description |
|---|---|
| High Hydrogen Output | 7,500 L/h (~15 kg/day) continuous hydrogen production |
| High Efficiency | 84% HHV (BOL — beginning of life) |
| Cost Advantage | No ultra-pure water or precious metal catalysts required |
| High Reliability | Corrosion-resistant structure + Dry-cathode design for long-term continuous operation |
| Modular Deployment | Supports single/multi-stack expansion for flexible capacity scaling |
| Easy Maintenance | Clear system architecture & long maintenance cycle |
The result: industrial-grade performance with significantly lower cost of ownership.
| Item | Value |
|---|---|
| Hydrogen production | 7,500 L/h (~15 kg/day) |
| Efficiency (HHV) | 84% (BOL) |
| Operating condition | 0.3 M KOH, ~60 °C |
| Power consumption | ~30 kW |
| Water consumption | 6,300 mL/h (@350 A) |
| Cell structure | Dry-cathode |
| Number of cells | 48 cells |
| Active area | 590 cm² (anode) / 521 cm² (cathode) |
| Electrodes | NiFe-LDH (anode) vs PtRu/C (cathode) |
| Membrane | Polymer electrolyte |
| Dimensions | 300 × 500 × 500 mm |
| Weight | 120 kg |
🔧 The stack supports parallel expansion, enabling system configurations from 30 kW → 60 kW → 150 kW → MW-level green hydrogen platforms.
🔹 Renewable energy + hydrogen storage (solar/wind integration)
🔹 Hydrogen fueling for heavy-duty trucks, marine vessels, and rail systems
🔹 Backup power and stationary fuel cell energy systems
🔹 Industrial hydrogen supply — metal processing, chemicals, electronics, and more
🔹 Hydrogen demonstration projects and commercial hydrogen refueling stations
With outstanding efficiency, scalable architecture, and industrial durability, Fueiceel® AS30b is the ideal core component for the transition from pilot-scale to fully commercialized green hydrogen production.
Fueiceel® AS30b = High Efficiency × High Power × Low Operating Cost × Engineering Reliability
By combining mature AEM technology, industrial-grade hardware, and modular scalability, the AS30b pushes hydrogen energy beyond laboratory environments — enabling real-world deployment, commercial viability, and sustainable long-term hydrogen production.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
💎 Fueiceel® AEM Water Electrolysis Stack & System · Specifications & Price Table
| Model | Power | H₂ Production Rate | Price (USD) | Lead Time |
|---|---|---|---|---|
| AS2a | 2 kW | 500 L/h | $22500 | 4 weeks |
| AS2b | 2 kW | 500 L/h | $9980 | 4 weeks |
| AS30b | 30 kW | 7500 L/h | $96600 | 4 weeks |
