A High-Stability, Electrochemical-Grade Pt/Ti Electrode Substrate Solution
In high-voltage and highly corrosive electrochemical systems, the long-term stability of the electrode substrate often defines the overall lifetime, efficiency, and operational reliability of the device.

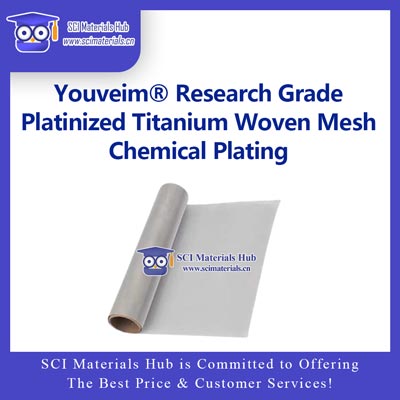

Youveim® Platinized Titanium Mesh (Chemical Plating) is specifically engineered for such demanding environments, offering a robust, electrochemical-grade Pt/Ti composite material widely used in water electrolysis, fuel cells, electrodeposition, and electrocatalysis research.
Youveim® Platinized Titanium Mesh is manufactured using >99.9% high-purity woven titanium mesh as the substrate. A platinum layer is deposited via Chemical Plating, followed by optional vacuum thermal reduction or hydrogen thermal reduction to further enhance coating stability and service life.
This product combines the excellent corrosion resistance of titanium with the superior electrochemical durability of platinum, making it particularly suitable for high-potential anode environments and long-term continuous operation.
Material: High-purity titanium (>99.9%, equivalent to TA1)
Weaving patterns:
Plain weave: 5–100 mesh
Twill weave: 100–200 mesh
Dutch weave: 200–600 mesh
Wire diameter: 0.05 – 0.5 mm
Thickness: 0.1 – 1.0 mm
Standard sizes: 5 × 5 cm / 10 × 10 cm / 20 × 20 cm (custom sizes available)
The high-purity titanium substrate provides:
Extremely low risk of impurity ion release
Outstanding resistance to acids and alkaline electrolytes
Excellent mechanical strength and processability
These properties ensure a stable and reliable foundation for the platinum coating.
Compared with conventional electroplating, chemical platinum plating offers several advantages:
Uniform coating thickness across complex mesh geometries
Excellent coverage inside mesh openings
No external current required, eliminating over-plating or shadow effects
Strong adhesion between platinum and titanium substrate
Platinum loading: 0.1 – 2.0 mg/cm² (based on physical surface area)
Post-treatment options:
Vacuum thermal reduction
Hydrogen thermal reduction
Thermal reduction treatment further:
Improves platinum crystallinity
Reduces interfacial contact resistance
Significantly enhances electrochemical stability under high potential conditions
Platinum exhibits excellent resistance to dissolution and passivation in both acidic and alkaline systems, making this material ideal for high-voltage, strongly oxidizing environments.
Compatible with:
Concentrated KOH electrolytes
Strong acidic media such as H₂SO₄
Electrolytes containing halides or other aggressive species
The woven mesh architecture provides high porosity, enabling:
Rapid gas evolution and release
Uniform electrolyte wetting
Stable maintenance of electrochemical reaction interfaces
The titanium substrate offers long service life, and the platinum layer can be refurbished or re-plated for multi-cycle use.
| Application Area | Function |
|---|---|
| Water Electrolysis (PEM / Alkaline) | High-stability anode or cathode substrate |
| Electrocatalysis Research | HER / OER working or counter electrodes |
| Fuel Cells | Current collector or catalyst support |
| Electrodeposition | Inert anode for high-potential processes |
| Electrochemical Synthesis | Long-life electrodes with minimal side reactions |
| Highly Corrosive Industrial Environments | Structural supports in electrochemical reactors |
Pre-use cleaning:
Ultrasonic cleaning with deionized water or ethanol is recommended to remove surface contaminants.
Avoid mechanical abrasion:
Prevent scratching or impact that may locally damage the platinum layer.
Long-term operation:
Periodic performance evaluation is recommended to determine whether re-treatment or re-plating is required.
📦 Standard specifications available from stock
⏱️ Custom coating lead time: 3–5 working days
🛠️ Secondary processing available: laser cutting, rolling, spot welding, perforation
📄 Material inspection reports and usage guidelines provided
🧾 VAT invoice support available
Youveim® Platinized Titanium Mesh (Chemical Plating) is a high-reliability Pt/Ti electrode material designed for advanced electrochemical applications where stability, lifetime, and consistency are critical—especially in demanding anode environments.
For platinum loading optimization, cost-performance balancing, or sample evaluation support, please feel free to contact us.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our ebay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Mesh Type | Aperture (mm) | Wire Diameter (mm) | Thickness (mm) |
|---|---|---|---|
| 10 Mesh, Plain Weave | 2.0 | 0.50 | 1.0 |
| 20 Mesh, Plain Weave | 1.0 | 0.30 | 0.70 |
| 30 Mesh, Plain Weave | 0.60 | 0.25 | 0.41 |
| 40 Mesh, Plain Weave | 0.44 | 0.20 | 0.33 |
| 50 Mesh, Plain Weave | 0.33 | 0.15 | 0.30 |
| 60 Mesh, Plain Weave | 0.27 | 0.15 | 0.41 |
| 80 Mesh, Plain Weave | 0.20 | 0.10 | 0.23 |
| 100 Mesh, Plain Weave | 0.15 | 0.10 | 0.25 |
| 120 Mesh, Twill Weave | 0.10 | 0.10 | 0.27 |
| 150 Mesh, Twill Weave | 0.10 | 0.06 | 0.13 |
| 200 Mesh, Twill Weave | 0.07 | 0.05 | 0.15 |
| 200 Mesh, Dutch Weave | 0.75 | 0.28 × 0.25 | 0.85 |
| 300 Mesh, Dutch Weave | 0.07 | 0.18 × 0.25 | 0.61 |
| 600 Mesh, Dutch Weave | 0.04 | 0.07 × 0.11 | 0.35 |
| Pt Loading (mg/cm²) | 5 × 5 cm | 10 × 10 cm | 20 × 20 cm |
|---|---|---|---|
| 0.1 | 40 | 120 | 360 |
| 0.2 | 50 | 140 | 400 |
| 0.5 | 60 | 160 | 500 |
| 1.0 | 100 | 240 | 800 |
| 2.0 | 120 | 360 | 1200 |
| Pt Loading (mg/cm²) | 5 × 5 cm | 10 × 10 cm | 20 × 20 cm |
|---|---|---|---|
| 0.1 | 60 | 160 | 500 |
| 0.2 | 80 | 240 | 800 |
| 0.5 | 100 | 360 | 1200 |
| 1.0 | 120 | 440 | 1400 |
| 2.0 | 140 | 500 | 1600 |
Platinum loading is based on physical surface area (mg/cm²)
Platinum coating via electroless plating, followed by vacuum or hydrogen thermal reduction
Prices exclude shipping, taxes, and customs duties
Other mesh sizes, weaving styles, Pt loadings, and dimensions are available upon request
