Advanced Hydrophilic Titanium-Based Porous Transport Layer (PTL) Solution

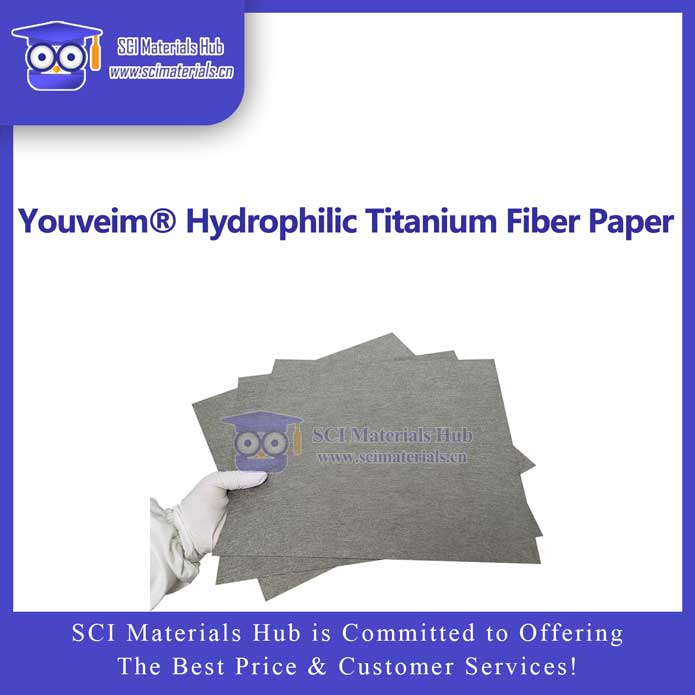

Youveim® Hydrophilic Titanium Fiber Paper (Titanium Felt) is a high-performance titanium-based porous transport layer (PTL) designed for PEM water electrolysis, AEM electrolyzers, CO₂ electrolysis, and advanced electrochemical systems.
In modern electrochemical applications such as water splitting, CO₂ reduction, redox flow batteries, and electrocatalysis, the porous transport layer (PTL) plays a critical role beyond simple electron conduction and mechanical support. It directly governs:
With the development of high-current-density electrolysis systems, conventional diffusion layers are no longer sufficient for long-term stable operation. In particular, the anode side (OER) of PEM electrolyzers requires a PTL with:
Youveim® Hydrophilic Titanium Fiber Paper is fabricated via a 3D sintered high-purity titanium fiber network combined with a proprietary surface hydrophilic activation treatment. This design integrates the intrinsic stability of titanium with enhanced fluid management capability, making it a key material for next-generation electrochemical systems.
The anode of PEM electrolyzers operates under highly oxidative conditions:
Under such harsh conditions, the PTL must not only resist corrosion but also ensure continuous and uniform electrolyte transport to the catalyst layer.
While conventional titanium fiber paper already offers excellent corrosion resistance, its naturally formed oxide surface can limit wettability and slow electrolyte penetration.
Youveim® Hydrophilic Titanium Fiber Paper significantly enhances surface energy and wettability through advanced surface engineering, enabling rapid electrolyte infiltration into the 3D porous network.
This results in:
| Feature | Advantage |
|---|---|
| High-purity sintered titanium fibers | Continuous and stable conductive network |
| Proprietary hydrophilic surface treatment | Rapid electrolyte wetting and spreading |
| 3D interconnected porous structure | Enhanced gas–liquid transport |
| Excellent corrosion resistance | Long-term stability in harsh oxidative environments |
| High mechanical strength | Maintains structure under compression |
| High porosity design | Reduced mass transport resistance |
| Catalyst compatibility | Suitable for Pt, Ir, Ru-based systems |
| Customizable design | Thickness, porosity, and dimensions available |
| Model | Thickness (mm) | Porosity | Fiber Length | Fiber Diameter |
|---|---|---|---|---|
| TF010LH | 0.10 | 50–60% | 35 mm | 25–50 μm |
| TF020LH | 0.20 | 50–60% | 35 mm | 25–50 μm |
| TF025LH | 0.25 | 50–60% | 35 mm | 25–50 μm |
| TF030LH | 0.30 | 50–60% | 35 mm | 25–50 μm |
| TF040MH | 0.40 | 55–65% | 35 mm | 25–50 μm |
| TF050MH | 0.50 | 60–70% | 35 mm | 25–50 μm |
| TF060MH | 0.60 | 60–70% | 35 mm | 25–50 μm |
| TF080MH | 0.80 | 65–75% | 35 mm | 25–50 μm |
| TF100MH | 1.00 | 65–75% | 35 mm | 25–50 μm |
| TF120HH | 1.20 | 70–80% | 35 mm | 25–50 μm |
| TF150HH | 1.50 | 70–80% | 35 mm | 25–50 μm |
| Model | Thickness (mm) | Porosity | Fiber Length | Fiber Diameter |
|---|---|---|---|---|
| TIFP025MH | 0.25 | 60–70% | 70 mm | 25–50 μm |
| TIFP040MH | 0.40 | 60–70% | 70 mm | 25–50 μm |
| TIFP060MH | 0.60 | 60–70% | 70 mm | 25–50 μm |
| TIFP080MH | 0.80 | 60–70% | 70 mm | 25–50 μm |
| Porosity | Characteristics | Recommended Applications |
|---|---|---|
| 50–60% | Strong electrolyte retention | Small lab-scale electrolyzers |
| 55–65% | Balanced performance | Standard research applications |
| 60–70% | Excellent gas diffusion | High current density systems |
| 70–80% | Ultra-low mass transport resistance | Industrial-scale electrolyzers |
| Property | 35 mm Fibers | 70 mm Fibers |
|---|---|---|
| Flatness | ★★★★★ | ★★★★☆ |
| Flexibility | ★★★★★ | ★★★☆☆ |
| Conductive continuity | ★★★★☆ | ★★★★★ |
| Mechanical strength | ★★★★☆ | ★★★★★ |
| Large-area scalability | ★★★☆☆ | ★★★★★ |
| Industrial suitability | ★★★☆☆ | ★★★★★ |
Recommendation:
| Reaction System | Typical Catalysts |
|---|---|
| OER | IrO₂, RuO₂ |
| HER | Pt/C, Pt black |
| AEM electrolysis | NiFeOx |
| CO₂ reduction | Ag, Au, Cu |
| Seawater electrolysis | IrRuOx |
Compatible deposition methods:
DI water ultrasonic cleaning → Ethanol ultrasonic cleaning → Drying at 80°C
This improves catalyst adhesion and restores optimal wettability.
| System | Compression Ratio |
|---|---|
| PEM electrolyzer | 10–25% |
| AEM electrolyzer | 10–20% |
| CO₂ electrolyzer | 5–15% |
Q1: What is the difference between hydrophilic and standard titanium fiber paper?
Hydrophilic versions undergo surface activation to enhance wettability and interfacial fluid management, especially under high current density operation.
Q2: Can it replace carbon paper?
Yes. It is a preferred alternative for PEM electrolyzer anodes.
Q3: Can it be used for CO₂ electrolysis?
Yes. Its conductivity, porosity, and stability make it suitable as a gas diffusion and support layer.
Q4: Is catalyst pre-coating available?
Yes. IrO₂, RuO₂, Pt, Ag, NiFeOx coatings can be customized.
Q5: Can custom sizes be produced?
Yes. Circular, square, and irregular shapes up to 500 × 500 mm or larger.
SCI Materials Hub provides high-quality Youveim® Hydrophilic Titanium Fiber Paper and full electrochemical system solutions:
A next-generation titanium-based porous transport layer that combines exceptional corrosion resistance with advanced fluid management capability, enabling more efficient, stable, and scalable electrochemical systems for hydrogen production, CO₂ conversion, and advanced energy research.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Product Code | Thickness (mm) | Porosity | Fiber Length | Fiber Diameter | 5 × 5 cm (USD) | 10 × 10 cm (USD) | 20 × 20 cm (USD) | Lead Time |
|---|---|---|---|---|---|---|---|---|
| TF010LH | 0.10 | 50–60% | 35 mm | 25–50 μm | $18 | $60 | $220 | In stock |
| TF020LH | 0.20 | 50–60% | 35 mm | 25–50 μm | $21 | $72 | $285 | In stock |
| TF025LH | 0.25 | 50–60% | 35 mm | 25–50 μm | $24 | $80 | $300 | In stock |
| TF030LH | 0.30 | 50–60% | 35 mm | 25–50 μm | $24 | $80 | $300 | In stock |
| TF040MH | 0.40 | 55–65% | 35 mm | 25–50 μm | $30 | $90 | $340 | In stock |
| TF050MH | 0.50 | 60–70% | 35 mm | 25–50 μm | $35 | $135 | $435 | In stock |
| TF060MH | 0.60 | 60–70% | 35 mm | 25–50 μm | $38 | $150 | $460 | In stock |
| TF080MH | 0.80 | 65–75% | 35 mm | 25–50 μm | $48 | $162 | $520 | In stock |
| TF100MH | 1.00 | 65–75% | 35 mm | 25–50 μm | $66 | $228 | $870 | In stock |
| TF120HH | 1.20 | 70–80% | 35 mm | 25–50 μm | $78 | $276 | $1050 | In stock |
| TF150HH | 1.50 | 70–80% | 35 mm | 25–50 μm | $96 | $345 | $1290 | In stock |
| Product Code | Thickness (mm) | Porosity | Fiber Length | Fiber Diameter | 5 × 5 cm (USD) | 10 × 10 cm (USD) | 20 × 20 cm (USD) | Lead Time |
|---|---|---|---|---|---|---|---|---|
| TIFP025MH | 0.25 | 60–70% | 70 mm | 25–50 μm | $24 | $80 | $300 | In stock |
| TIFP040MH | 0.40 | 60–70% | 70 mm | 25–50 μm | $30 | $90 | $340 | In stock |
| TIFP060MH | 0.60 | 60–70% | 70 mm | 25–50 μm | $34 | $130 | $460 | In stock |
| TIFP080MH | 0.80 | 60–70% | 70 mm | 25–50 μm | $40 | $140 | $520 | In stock |
