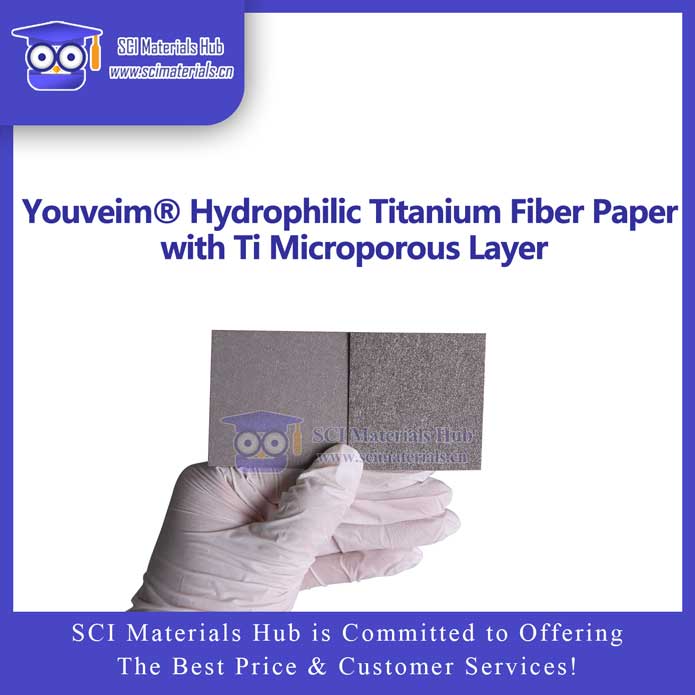

Youveim® Hydrophilic Microporous-Layer Titanium Fiber Paper (Titanium Felt)

Double-Sided Hydrophilicity · MPL Interface Engineering · An Advanced Diffusion Layer for High-Performance Water Electrolysis

As water electrolysis technologies such as PEMWE and AEMWE continue to evolve toward higher current densities, longer lifetimes, and greater operational stability, diffusion layer materials are no longer evaluated solely on corrosion resistance and electrical conductivity. Instead, gas–liquid management, interfacial wettability, and long-term performance consistency have become decisive factors.

Youveim® Hydrophilic Microporous-Layer Titanium Fiber Paper (Titanium Felt with MPL) addresses these challenges through a comprehensive interface-engineering approach. Built upon conventional titanium fiber paper, it integrates a single-side sintered titanium powder microporous layer (MPL) and further applies double-sided hydrophilic surface engineering, achieving a fundamental upgrade from structural stability to controlled electrochemical interfaces.

This material is especially well suited for high-performance water electrolysis research and device validation, particularly on the anodic side.

Product Architecture and Core Design

Three-Layer Synergistic Structure

Titanium Fiber Skeleton Layer
A three-dimensional sintered titanium fiber network providing:

• High electrical conductivity

• Mechanical robustness

• Excellent corrosion resistance

Microporous Layer (MPL, single side)

• Titanium powder coating followed by high-temperature sintering

• Forms a continuous and mechanically stable pore-regulation layer

Double-Sided Hydrophilic Surface Engineering

• Hydrophilic treatment applied to both the MPL side and the back titanium fiber side

• Ensures consistent wettability across the entire thickness

Key Parameters

• Thickness: 0.4 mm

• Total porosity: ~30%

Why Double-Sided Hydrophilicity Matters

The Limitation of Single-Sided Wettability

In practical electrolyzer operation, a diffusion layer interacts with multiple functional interfaces:

• One side contacts the catalyst layer / electrode

• The opposite side interfaces with the current collector, flow field, or electrolyte inlet

If only one side is hydrophilic, the system may suffer from:

• Delayed wetting on the back side

• Non-uniform liquid distribution

• Local dry spots or gas accumulation

Youveim® solves this by adopting a double-sided hydrophilic design, significantly improving overall fluid-management consistency.

Practical Benefits of Double-Sided Hydrophilicity

✔ Rapid electrolyte spreading from either direction
Whether electrolyte enters from the flow-field side or the electrode side, it quickly wets the entire diffusion layer structure.

✔ Reduced sensitivity to assembly orientation
The diffusion layer does not require strict front–back distinction during assembly, reducing human error and improving experimental reproducibility.

✔ More stable gas–liquid interface control
Gas bubbles detach more easily while liquid is continuously replenished, lowering local concentration polarization.

✔ Better compatibility with bipolar plates and high-pressure operation
Uniform wetting is maintained even under fluctuating pressure and current density conditions.

Microporous Layer + Double-Sided Hydrophilicity: A Stable Interface Strategy

Enhanced Interfacial Stability

• The MPL partially fills large pores within the fiber structure

• Reduces uncontrolled “through-plane flooding”

• Double-sided hydrophilicity ensures uniform liquid distribution across the full thickness

Result:
A more stable reaction interface with reduced polarization fluctuations.

Optimized Electrical Contact and Current Distribution

• Sintered titanium powder and fiber substrate form a continuous metallic network

• Double-sided wetting minimizes local contact resistance

• Current density distribution becomes more uniform

This is particularly beneficial for high-precision electrochemical characterization and durability testing.

Hierarchical Pore Architecture (~30% Porosity)

• Microporous layer: hundreds of nanometers to a few micrometers

• Fiber skeleton layer: tens of micrometers

With double-sided hydrophilicity:

• The MPL does not form “dry blockage”

• The fiber layer avoids gas-lock phenomena

This structure maintains effective gas–liquid balance under medium to high current density operation.

Catalyst Loading and Long-Term Stability Advantages

• Smoother MPL surface enables uniform and continuous catalyst distribution

• Double-sided hydrophilicity keeps the catalyst layer consistently wetted

• Reduces risks of catalyst migration, agglomeration, and delamination

Compatible catalyst systems include:
IrO₂, RuO₂, Pt, and Pt black

Comparison with Alternative Materials

vs. Conventional Titanium Fiber Paper

• Lower porosity with stronger interfacial stability

• Double-sided hydrophilicity ensures more uniform wetting

• Better suited for high-performance and long-duration testing

vs. Carbon Paper with MPL

• Titanium substrate does not oxidize or carbonize

• Maintains stability in strongly oxidative OER environments

• Better aligned with PEMWE and AEMWE engineering requirements

Handling and Usage Recommendations

Installation Orientation

• MPL side is recommended to face the catalyst layer

• Double-sided hydrophilicity provides high tolerance to assembly orientation

Catalyst Deposition

• Spray catalyst ink onto the MPL surface

• Dry at 60–80 °C

• Optional sintering at 350–450 °C to enhance adhesion

Cleaning and Storage

• Ultrasonic cleaning in DI water or ethanol

• Dry and store in sealed conditions

• Avoid exposure to HF or strong acids

Technical Specifications

Conclusion

Youveim® Hydrophilic Microporous-Layer Titanium Fiber Paper (Titanium Felt) achieves a decisive performance upgrade through the combination of:

• Microporous-layer structural engineering

• Double-sided hydrophilic surface control

This results in:

• More stable electrochemical interfaces

• More uniform wetting and mass transport

• Higher experimental reproducibility and assembly tolerance

It is not merely an incremental improvement over conventional titanium felt, but a purpose-designed functional material for next-generation high-current-density water electrolysis research and validation.

🌍 International Orders & Shipping

📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751

🔗 Place quick orders on our eBay / Amazon / Alibaba stores

🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.

💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay

💰 Youveim® Hydrophilic Microporous-Layer Titanium Fiber Paper (Titanium Felt)

Notes

• Prices above refer to standard double-sided hydrophilic treatment

• Enhanced (super-hydrophilic) or single-side hydrophilic versions are available upon request

• Custom sizes and specifications can be provided

• Suitable for PEMWE / AEMWE anode diffusion layer applications
