A High-Stability Three-Dimensional Conductive Substrate for Electrochemical and Energy Devices
In water electrolysis, fuel cells, and energy storage devices, the wettability, electrical stability, and long-term corrosion resistance of electrode substrates often determine the ultimate performance limits of the system. To address demanding operating conditions such as high current density, long-duration operation, and strongly alkaline environments, Youveim® introduces Hydrophilic Nickel Fiber Paper (Nickel Felt)—a reliable three-dimensional conductive substrate for research-scale and pilot-scale electrochemical systems.

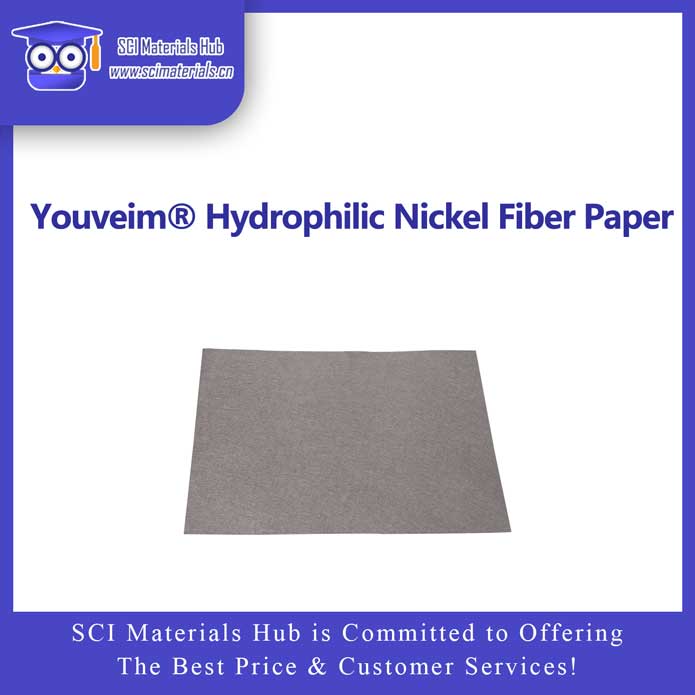

Youveim® Hydrophilic Nickel Fiber Paper is a porous metallic material fabricated by sintering high-purity nickel fibers. Through advanced surface hydrophilization, the material exhibits double-sided hydrophilic characteristics, significantly improving electrolyte wetting and gas–liquid transport while maintaining the inherent high electrical conductivity and mechanical strength of nickel.
Its continuously interconnected three-dimensional porous network combines high specific surface area, high porosity, and good flexibility, making it a stable platform for use as an electrode substrate, current collector, or catalyst support in a wide range of electrochemical and new-energy applications.
Compared with conventional nickel fiber paper, the hydrophilic version delivers clear advantages in electrochemical environments:
Electrolyte rapidly and uniformly penetrates the internal pore network, effectively preventing localized dry zones or gas blockage.
Improved electrode–electrolyte contact helps lower ohmic resistance and concentration polarization.
Especially well suited for alkaline water electrolysis and AEM electrolyzers operating under high load.
Facilitates rapid gas bubble detachment, minimizing active-site shielding caused by gas accumulation.
A continuous nickel fiber network provides stable, low-resistance pathways for electron transport.
Excellent resistance to compression and bending, enabling long-term electrochemical cycling and assembly stress tolerance.
Maintains structural integrity and electrical performance in alkaline electrolytes and various electrochemical environments.
Supports high catalyst loading and enhances reaction kinetics.
Easy to cut, press, and form, compatible with diverse electrode and device designs.
Alkaline water electrolysis (HER / OER) cathode and anode substrates
Conductive frameworks for AEM electrolyzers
Electrode supports for high current density operation
Electrode substrates for alkaline fuel cells
Supercapacitor electrodes with enhanced power and rate performance
Current collectors for lithium-ion and emerging energy storage systems
Supports for noble-metal and transition-metal catalysts
Three-dimensional frameworks for electrocatalytic reactions
Platforms for high-sensitivity electrochemical sensors
Research on porous functional electrode architectures
| Product Code | Nominal Thickness | Thickness Range | Areal Density | Porosity | Density Type | Lead Time |
|---|---|---|---|---|---|---|
| NFP25HH | 0.25 mm | 0.20–0.25 mm | 580 g/m² | 70–80% | Low density / high permeability | 1 day |
| NFP25LH | 0.25 mm | 0.25–0.28 mm | 950 g/m² | ~60% | High density / low permeability | 1 day |
| NFP30MH | 0.30 mm | 0.29–0.31 mm | 850 g/m² | ~70% | Medium–high density / permeable | 1 day |
| NFP40HH | 0.40 mm | 0.40–0.42 mm | 950 g/m² | 70–80% | Medium density / low permeability | 1 day |
Custom sizes and hydrophilicity levels are available upon request.
Ultrasonic cleaning in anhydrous ethanol or deionized water for 5–10 minutes
Dry at 60–80 °C for ≥2 hours or under vacuum
Avoid aggressive mechanical rubbing to prevent fiber damage
Store sealed, dry, and dust-free
Recommended environment: 5–30 °C, humidity < 60% RH
Avoid heavy pressure, excessive bending, and prolonged air exposure
Youveim® Hydrophilic Nickel Fiber Paper is compatible with various electrode manufacturing methods, including:
Catalyst spraying or ultrasonic spraying
Impregnation loading
Electrodeposition and chemical deposition
Binder systems such as PTFE, PVDF, and Nafion®
Its stable three-dimensional framework and hydrophilic surface significantly enhance coating uniformity and adhesion reliability.
Youveim® Hydrophilic Nickel Fiber Paper (Nickel Felt) is not designed merely to maximize catalytic activity. Instead, it focuses on electrical stability, interface compatibility, and electrochemical durability, making it particularly suitable for electrochemical and energy systems that demand high operational stability and reproducibility.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
💰 Youveim® Hydrophilic Nickel Fiber Paper (Nickel Felt) – Price List (USD)
| Product Code | Thickness | Areal Density (g/m²) | Porosity | Fiber Density / Light Transmittance | 5 × 5 cm | 10 × 10 cm | 20 × 20 cm | Lead Time |
|---|---|---|---|---|---|---|---|---|
| NFP25HH | 0.25 mm | 580 | 70–80% | Low density / High transmittance | $40 | $120 | $360 | 1 day |
| NFP25MH | 0.25 mm | 800 | 60–70% | Low density / High transmittance | $40 | $120 | $360 | 1 day |
| NFP30MH | 0.30 mm | 850 | ~70% | Relatively high density / Transmittant | $40 | $120 | $360 | 1 day |
| NFP40HH | 0.40 mm | 950 | 70–80% | Medium density / Low transmittance | $40 | $120 | $360 | 1 day |
Notes
Prices are for standard hydrophilic treatment.
For enhanced hydrophilicity, custom sizes, or bulk orders, please contact us for a quotation.
Lead time indicates preparation before shipment (ex-stock items).
