High Corrosion Resistance · Stable Hydrophilic Surface · Functional Metal Interface Materials

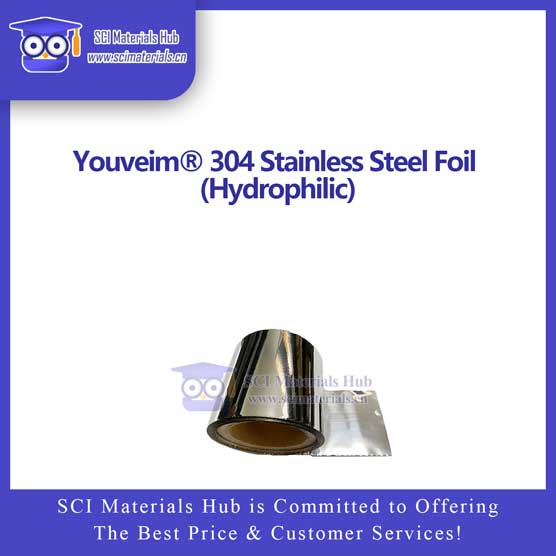

Youveim® Hydrophilic Stainless Steel Foils are advanced functional metal materials engineered from high-quality 304 and 316L austenitic stainless steel foils, combined with Youveim®’s proprietary non-coating hydrophilic surface modification technology.
Without introducing organic coatings or fragile surface films, this process delivers a uniform, stable, and controllable hydrophilic surface while preserving the intrinsic mechanical strength, corrosion resistance, and electrical conductivity of stainless steel. The result is a reliable metal interface material for electrochemical systems, fluid management, filtration, and functional surface engineering.
Hydrophilic treatment options include:
Single-side hydrophilic / single-side native stainless steel
Double-side hydrophilic treatment
Fully or locally patterned hydrophilic areas
| Property | Youveim® 304 Hydrophilic SS Foil | Youveim® 316L Hydrophilic SS Foil |
|---|---|---|
| Base Material | Austenitic stainless steel | Mo-alloyed austenitic stainless steel |
| Mo Content | None | ~2–3% (enhanced chloride resistance) |
| Corrosion Resistance | Good (general environments) | Excellent (acidic, chloride-rich, marine) |
| Carbon Content | Standard | Ultra-low (ideal for welding & long-term stability) |
| Electrochemical Stability | Moderate | Superior (oxidative & acidic systems) |
| Typical Thickness Range | 0.01 – 3.0 mm | 0.01 – 3.0 mm |
| Recommended Applications | General-purpose functional substrates | PEM electrolysis, aggressive electrochemical environments |
No polymer or oxide coatings
No risk of delamination or peeling
Maintains metal integrity and conductivity
Low contact angle
Rapid liquid spreading and infiltration
Reduced bubble adhesion and liquid stagnation
No significant corrosion, pitting, or grain boundary damage
Retains original mechanical strength and ductility
Compatible with water, electrolytes, and polar solvents
Resistant to repeated wet–dry cycles
Stable under conventional electrochemical operating conditions
Hydrophilicity can be refreshed via mild cleaning if needed
💧 Excellent wettability for efficient liquid transport and distribution
⚙ High mechanical stability for cutting, stacking, welding, and lamination
🔌 Good electrical conductivity for current collection and interfacial contact
🧪 Wide chemical compatibility across aqueous and electrochemical systems
🔁 Reusable and durable for long-term experimental or industrial use
Electrolyzer flow fields and auxiliary current collectors
Electrode interface wetting optimization layers
Gas–liquid distribution and separation components
Microfluidic liquid guiding structures
Condensate spreading and drainage surfaces
Anti-droplet and anti-fog metal substrates
Metal support layers for membranes
Uniform liquid penetration and distribution structures
Metal–liquid interface engineering
Anti-film-breakage and wetting-control components
Youveim® stainless steel foils can further support electrochemical or catalytic coatings, including:
Au (Gold): Enhanced conductivity and oxidation resistance
Pt (Platinum): High catalytic activity for electrochemical reactions
IrOx / IrRuOx: High-performance OER catalysts for PEM water electrolysis
PtIrRuOx: Advanced multi-metal catalytic layers for demanding environments
Coating composition, loading, and treated area are fully customizable.
Hydrophilic stainless steel surfaces possess high surface energy, which may gradually decrease when exposed to air due to surface rearrangement and adsorption of airborne organic contaminants. This is a universal physical phenomenon of hydrophilic materials and not a defect.
Recommendations:
Store in clean, dry, sealed packaging
Avoid contact with oils, silicones, and organic contaminants
If needed, restore wettability by rinsing with DI water or alcohol
Avoid abrasive or aggressive chemical cleaning
Youveim® Hydrophilic 304 & 316L Stainless Steel Foils combine robust metal performance with engineered surface wettability, offering a versatile platform for electrochemical, fluidic, and functional interface applications. With flexible hydrophilic configurations, optional catalytic coatings, and scalable customization, these materials bridge the gap between fundamental research and industrial deployment.
📩 Custom sizes, thicknesses, surface treatments, and batch supply are available upon request.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
High corrosion resistance · Stable hydrophilic surface · Functional metal foil
| Product Code | Specification | Single-side Hydrophilic | Double-side Hydrophilic | Lead Time |
|---|---|---|---|---|
| 0.01 mm × 100 mm | USD 20 / m | USD 30 / m | 1 day | |
| 0.02 mm × 110 mm | USD 20 / m | USD 30 / m | 1 day |
Prices are based on per meter length
Standard hydrophilic treatment is non-coating, non-peeling surface modification
Custom width, length, single-side or double-side hydrophilic areas are available upon request
Bulk orders and project-based pricing supported
