Powering scientific innovation and enabling next-generation zinc energy technologies.
In aqueous batteries, electrochemical systems, and functional interface engineering, the purity, surface state, and interfacial wettability of zinc metal play a decisive role in electrochemical reversibility, dendrite behavior, corrosion resistance, and long-term cycling stability.
To address both intrinsic material performance and electrolyte–electrode interfacial challenges, Youveim® offers two complementary zinc foil solutions:
Youveim® High-Purity Zinc Foil — focused on material purity, conductivity, and structural stability
Youveim® Hydrophilic Zinc Foil — focused on wettability control and interfacial mass-transfer optimization
Together, they provide a flexible and scalable zinc platform for cutting-edge research and battery engineering.
Youveim® High-Purity Zinc Foil is manufactured from ultra-high-purity zinc (≥99.99%), with trace impurities strictly controlled. Designed specifically for scientific research and electrochemical energy applications, it delivers excellent electrical conductivity, corrosion resistance, and mechanical processability.
This material is widely used in zinc-ion batteries, zinc–air batteries, zinc–manganese systems, electrochemical testing, electrode development, and corrosion-resistant structures.
| Feature | Description |
|---|---|
| 🔬 Ultra-high purity | Zn ≥ 99.99%, minimal impurities ensure experimental reproducibility |
| ⚡ Excellent conductivity | Low resistivity, suitable for high-rate and high-power electrochemical tests |
| 🧪 Strong chemical stability | Good resistance in acidic, alkaline, and saline electrolytes |
| 🛠 Easy to process | Can be cut, welded, punched, drilled, and shaped |
| 🔁 High ductility | Easily bent, folded, and laminated for stacked, wound, or flexible designs |
| 📏 Customizable dimensions | Typical thickness: 0.01–1.0 mm; width ≤ 300 mm; custom shapes supported |
| Category | Parameter | Value / Range | Unit | Method |
|---|---|---|---|---|
| Physical | Purity | ≥99.99 | wt% | ICP-MS |
| Density | 7.14 | g/cm³ | GB/T 3075 | |
| Surface | Finish | Bright / Matte / With backing film | — | — |
| Electrical | Conductivity | 1.7 × 10⁷ | S/m | GB/T 1599 |
| Mechanical | Ductility | Excellent | — | Practical testing |
| Chemical | Acid / alkali resistance | Good | — | Immersion tests |
| Customization | Thickness | 0.01–10 | mm | Customizable |
| Width | 50–300 | mm | Customizable |
🔋 Zinc-based batteries
Zinc–air, zinc–ion, zinc–manganese, zinc–silver, zinc–iodine systems
Compatible with liquid and gel electrolytes
🧪 Electrochemical research
Working, counter, or reference electrodes for CV, EIS, plating/stripping studies
⚙ Electronic and functional films
Conductive layers, EMI shielding, flexible electronic components
🛡 Corrosion protection & alloy preparation
Galvanizing layers, anti-corrosion coatings, brass and zinc alloy fabrication
🔬 Nanomaterials & education
ZnO nanostructure synthesis, electrochemical exfoliation, teaching experiments

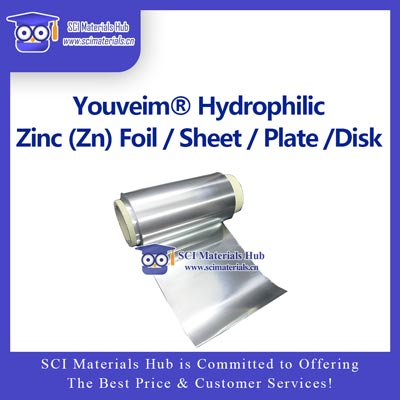

Youveim® Hydrophilic Zinc Foil is developed by applying a non-coating hydrophilic surface modification to high-purity zinc foil. This process enhances surface energy and wettability without introducing polymer coatings or foreign layers.
The result is a zinc surface that enables rapid electrolyte spreading, uniform ion flux, reduced gas bubble adhesion, and improved zinc deposition behavior, while preserving the intrinsic conductivity and electrochemical activity of zinc.
This product is particularly suited for aqueous zinc batteries and interfacial engineering research.
Significantly reduced contact angle for fast electrolyte wetting
Non-coating process, eliminating delamination or blocking risks
Improved Zn²⁺ transport uniformity, helping suppress dendrites
Enhanced cycling stability in aqueous battery systems
Customizable wettability design: single-side, double-side, or patterned hydrophilic areas
🔋 Aqueous zinc batteries
Zinc anodes with improved electrolyte contact and deposition uniformity
🧪 Electrochemical interface studies
Wettability-controlled zinc surfaces for mechanistic research
💧 Electrolyte and mass-transfer optimization
Reduced bubble accumulation and localized polarization
🧫 Advanced interfacial coatings & membranes
As a hydrophilic metal support layer
| Aspect | High-Purity Zinc Foil | Hydrophilic Zinc Foil |
|---|---|---|
| Design focus | Intrinsic material performance | Wettability & interface regulation |
| Zinc purity | ≥99.99% | Same high-purity substrate |
| Surface property | Native zinc surface | Stable hydrophilic surface |
| Electrolyte wetting | Moderate | Excellent, rapid spreading |
| Coating involved | No | No (non-coating modification) |
| Typical use | General zinc anodes, structure | Aqueous batteries, interface studies |
| Customization | Size & thickness | Size + wettability regions |
Focus on material purity and versatility → Choose Youveim® High-Purity Zinc Foil
Sensitive to electrolyte contact and deposition behavior → Choose Youveim® Hydrophilic Zinc Foil
Aqueous zinc batteries & dendrite research → Hydrophilic Zinc Foil is strongly recommended
General electrochemical testing & alloy preparation → High-Purity Zinc Foil is sufficient
Youveim® provides comprehensive zinc material services, including:
Custom cutting (sheets, discs, patterned shapes)
Research-scale samples and bulk supply
Support for universities, research institutes, and industrial R&D
Standard lengths: 1 m, 2 m, 5 m, 10 m
Appearance: silver-white metallic luster
Special sizes and large-volume orders available upon request
High-purity zinc foils are widely used in state-of-the-art aqueous zinc battery research, including dendrite suppression, interfacial chemistry regulation, and electrolyte engineering:
Joule (2022): High-voltage and stable zinc–air battery enabled by dual-hydrophobic-induced proton shuttle shielding
ACS Nano (2022): Interfacial chemistry modulation via amphoteric glycine for highly reversible zinc anodes
ACS Nano (2023): High-energy and long-lived Zn–MnO₂ batteries with engineered interfaces
Nature Communications (2023): Advanced aqueous zinc-ion battery interface engineering
Proceedings of SPIE (2022): Dendrite-free and corrosion-suppressive metallic Zn anodes
ACS Applied Materials & Interfaces (2025): Multifunctional polymer-derived layers for ultra-durable zinc systems
For samples, technical support, or customized specifications, please contact:
WeChat Official Account: SCI-Materials-Hub
Email: contact@scimaterials.cn
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon / Alibaba stores.
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
📑 Youveim® Hydrophilic Zinc Foil / Sheet / Plate - Price List
| Thickness × Width | 10 cm (USD) | 1 m (USD) | Lead Time |
|---|---|---|---|
| 0.01 mm × 100 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 40 (one-side hydrophilic), 60 (double-sides hydrophilic) | 1 day |
| 0.015 mm × 100 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 40 (one-side hydrophilic), 60 (double-sides hydrophilic) | 1 day |
| 0.04 mm × 120 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 40 (one-side hydrophilic), 60 (double-sides hydrophilic) | 1 day |
| 0.05 mm × 120 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 40 (one-side hydrophilic), 60 (double-sides hydrophilic) | 1 day |
| 0.06 mm × 100 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 40 (one-side hydrophilic), 60 (double-sides hydrophilic) | In Stock |
| 0.07 mm × 100 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 40 (one-side hydrophilic), 60 (double-sides hydrophilic) | In Stock |
| 0.08 mm × 100 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 40 (one-side hydrophilic), 60 (double-sides hydrophilic) | In Stock |
| 0.1 mm × 100 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 40 (one-side hydrophilic), 60 (double-sides hydrophilic) | In Stock |
| 0.1 mm × 150 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 40 (one-side hydrophilic), 60 (double-sides hydrophilic) | 1 day |
| 0.2 mm × 100 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 40 (one-side hydrophilic), 60 (double-sides hydrophilic) | 1 day |
| 0.3 mm × 150 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 40 (one-side hydrophilic), 60 (double-sides hydrophilic) | In Stock |
| 0.4 mm × 150 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 50 (one-side hydrophilic), 70 (double-sides hydrophilic) | In Stock |
| 0.5 mm × 150 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 70 (one-side hydrophilic), 90 (double-sides hydrophilic) | In Stock |
| 0.8 mm × 150 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 70 (one-side hydrophilic), 90 (double-sides hydrophilic) | In Stock |
| 1.0 mm × 150 mm | 20 (one-side hydrophilic), 30 (double-sides hydrophilic) | 70 (one-side hydrophilic), 90 (double-sides hydrophilic) | In Stock |
| 2.0 mm × 100 mm | 50 (one-side hydrophilic), 70 (double-sides hydrophilic) | – | In Stock |
| 3.0 mm × 100 mm | 60 (one-side hydrophilic), 80 (double-sides hydrophilic) | – | In Stock |
| 4.0 mm × 100 mm | 60 (one-side hydrophilic), 80 (double-sides hydrophilic) | – | In Stock |
| 5.0 mm × 100 mm | 80 (one-side hydrophilic), 100 (double-sides hydrophilic) | – | In Stock |
