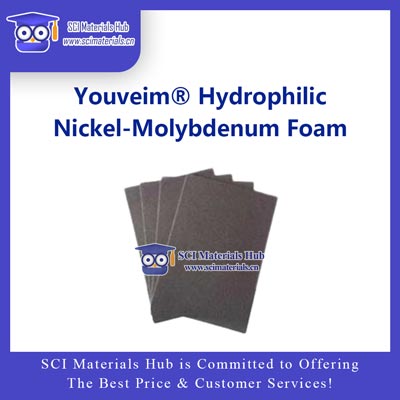

Youveim® NiMo Foam is a high-performance hydrogen evolution reaction (HER) electrode specifically designed for alkaline water electrolysis (ALK) systems.
It is fabricated using high-porosity nickel foam as a three-dimensional conductive scaffold, combined with a nickel–molybdenum (Ni–Mo) synergistic alloy active layer deposited via a continuous electrodeposition process.
This design delivers:
Large electrochemically active surface area
Abundant catalytic active sites
Excellent HER activity in alkaline media
Long-term operational stability
High reproducibility and scalability
Building on this foundation, Youveim® Hydrophilic NiMo Foam introduces an additional surface hydrophilization treatment, further improving electrolyte wettability, interfacial charge transfer, and gas–liquid mass transport—making it especially suitable for high current density and industrial-scale electrolysis applications.
Both products are engineered to bridge laboratory research and industrial deployment, supporting scalable hydrogen production.
Porosity ≥ 90%, PPI range: 50–130
Open-cell ratio ≥ 95%
Efficient electrolyte penetration and rapid gas release
The highly interconnected porous network ensures fast hydrogen bubble detachment and minimizes mass-transport limitations.
Ni sites facilitate water molecule dissociation (Volmer step)
Mo sites optimize H* adsorption/desorption
Alloying tailors surface electronic structure, lowering HER energy barriers
This synergistic effect enables significantly enhanced HER kinetics compared with pure nickel electrodes.
Uniform and strongly adhered NiMo active layer
Precisely controlled alloy composition
Excellent batch-to-batch consistency
Binder-free, no high-temperature hydrogen reduction required
The process is highly compatible with large-area manufacturing and industrial scaling.
Low hydrogen evolution overpotential
Stable operation under high current densities
Minimal performance degradation during prolonged electrolysis
The robust integration of the NiMo layer with the nickel foam substrate ensures excellent mechanical and electrochemical durability.
Compared with standard NiMo foam, the hydrophilic version offers:
Faster electrolyte wetting
More uniform reaction interfaces
Reduced interfacial resistance
Improved stability under high current and dynamic operating conditions
This makes it particularly advantageous for industrial ALK electrolyzers.
| Parameter | Youveim® NiMo Foam | Youveim® Hydrophilic NiMo Foam |
|---|---|---|
| Substrate | High-purity nickel foam | High-purity nickel foam |
| Active Layer | Ni–Mo alloy | Ni–Mo alloy (hydrophilic surface) |
| Fabrication Process | Continuous electrodeposition | Continuous electrodeposition + hydrophilization |
| Standard Sizes | 5×5 / 10×10 / 20×20 cm | 5×5 / 10×10 / 20×20 cm |
| Thickness | 1.0 – 4.0 mm | 1.0 – 4.0 mm |
| Porosity | ≥ 90% | ≥ 90% |
| PPI (pores per inch) | 50 – 130 | 50 – 130 |
| Open-Cell Ratio | ≥ 95% | ≥ 95% |
| Areal Density | 200 – 600 g/m² | 200 – 600 g/m² |
| Surface Wettability | Standard | High hydrophilicity |
| HER Performance | Low overpotential | Lower overpotential, improved stability |
| Typical Application | R&D / Engineering | Industrial / High-current operation |
| Customization | Size, thickness, PPI | Size, thickness, PPI |
Alkaline water electrolysis (ALK) cathodes
High-current-density HER studies
Engineering-scale electrode development and testing
Nickel-based porous electrode research
Electrochemical energy conversion and storage systems
High Activity: Rough porous surface and NiMo synergy provide abundant catalytic sites
High Stability: Strong bonding between NiMo layer and nickel foam ensures long service life
High Consistency: Continuous electrodeposition guarantees uniform structure and performance
Engineering-Ready: Customizable dimensions and scalable manufacturing support industrial deployment
Youveim® NiMo Foam and Youveim® Hydrophilic NiMo Foam together form a robust, high-performance electrode platform for alkaline water electrolysis hydrogen production.
While the standard NiMo foam is well suited for research and engineering validation, the hydrophilic version delivers enhanced interfacial performance and stability, making it the preferred choice for high-current-density and long-term industrial operation.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon stores
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Product Code | Thickness (mm) | Pore Size (μm) | Porosity (%) | Areal Density (g/m²) | 5 × 5 cm (USD) | 10 × 10 cm (USD) | 20 × 20 cm (USD) | 20 × 30 cm (USD) | Lead Time |
|---|---|---|---|---|---|---|---|---|---|
| 0.3 | ~230 | 95 | 360 | $20 | $60 | $180 | $250 | 3 days | |
| 0.5 | ~230 | 95 | 360 | $20 | $60 | $180 | $250 | 3 days | |
| 0.8 | ~230 | 95 | 360 | $20 | $60 | $180 | $250 | 3 days | |
| 1.0 | ~230 | 95 | 360 | $20 | $60 | $180 | $250 | 3 days | |
| 1.5 | ~230 | 95 | 360 | $20 | $60 | $180 | $250 | 3 days | |
| 1.7 | ~230 | 95 | 360 | $20 | $60 | $180 | $250 | 3 days |
Prices are for single-piece reference
Bulk orders and customized sizes available upon request
