Ultra-Lightweight · 3D Interconnected Structure · Interface-Enhanced Multifunctional Metallic Foam

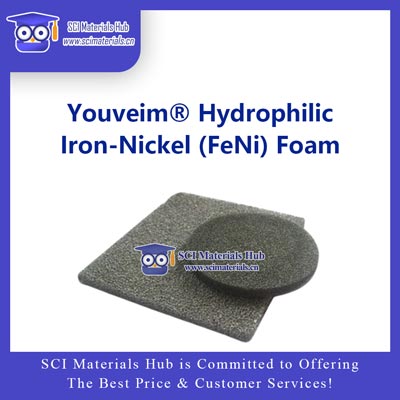

Youveim® Iron–Nickel (Fe–Ni) Foam is an advanced porous metallic material featuring a continuous Fe–Ni alloy skeleton with a fully three-dimensional interconnected pore network.
Compared with conventional dense metals or sintered porous materials, Fe–Ni foam combines:
Metallic electrical and thermal conductivity
Structural integrity and mechanical stability
Extremely low density, high porosity, and ultra-large specific surface area
all within a single material system.
Building upon this structure, Youveim® Hydrophilic Fe–Ni Foam is produced via surface functionalization, transforming the metallic surface into a stable hydrophilic state. This significantly enhances liquid wettability, fluid distribution uniformity, and interfacial mass-transfer efficiency, making it especially suitable for liquid-phase, electrochemical, and multiphase reaction systems.
The apparent density of Fe–Ni foam is only 0.2–0.3 g/cm³, achieving extreme lightweight performance:
~1/4 the density of water
~1/3 that of wood
~1/10 that of aluminum
~1/30 that of iron
Despite the low density, the 3D metallic framework provides reliable mechanical support and functional load-bearing capability.
The open-cell porous structure effectively dissipates acoustic energy over a wide frequency range, delivering excellent sound absorption and noise reduction performance.
Through composite design or surface modification, enhanced noise blocking and sound insulation can be achieved for applications in construction, industrial equipment, and transportation systems.
Thanks to the inherent electrical conductivity of Fe–Ni alloys, the foam structure can achieve EMI shielding effectiveness of approximately 90 dB at relatively small thicknesses, making it well suited for EMI/EMC protection applications.
Unlike polymer foams, Fe–Ni foam exhibits:
Good thermal conductivity (> 3 W/(m²·K))
Structural stability at elevated temperatures
Non-flammability and excellent fire resistance
These properties make it suitable for high-temperature and safety-critical environments.
The uniform 3D interconnected pore network provides:
Stable gas and liquid transport pathways
Low flow resistance
Excellent filtration and mass-transfer performance
The hydrophilic Fe–Ni foam further enhances liquid infiltration and distribution efficiency, especially under dynamic flow conditions.
Compared with standard Fe–Ni foam, the hydrophilic variant offers clear benefits in liquid-phase environments:
Rapid and complete wetting of the entire foam framework
More uniform distribution of electrolytes or reactants
Reduced interfacial mass-transfer resistance
Improved reaction efficiency and operational stability
As a result, hydrophilic Fe–Ni foam is particularly advantageous for water electrolysis, battery electrodes, liquid-phase catalysis, and mass-transfer reactors.
🧱 Damping floors and vibration-absorbing structures
🧩 Functional substrates and structural supports
🛡 Electromagnetic shielding materials
🧹 Filtration and porous media systems
🎨 Decorative and structural integrated materials
📦 High-end cushioning and protective packaging
🔋 Electrochemical, battery, and energy system components
Youveim® Fe–Ni Foam vs. Youveim® Hydrophilic Fe–Ni Foam
| Parameter | Fe–Ni Foam | Hydrophilic Fe–Ni Foam |
|---|---|---|
| Material Composition | Fe–Ni alloy | Fe–Ni alloy (hydrophilic surface modification) |
| Thickness Range | 0.5 – 25 mm | 0.5 – 25 mm |
| Pore Size Range | 0.1 – 10 mm | 0.1 – 10 mm |
| Porosity | 60 – 98% | 60 – 98% |
| PPI (pores per inch) | 5 – 130 | 5 – 130 |
| Apparent Density | 0.1 – 0.8 g/cm³ | 0.1 – 0.8 g/cm³ |
| Compressive Strength | ≥ 250 kPa | ≥ 250 kPa |
| Thermal Conductivity | > 3 W/(m²·K) | > 3 W/(m²·K) |
| Surface Wettability | Standard metallic surface | Highly hydrophilic, rapid wetting |
| Fluid Distribution | Moderate | Significantly enhanced |
| Processability | Cutting, bending, bonding | Same as left |
| Recyclability | 100% recyclable | 100% recyclable |
| Standard Sizes | 5×5 cm, 10×10 cm, 20×30 cm | |
| Fe:Ni Mass Ratio | 1:9 to 9:1 (customizable) | |
Youveim® Fe–Ni foam and hydrophilic Fe–Ni foam are professionally packaged to minimize mechanical damage and environmental impact during transportation and storage, ensuring the materials maintain their original structure and performance upon delivery.
With its ultra-lightweight nature, high porosity, and multifunctional physical properties, Youveim® Iron–Nickel (Fe–Ni) Foam is an ideal material choice for structural engineering, acoustics, EMI shielding, and filtration applications.
The hydrophilic Fe–Ni foam, enhanced through interfacial wettability modification, further extends its applicability in electrochemical systems, liquid-phase reactions, and mass-transfer processes.
Together, they form a comprehensive, high-performance metallic foam solution for both structural and functional material applications.
📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751
🔗 Place quick orders on our eBay / Amazon stores
🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.
💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay
| Product Code | Thickness | Description | Areal Density (g/m²) | Pore Size (µm) | Unit Price (USD) | Lead Time |
|---|---|---|---|---|---|---|
| 1.0 mm | (80% Fe + 20% Ni) | ~1600 | ~250 | $20 (5×5 cm) $60 (10×10 cm) $180 (20×20 cm) | In stock | |
| (60% Fe + 40% Ni) | ~1200 | ~250 | $30 (5×5 cm) $90 (10×10 cm) $210 (20×20 cm) | In stock | ||
| (50% Fe + 50% Ni) | ~1200 | ~250 | $30 (5×5 cm) $90 (10×10 cm) $210 (20×20 cm) | In stock | ||
| (40% Fe + 60% Ni) | ~1800 | ~250 | $30 (5×5 cm) $90 (10×10 cm) $210 (20×20 cm) | In stock | ||
| (30% Fe + 70% Ni) | ~1200 | ~250 | $30 (5×5 cm) $90 (10×10 cm) $210 (20×20 cm) | In stock | ||
| (10% Fe + 90% Ni) | ~1200 | ~250 | $40 (5×5 cm) $120 (10×10 cm) $250 (20×20 cm) | In stock | ||
| 2.0 mm | (80% Fe + 20% Ni) | ~1600 | ~250 | $20 (5×5 cm) $60 (10×10 cm) $180 (20×20 cm) | In stock | |
| (60% Fe + 40% Ni) | ~1200 | ~250 | $30 (5×5 cm) $90 (10×10 cm) $210 (20×20 cm) | In stock | ||
| (50% Fe + 50% Ni) | ~1200 | ~250 | $30 (5×5 cm) $90 (10×10 cm) $210 (20×20 cm) | In stock | ||
| (40% Fe + 60% Ni) | ~1800 | ~250 | $30 (5×5 cm) $90 (10×10 cm) $210 (20×20 cm) | In stock | ||
| (30% Fe + 70% Ni) | ~1200 | ~250 | $30 (5×5 cm) $90 (10×10 cm) $210 (20×20 cm) | In stock | ||
| (10% Fe + 90% Ni) | ~1200 | ~250 | $40 (5×5 cm) $120 (10×10 cm) $250 (20×20 cm) | In stock |
Thickness: 2.0 mm (standard)
Standard sizes: 5×5 cm / 10×10 cm / 20×20 cm
Custom Fe:Ni ratio, size, thickness, and pore structure available upon request
Prices are for material samples / small-batch orders
Partial references citing our materials (from Google Scholar)
Carbon Dioxide Reduction
1. ACS Nano Strain Relaxation in Metal Alloy Catalysts Steers the Product Selectivity of Electrocatalytic CO2 Reduction
The bipolar membrane (Fumasep FBM) in this paper was purchased from SCI Materials Hub, which was used in rechargeable Zn-CO2 battery tests. The authors reported a strain relaxation strategy to determine lattice strains in bimetal MNi alloys (M = Pd, Ag, and Au) and realized an outstanding CO2-to-CO Faradaic efficiency of 96.6% with outstanding activity and durability toward a Zn-CO2 battery.
2. Front. Chem. Boosting Electrochemical Carbon Dioxide Reduction on Atomically Dispersed Nickel Catalyst
In this paper, Vulcan XC-72R was purchased from SCI Materials Hub. Vulcan XC 72R carbon is the most common catalyst support used in the anode and cathode electrodes of Polymer Electrolyte Membrane Fuel Cells (PEMFC), Direct Methanol Fuel Cells (DMFC), Alkaline Fuel Cells (AFC), Microbial Fuel Cells (MFC), Phosphoric Acid Fuel Cells (PAFC), and many more!
3. Adv. Mater. Partially Nitrided Ni Nanoclusters Achieve Energy-Efficient Electrocatalytic CO2 Reduction to CO at Ultralow Overpotential
An AEM membrane (Sustainion X37-50 Grade RT, purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.
4. Adv. Funct. Mater. Nanoconfined Molecular Catalysts in Integrated Gas Diffusion Electrodes for High-Current-Density CO2 Electroreduction
In this paper (Supporting Information), an anion exchanged membrane (Fumasep FAB-PK-130 obtained from SCI Materials Hub (www.scimaterials.cn)) was used to separate the catholyte and anolyte chambers.
SCI Materials Hub: we also recommend our Fumasep FAB-PK-75 for the use in a flow cell.
5. Appl. Catal. B Efficient utilization of nickel single atoms for CO2 electroreduction by constructing 3D interconnected nitrogen-doped carbon tube network
In this paper, the Nafion 117 membrane was obtained from SCI Materials Hub.
In this paper, Proton exchange membrane (Nafion 117), Nafion D520, and Toray 060 carbon paper were purchased from SCI Materials Hub.
7. National Science Review Confinement of ionomer for electrocatalytic CO2 reduction reaction via efficient mass transfer pathways
An anion exchange membrane (PiperION-A15-HCO3) was obtained from SCI Materials Hub.
8. Catalysis Communications Facilitating CO2 electroreduction to C2H4 through facile regulating {100} & {111} grain boundary of Cu2O
Carbon paper (TGPH060), membrane solution (Nafion D520), and ionic membrane (Nafion N117) were obtained from Wuhu Eryi Material Technology Co., Ltd (a company under SCI Materials Hub).
Batteries
1. J. Mater. Chem. A Blocking polysulfides with a Janus Fe3C/N-CNF@RGO electrode via physiochemical confinement and catalytic conversion for high-performance lithium–sulfur batteries
Graphene oxide (GO) in this paper was obtained from SCI Materials Hub. The authors introduced a Janus Fe3C/N-CNF@RGO electrode consisting of 1D Fe3C decorated N-doped carbon nanofibers (Fe3C/N-CNFs) side and 2D reduced graphene oxide (RGO) side as the free-standing carrier of Li2S6 catholyte to improve the overall electrochemical performance of Li-S batteries.
This paper used more than 10 kinds of materials from SCI Materials Hub and the authors gave detailed properity comparsion.
The commercial IEMs of Fumasep FAB-PK-130 and Nafion N117 were obtained from SCI Materials Hub.
Gas diffusion layers of GDL340 (CeTech) and SGL39BC (Sigracet) and Nafion dispersion (Nafion D520) were obtained from SCI Materials Hub.
Zn foil (100 mm thickness) and Zn powder were obtained from the SCI Materials Hub.
Commercial 20% Pt/C, 40% Pt/C and IrO2 catalysts were also obtained from SCI Materials Hub.
3. Journal of Energy Chemistry Vanadium oxide nanospheres encapsulated in N-doped carbon nanofibers with morphology and defect dual-engineering toward advanced aqueous zinc-ion batteries
In this paper, carbon cloth (W0S1011) was obtained from SCI Materials Hub. The flexible carbon cloth matrix guaranteed the stabilization of the electrode and improved the conductivity of the cathode.
4. Energy Storage Materials Defect-abundant commercializable 3D carbon papers for fabricating composite Li anode with high loading and long life
The 3D carbon paper (TGPH060 raw paper) were purchased from SCI Materials Hub.
5. Nanomaterials A Stable Rechargeable Aqueous Zn–Air Battery Enabled by Heterogeneous MoS2 Cathode Catalysts
Nafion D520 (5 wt%), and carbon paper (GDL340) were received from SCI-Materials-Hub.
Carbon cloth (W0S1011) and other electrochemical consumables required for air cathode were provided by SCI Materials Hub.
Oxygen Reduction Reaction
1. J. Chem. Eng. Superior Efficiency Hydrogen Peroxide Production in Acidic Media through Epoxy Group Adjacent to Co-O/C Active Centers on Carbon Black
In this paper, Vulcan XC 72 carbon black, ion membrane (Nafion N115, 127 μL), Nafion solution (D520, 5 wt%), and carbon paper (AvCarb GDS 2230 and Spectracarb 2050A-1050) were purchased from SCI Materials Hub.
2. Journal of Colloid and Interface Science Gaining insight into the impact of electronic property and interface electrostatic field on ORR kinetics in alloy engineering via theoretical prognostication and experimental validation
The 20 wt% Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) were purchased from SCI Materials Hub. This work places emphasis on the kinetics of the ORR concerning Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) catalysts, and integrates theoretical prognostication and experimental validation to illuminate the fundamental principles of alloy engineering.
Water Electrolysis
1. International Journal of Hydrogen Energy Gold as an efficient hydrogen isotope separation catalyst in proton exchange membrane water electrolysis
The cathodic catalysts of Pt/C (20 wt%, 2–3 nm) and Au/C (20 wt%, 4–5 nm) were purchased from SCI Materials Hub.
2. Small Science Silver Compositing Boosts Water Electrolysis Activity and Durability of RuO2 in a Proton-Exchange-Membrane Water Electrolyzer
Two fiber felts (0.35 mm thickness, SCI Materials Hub) were used as the porous transport layers at both the cathode and the anode.
3. Advanced Functional Materials Hierarchical Crystalline/Amorphous Heterostructure MoNi/NiMoOx for Electrochemical Hydrogen Evolution with Industry-Level Activity and Stability
Anion-exchange membrane (FAA-3-PK-130) was obtained from SCI Materials Hub website.
Fuel Cells
1. Polymer Sub-two-micron ultrathin proton exchange membrane with reinforced mechanical strength
Gas diffusion electrode (60% Pt/C, Carbon paper) was purchased from SCI Materials Hub.
Characterization
1. Chemical Engineering Journal Electrochemical reconstitution of Prussian blue analogue for coupling furfural electro-oxidation with photo-assisted hydrogen evolution reaction
An Au nanoparticle film was deposited on the total reflecting plane of a single reflection ATR crystal (SCI Materials Hub, Wuhu, China) via sputter coater.
|
