🧲 Youveim® Nickel–Cobalt Foam & Hydrophilic Nickel–Cobalt Foam

Highly Conductive 3D Porous Ni–Co Alloy Scaffolds for Electrochemical Applications

In electrochemical energy, storage, and electrocatalytic systems, the electrical conductivity, pore architecture, and interfacial wettability of electrode materials play a decisive role in reaction kinetics and long-term operational stability.

The Youveim® Nickel–Cobalt Foam series is based on a three-dimensional porous Ni–Co alloy metallic framework, combining high electrical conductivity with excellent structural robustness. Both standard and hydrophilic-enhanced versions are available, addressing the needs of fundamental research as well as scalable engineering applications.

1. Product Overview

🔹 Youveim® Nickel–Cobalt Foam

Youveim® Nickel–Cobalt Foam is a three-dimensional porous metallic material composed of a Ni–Co alloy, featuring:

• High porosity with low fluid flow resistance

• Continuous and highly conductive network

• Good mechanical strength and structural integrity

It serves as an ideal scaffold material for electrocatalysis, electrodeposition, and multifunctional electrode architectures.

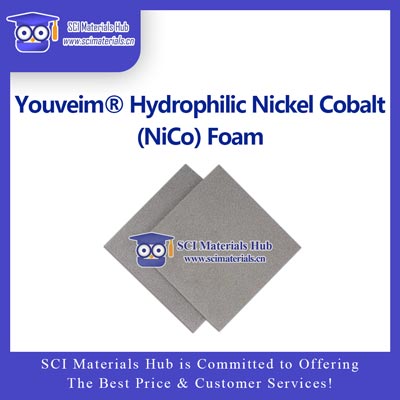

🔹 Youveim® Hydrophilic Nickel–Cobalt Foam

Building on conventional Ni–Co foam, a surface hydrophilic treatment is applied to significantly enhance wettability in aqueous and electrolyte systems, enabling:

• Rapid electrolyte penetration into the 3D pore network

• Reduced gas bubble accumulation and interfacial polarization

• Improved electrochemical stability under high current densities

This version is particularly suitable for water electrolysis and electrocatalytic systems with stringent mass transport requirements.

2. Structural and Performance Features

1️⃣ High-Porosity, Interconnected 3D Structure

• Porosity up to 95–98%

• Uniform pore size of approximately 230 μm

• Fully interconnected pore channels facilitating gas release and reactant transport

This architecture significantly increases the real surface area and effective electrochemical reaction interfaces.

2️⃣ Nickel–Cobalt Alloy Conductive Framework

• Nickel provides a stable and continuous conductive backbone

• Cobalt contributes to interfacial electrochemical activity modulation

• Alloy structure balances conductivity, mechanical strength, and durability

Suitable for loading active materials or functioning directly as self-supported electrodes.

3️⃣ Hydrophilic Interface Advantage (Hydrophilic Version)

• Significantly improved surface wettability compared to conventional metal foams

• Faster and more uniform electrolyte infiltration

• Reduced mass transport resistance and polarization losses

Ensures enhanced stability during long-term continuous operation.

3. Key Specifications Comparison

4. Typical Applications

⚡ Alkaline water electrolysis and electrocatalytic electrode scaffolds

🔋 Energy storage and rechargeable battery electrode supports

🧪 Supports for Ni–Co-based electrocatalysts

🧲 Electrodeposition and electrochemical functionalization studies

🏭 Engineering-grade porous metal materials

5. Key Advantages Summary

• High porosity and connectivity for enhanced reaction efficiency and mass transport

• Alloy-based conductive framework enabling stable operation under high current densities

• Optional hydrophilic surface for aqueous and interface-sensitive applications

• Excellent engineering consistency, suitable for scale-up and industrial deployment

Youveim® Nickel–Cobalt Foam and Hydrophilic Nickel–Cobalt Foam provide reliable, high-performance three-dimensional porous metallic solutions for advanced electrochemical and energy systems—combining performance, durability, and scalability.

🌍 International Orders & Shipping

📧 Email: contact@scimaterials.cn
📞 WhatsApp & Tel: +86 153-7569-8751

🔗 Place quick orders on our eBay / Amazon stores

🌐 We ship worldwide via DHL, FedEx, UPS, SF-Express, or other requested carriers.
📦 Bulk quantities with discount available upon request.

💳 Payment methods accepted: Bank Wire Transfer, PayPal, Credit Card (via Taobao), Alipay, WeChat Pay

💠 Youveim® Nickel–Cobalt Foam

Partial references citing our materials (from Google Scholar)

Carbon Dioxide Reduction

1. ACS Nano Strain Relaxation in Metal Alloy Catalysts Steers the Product Selectivity of Electrocatalytic CO₂ Reduction

The bipolar membrane (Fumasep FBM) in this paper was purchased from SCI Materials Hub, which was used in rechargeable Zn-CO₂ battery tests. The authors reported a strain relaxation strategy to determine lattice strains in bimetal MNi alloys (M = Pd, Ag, and Au) and realized an outstanding CO₂-to-CO Faradaic efficiency of 96.6% with outstanding activity and durability toward a Zn-CO₂ battery.

2. Front. Chem. Boosting Electrochemical Carbon Dioxide Reduction on Atomically Dispersed Nickel Catalyst

In this paper, Vulcan XC-72R was purchased from SCI Materials Hub. Vulcan XC 72R carbon is the most common catalyst support used in the anode and cathode electrodes of Polymer Electrolyte Membrane Fuel Cells (PEMFC), Direct Methanol Fuel Cells (DMFC), Alkaline Fuel Cells (AFC), Microbial Fuel Cells (MFC), Phosphoric Acid Fuel Cells (PAFC), and many more!

3. Adv. Mater. Partially Nitrided Ni Nanoclusters Achieve Energy-Efficient Electrocatalytic CO₂ Reduction to CO at Ultralow Overpotential

An AEM membrane (Sustainion X37-50 Grade RT, purchased from SCI Materials Hub) was activated in 1 M KOH for 24 h, washed with ultra-purity water prior to use.

4. Adv. Funct. Mater. Nanoconfined Molecular Catalysts in Integrated Gas Diffusion Electrodes for High-Current-Density CO₂ Electroreduction

In this paper (Supporting Information), an anion exchanged membrane (Fumasep FAB-PK-130 obtained from SCI Materials Hub (www.scimaterials.cn)) was used to separate the catholyte and anolyte chambers.

SCI Materials Hub: we also recommend our Fumasep FAB-PK-75 for the use in a flow cell.

5. Appl. Catal. B Efficient utilization of nickel single atoms for CO₂ electroreduction by constructing 3D interconnected nitrogen-doped carbon tube network

In this paper, the Nafion 117 membrane was obtained from SCI Materials Hub.

6. Vacuum Modulable Cu(0)/Cu(I)/Cu(II) sites of Cu/C catalysts derived from MOF for highly selective CO₂ electroreduction to hydrocarbons

In this paper, Proton exchange membrane (Nafion 117), Nafion D520, and Toray 060 carbon paper were purchased from SCI Materials Hub.

7. National Science Review Confinement of ionomer for electrocatalytic CO2 reduction reaction via efficient mass transfer pathways

An anion exchange membrane (PiperION-A15-HCO3) was obtained from SCI Materials Hub.

8. Catalysis Communications Facilitating CO2 electroreduction to C2H4 through facile regulating {100} & {111} grain boundary of Cu2O

Carbon paper (TGPH060), membrane solution (Nafion D520), and ionic membrane (Nafion N117) were obtained from Wuhu Eryi Material Technology Co., Ltd (a company under SCI Materials Hub).

Batteries

1. J. Mater. Chem. A Blocking polysulfides with a Janus Fe3C/N-CNF@RGO electrode via physiochemical confinement and catalytic conversion for high-performance lithium–sulfur batteries

Graphene oxide (GO) in this paper was obtained from SCI Materials Hub. The authors introduced a Janus Fe3C/N-CNF@RGO electrode consisting of 1D Fe3C decorated N-doped carbon nanofibers (Fe3C/N-CNFs) side and 2D reduced graphene oxide (RGO) side as the free-standing carrier of Li2S6 catholyte to improve the overall electrochemical performance of Li-S batteries.

2. Joule A high-voltage and stable zinc-air battery enabled by dual-hydrophobic-induced proton shuttle shielding

This paper used more than 10 kinds of materials from SCI Materials Hub and the authors gave detailed properity comparsion.

The commercial IEMs of Fumasep FAB-PK-130 and Nafion N117 were obtained from SCI Materials Hub.

Gas diffusion layers of GDL340 (CeTech) and SGL39BC (Sigracet) and Nafion dispersion (Nafion D520) were obtained from SCI Materials Hub.

Zn foil (100 mm thickness) and Zn powder were obtained from the SCI Materials Hub.

Commercial 20% Pt/C, 40% Pt/C and IrO2 catalysts were also obtained from SCI Materials Hub.

3. Journal of Energy Chemistry Vanadium oxide nanospheres encapsulated in N-doped carbon nanofibers with morphology and defect dual-engineering toward advanced aqueous zinc-ion batteries

In this paper, carbon cloth (W0S1011) was obtained from SCI Materials Hub. The flexible carbon cloth matrix guaranteed the stabilization of the electrode and improved the conductivity of the cathode.

4. Energy Storage Materials Defect-abundant commercializable 3D carbon papers for fabricating composite Li anode with high loading and long life

The 3D carbon paper (TGPH060 raw paper) were purchased from SCI Materials Hub.

5. Nanomaterials A Stable Rechargeable Aqueous Zn–Air Battery Enabled by Heterogeneous MoS2 Cathode Catalysts

Nafion D520 (5 wt%), and carbon paper (GDL340) were received from SCI-Materials-Hub.

6. SSRN An Axially Directed Cobalt-Phthalocyanine Covalent Organic Polymer as High-Efficient Bifunctional Catalyst for Zn-Air Battery

Carbon cloth (W0S1011) and other electrochemical consumables required for air cathode were provided by SCI Materials Hub.

Oxygen Reduction Reaction

1. J. Chem. Eng. Superior Efficiency Hydrogen Peroxide Production in Acidic Media through Epoxy Group Adjacent to Co-O/C Active Centers on Carbon Black

In this paper, Vulcan XC 72 carbon black, ion membrane (Nafion N115, 127 μL), Nafion solution (D520, 5 wt%), and carbon paper (AvCarb GDS 2230 and Spectracarb 2050A-1050) were purchased from SCI Materials Hub.

2. Journal of Colloid and Interface Science Gaining insight into the impact of electronic property and interface electrostatic field on ORR kinetics in alloy engineering via theoretical prognostication and experimental validation

The 20 wt% Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) were purchased from SCI Materials Hub. This work places emphasis on the kinetics of the ORR concerning Pt3M (M = Cr, Co, Cu, Pd, Sn, and Ir) catalysts, and integrates theoretical prognostication and experimental validation to illuminate the fundamental principles of alloy engineering.

Water Electrolysis

1. International Journal of Hydrogen Energy Gold as an efficient hydrogen isotope separation catalyst in proton exchange membrane water electrolysis

The cathodic catalysts of Pt/C (20 wt%, 2–3 nm) and Au/C (20 wt%, 4–5 nm) were purchased from SCI Materials Hub.

2. Small Science Silver Compositing Boosts Water Electrolysis Activity and Durability of RuO2 in a Proton-Exchange-Membrane Water Electrolyzer

Two fiber felts (0.35 mm thickness, SCI Materials Hub) were used as the porous transport layers at both the cathode and the anode.

3. Advanced Functional Materials Hierarchical Crystalline/Amorphous Heterostructure MoNi/NiMoOx for Electrochemical Hydrogen Evolution with Industry-Level Activity and Stability

Anion-exchange membrane (FAA-3-PK-130) was obtained from SCI Materials Hub website.

Fuel Cells

1. Polymer Sub-two-micron ultrathin proton exchange membrane with reinforced mechanical strength

Gas diffusion electrode (60% Pt/C, Carbon paper) was purchased from SCI Materials Hub.

Characterization

1. Chemical Engineering Journal Electrochemical reconstitution of Prussian blue analogue for coupling furfural electro-oxidation with photo-assisted hydrogen evolution reaction

An Au nanoparticle film was deposited on the total reflecting plane of a single reflection ATR crystal (SCI Materials Hub, Wuhu, China) via sputter coater.
